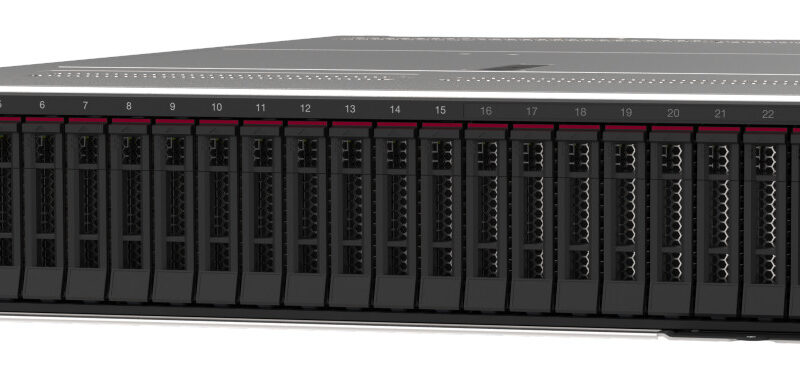

Enterprise Scalability Meets High-Frequency Computing

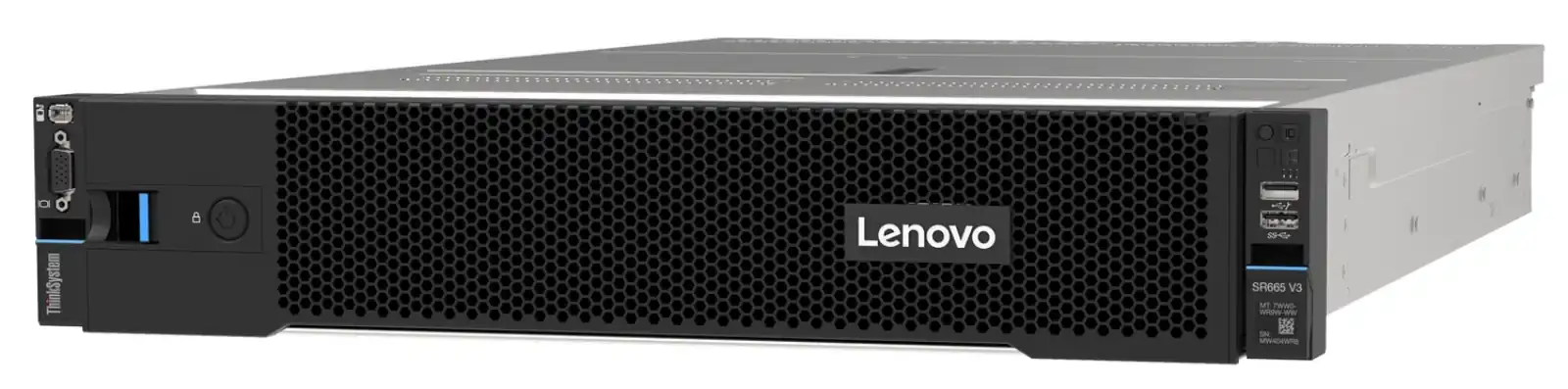

The Lenovo ThinkSystem SR665 V3 (SKU: 7D9AA01QEA) is a 2-socket 2U rack server designed to provide the ultimate in performance and flexibility. Driven by the AMD EPYC™ 9174F processor, it is optimized for workloads that demand high clock speeds and massive cache sizes. From AI training to high-density virtualisation, the SR665 V3 provides the future-proof infrastructure required by modern South African data centres.
Key Features & Professional Benefits
- AMD EPYC 9174F Processor: 16-core high-frequency processor with a 4.4GHz boost and 256MB L3 cache for elite compute performance.
- TruDDR5 Memory Technology: 32GB of ECC DDR5 memory, supporting AMD’s 12-channel architecture for massive memory bandwidth.

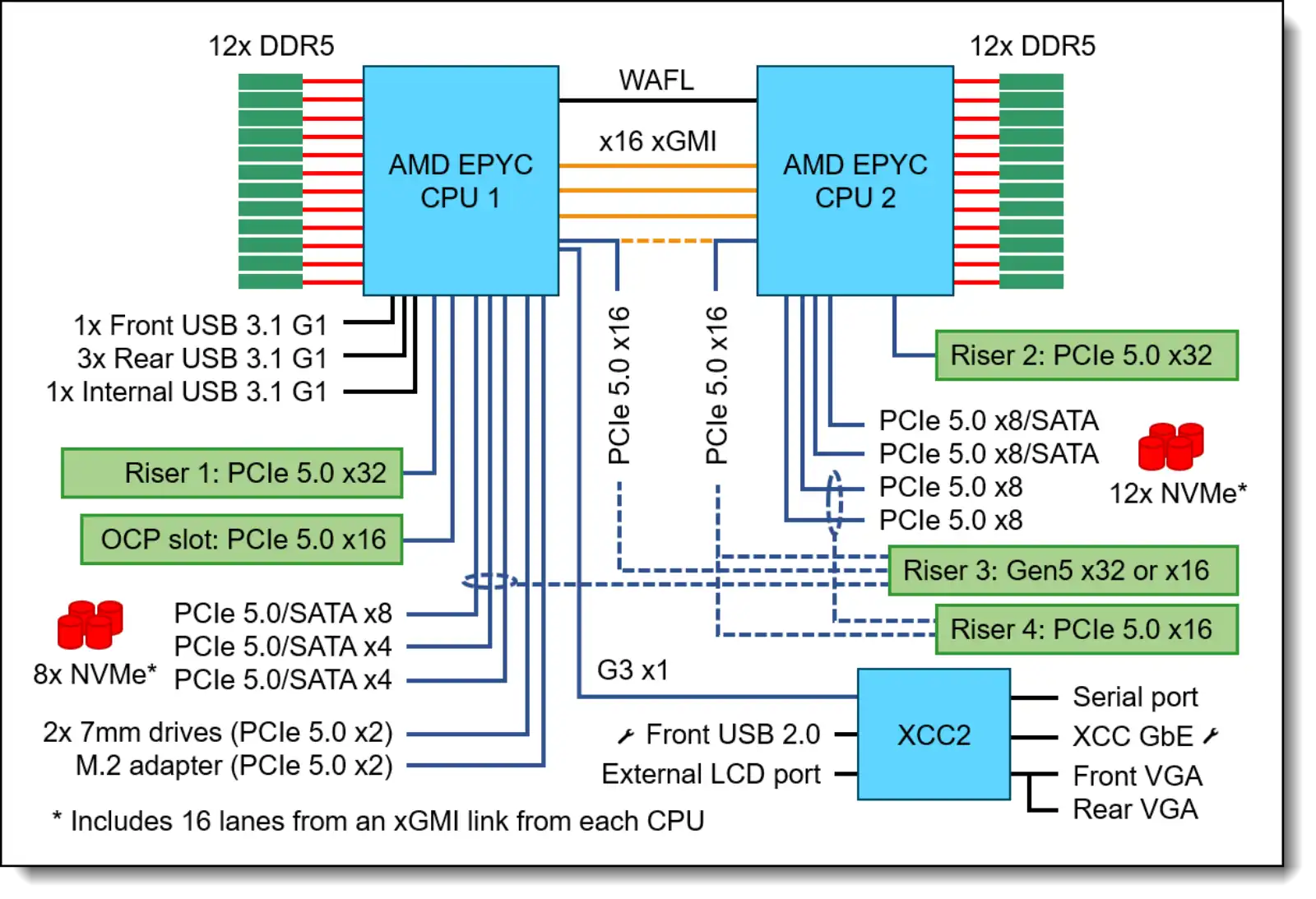

- PCIe 5.0 Expansion: 128 lanes of PCIe Gen 5 I/O for ultra-fast networking, GPUs, and NVMe storage.

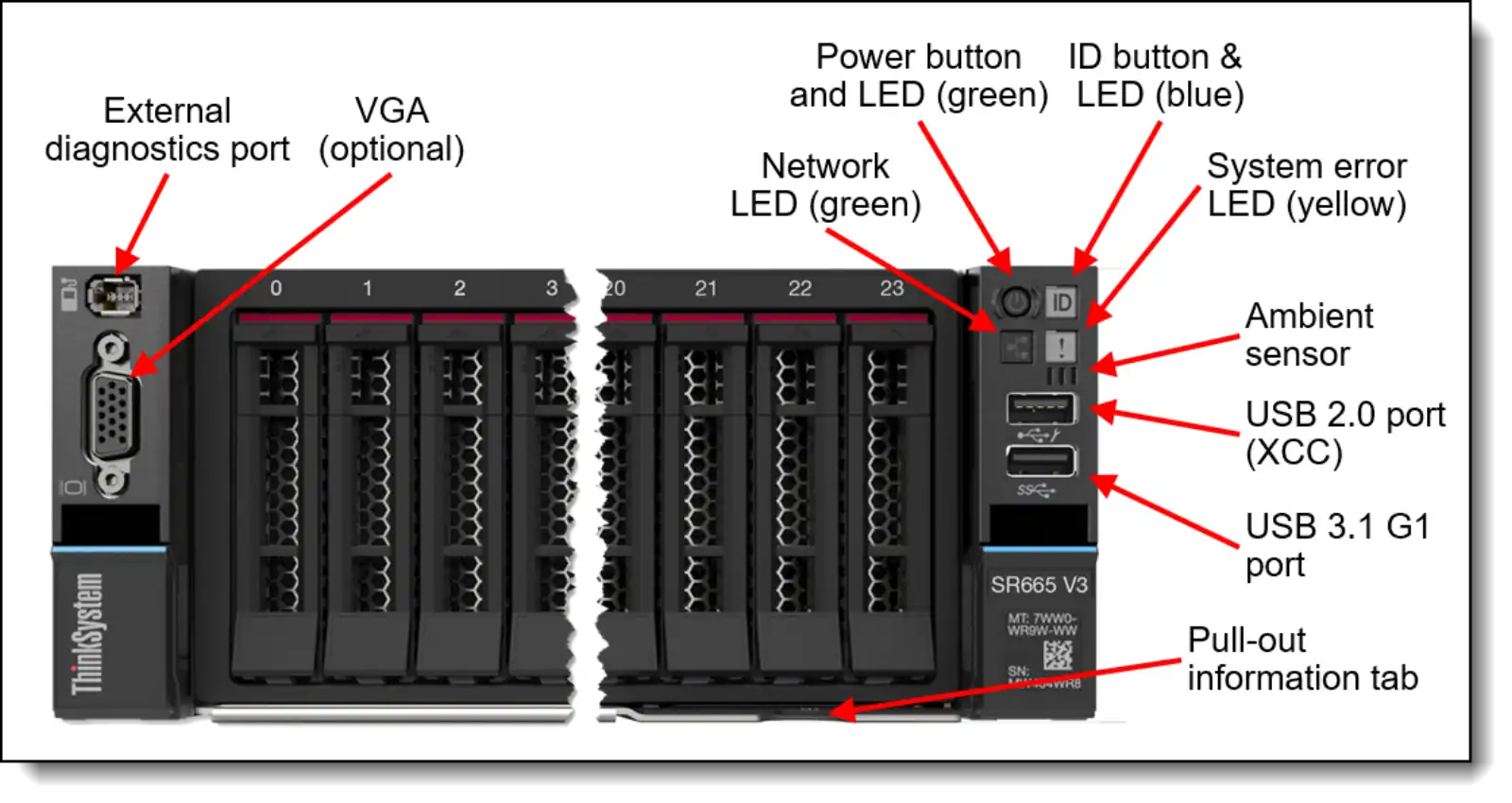

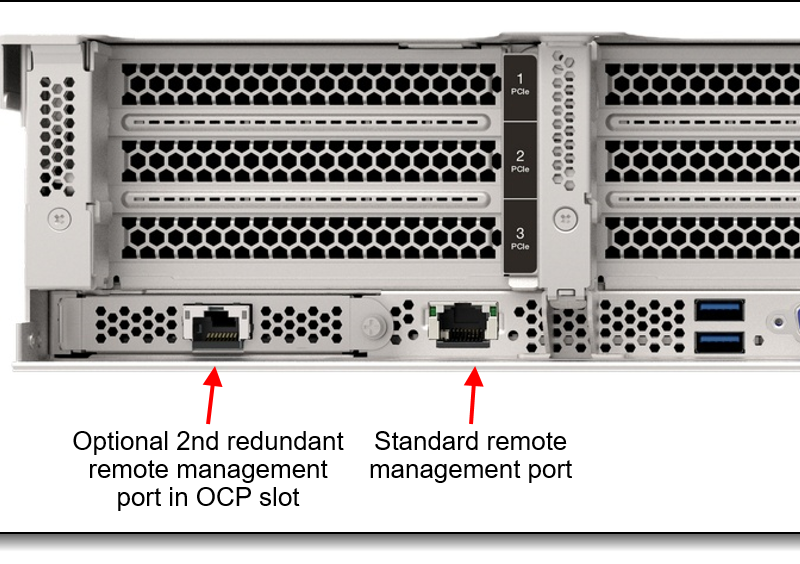

- XClarity Controller 2: Advanced hardware-level remote management for proactive monitoring and automated deployments.
- 1800W Titanium Efficiency: Redundant high-efficiency power supplies designed for 24/7 uptime and reduced operational costs.
- AnyBay Storage Flexibility: Supports a mix of SAS, SATA, and NVMe drives in the same hot-swap bays.
Technical Specifications
| Category | Detailed Specification |
|---|---|
| Processor | AMD EPYC™ 9174F (16-Core, 4.1GHz / 4.4GHz Boost, 256MB L3) |
| Memory Installed | 32GB TruDDR5-4800 (1x32GB) RDIMM ECC |

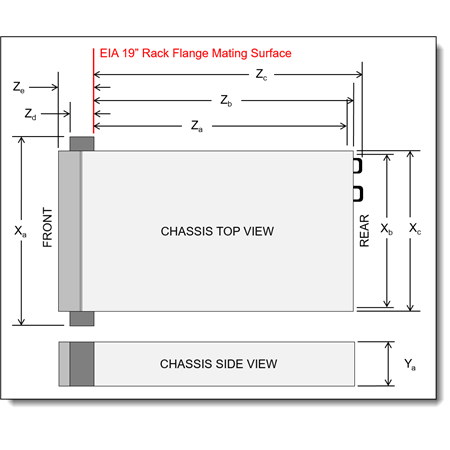

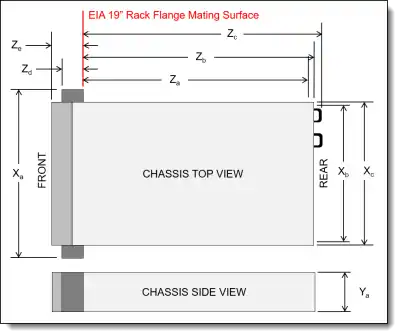

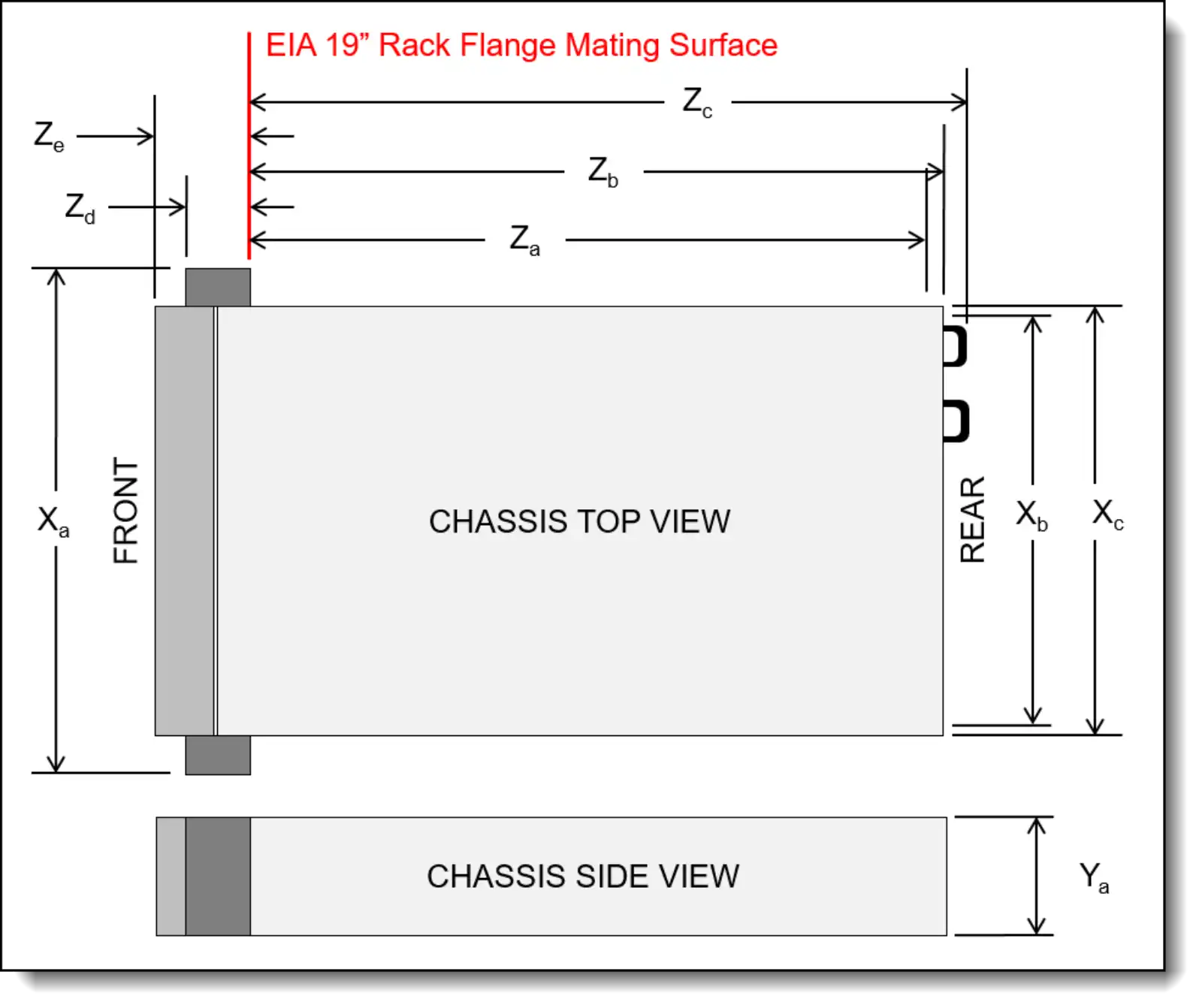

| Form Factor | 2U Rack-mount (7D9A Chassis) |

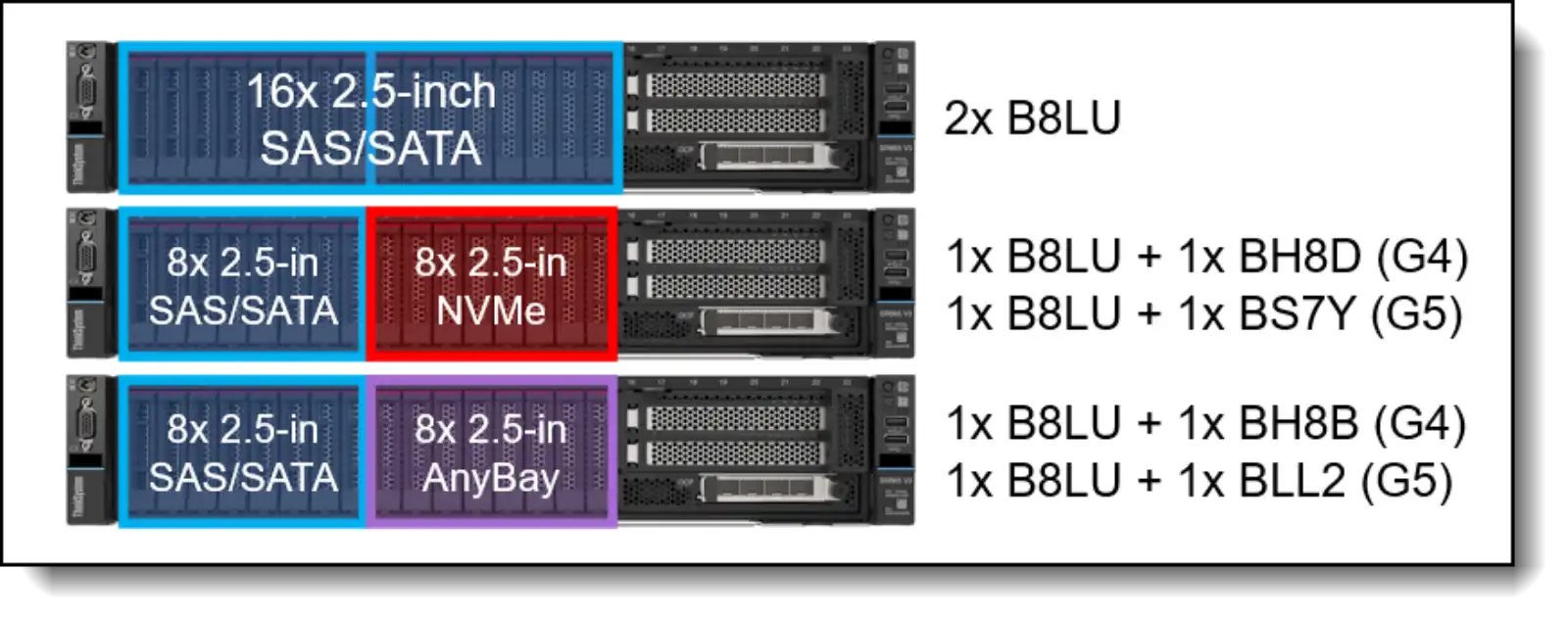

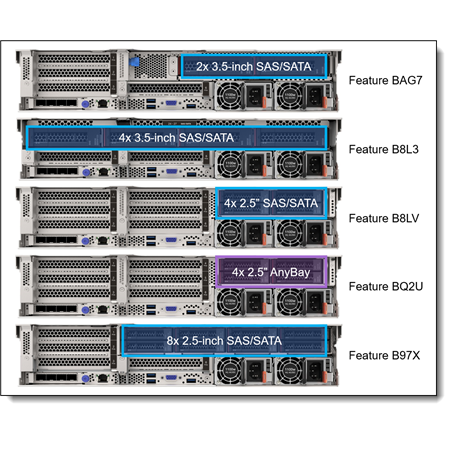

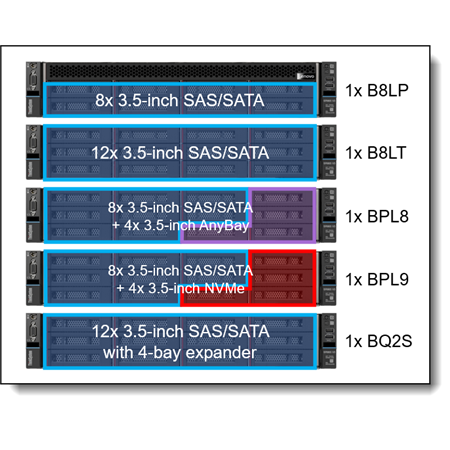

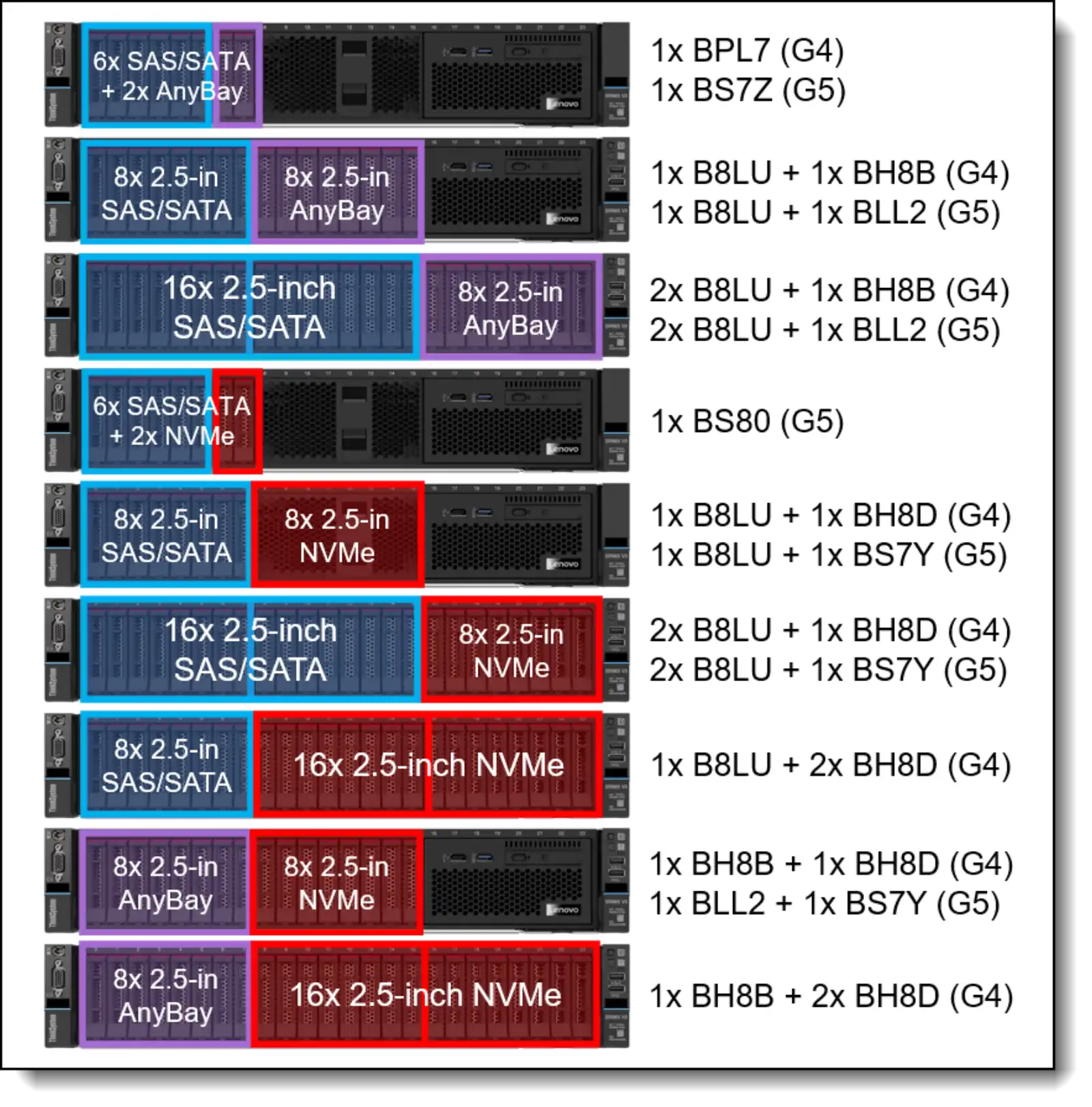

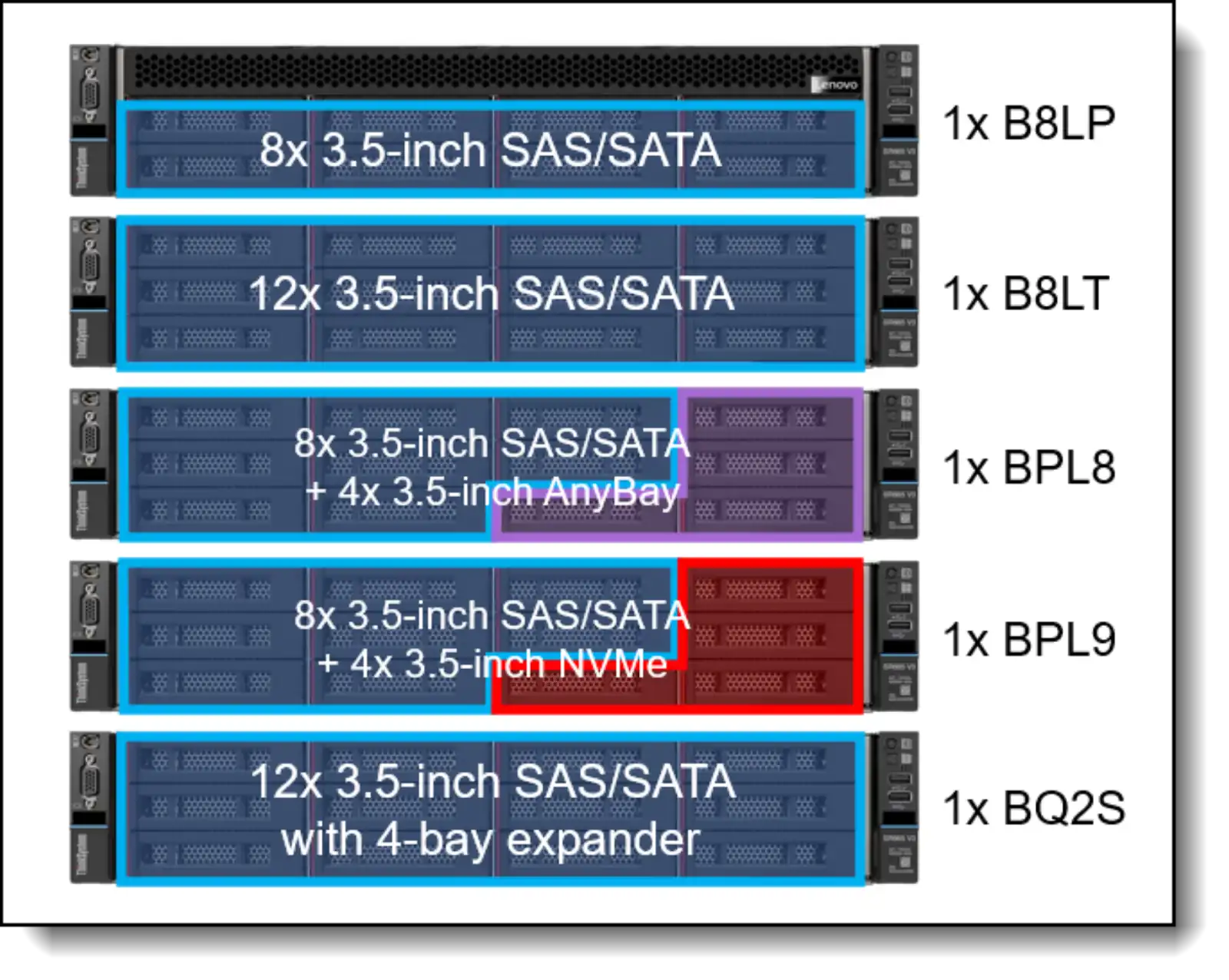

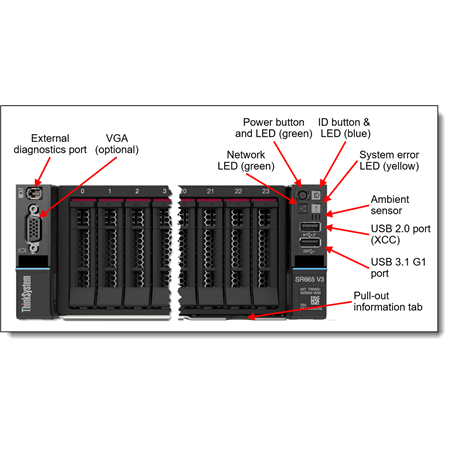

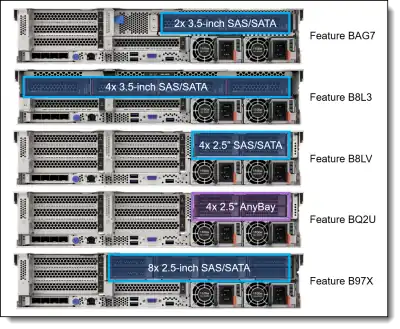

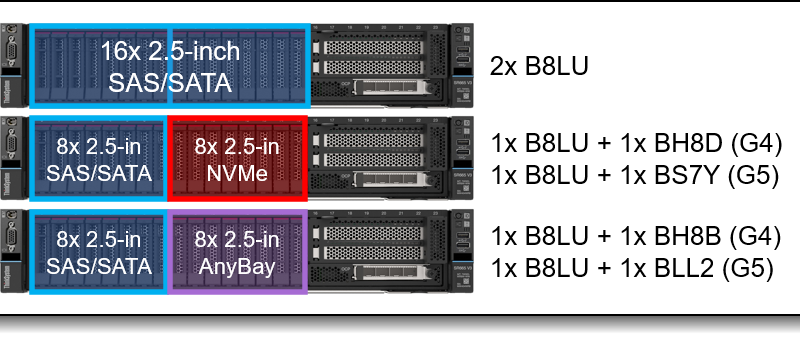

| Drive Bays | No Backplane Included (Supports up to 40x 2.5″ or 20x 3.5″ drives) |

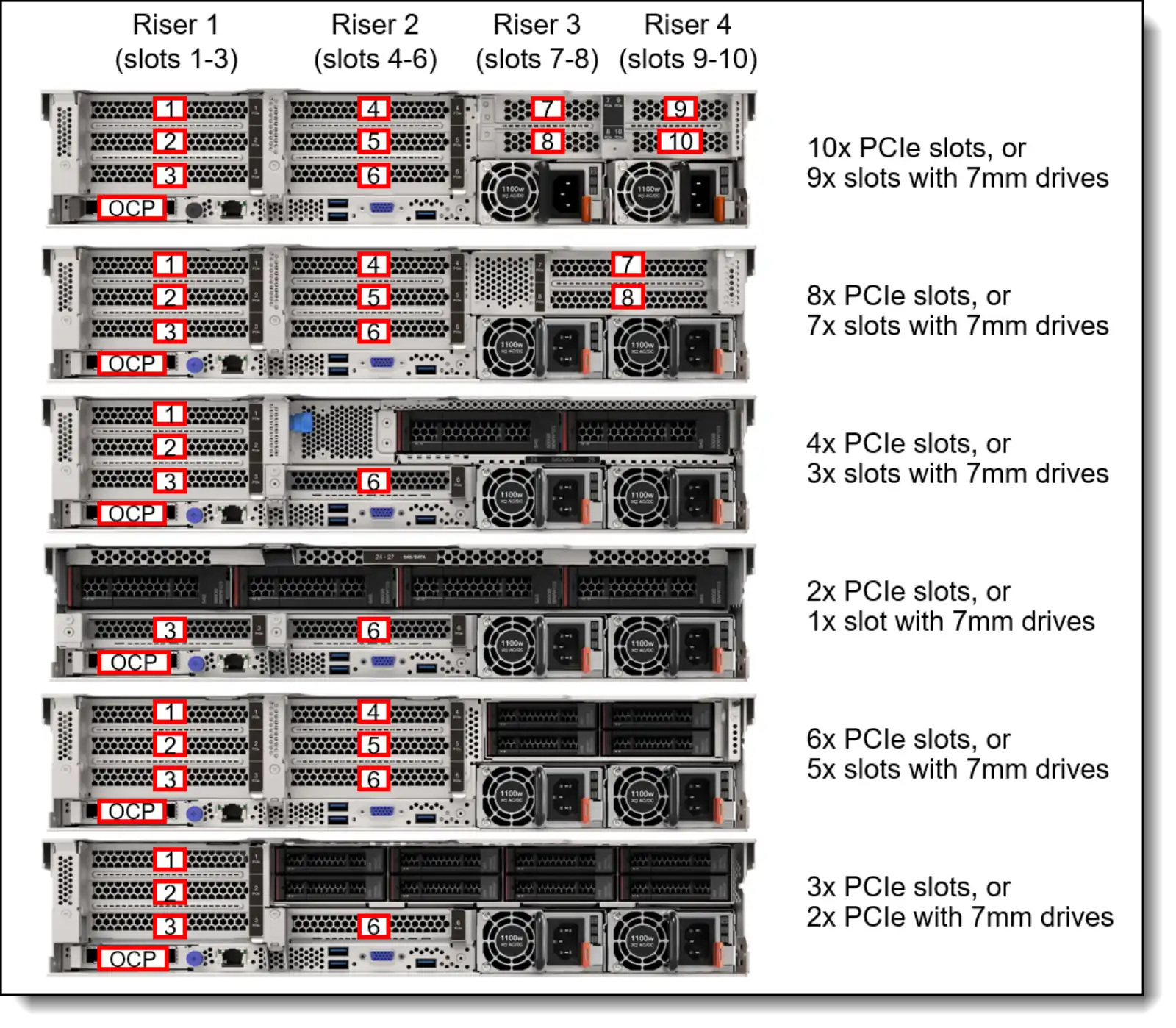

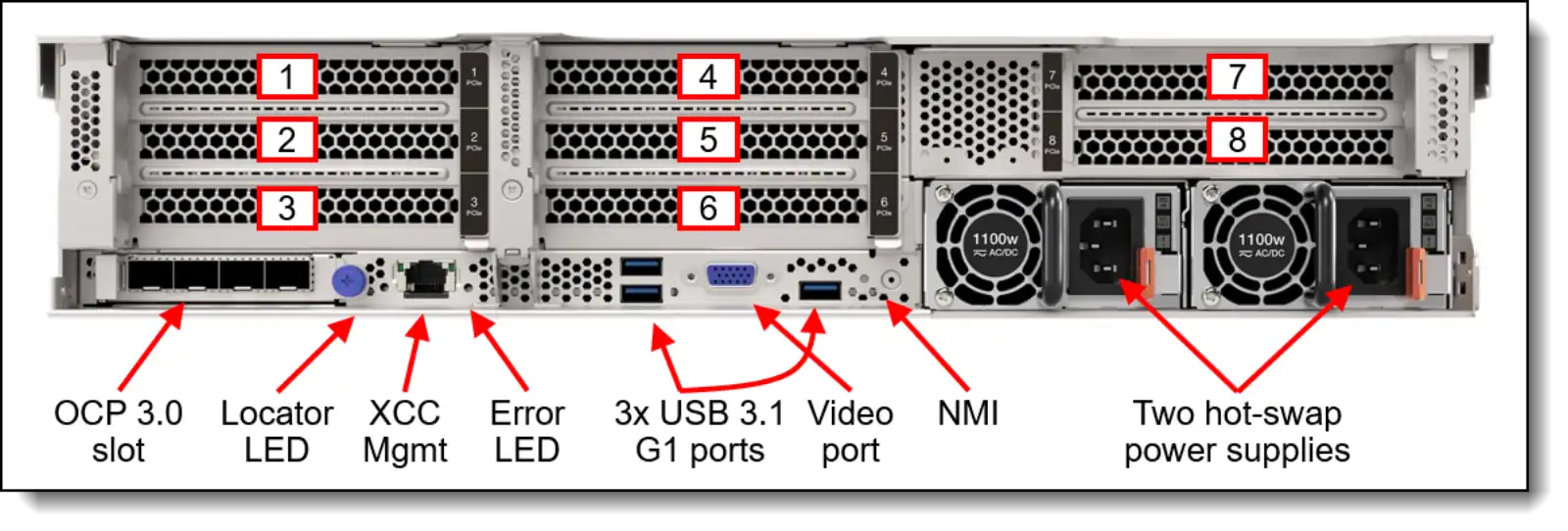

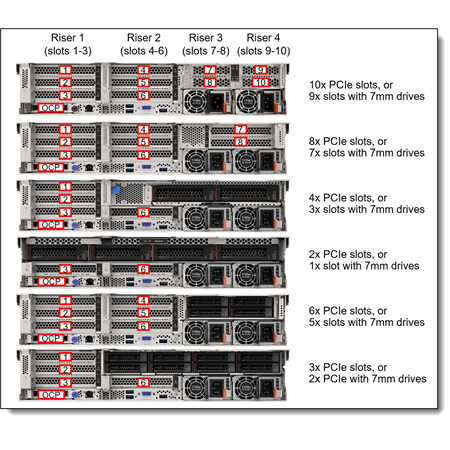

| Expansion Slots | Up to 12x PCIe slots (Supports PCIe 5.0) + 1x OCP 3.0 Slot |
| Power Supply | 1x 1800W Titanium Hot-Swap PSU (Supports 1+1 Redundancy) |

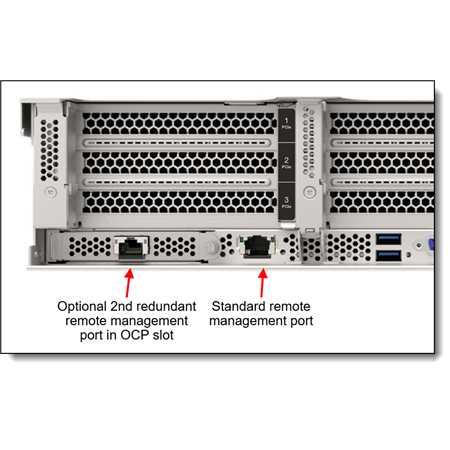

| Management | Lenovo XClarity Controller 2 (XCC2) Platinum |
| Security | TPM 2.0, Secure Boot, AMD Infinity Guard, Chassis Intrusion Switch |
High-Density Storage and Hybrid Workloads

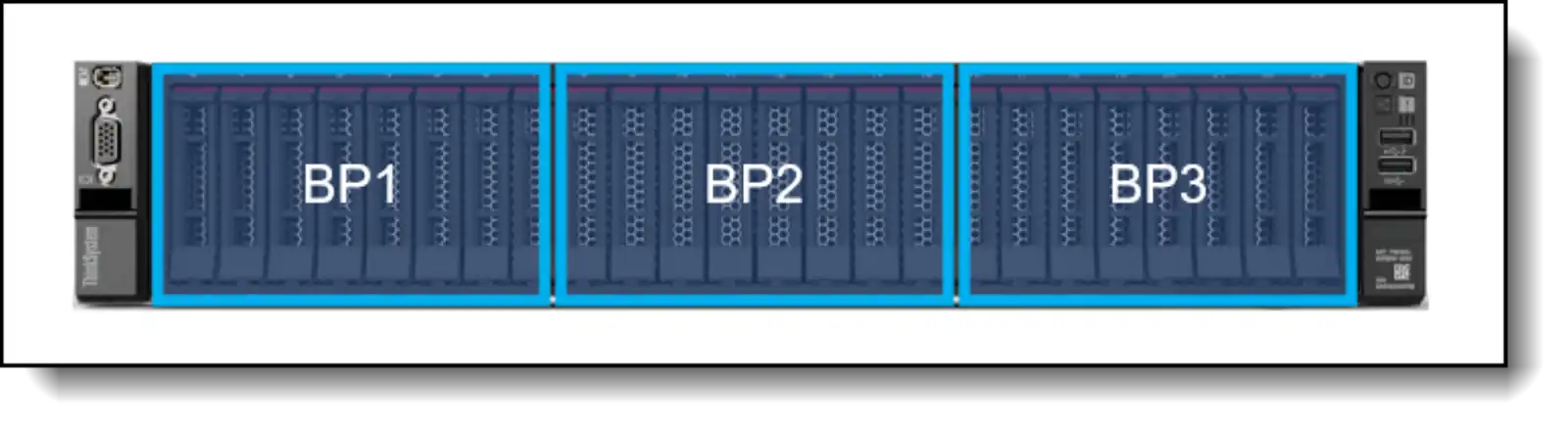

The ThinkSystem SR665 V3 is engineered for maximum configuration density. The AnyBay backplane technology allows for a seamless mix of standard SAS/SATA hard drives and high-speed NVMe SSDs in the same bays, providing the tiered storage required for modern database applications. With its Titanium-rated power supplies and advanced thermal sensors, the SR665 V3 maintains peak performance while minimizing its carbon footprint, ensuring compliance with the latest global energy efficiency standards.
Note: This is a base server configuration. Storage backplanes, additional processors, and rail kits may be required for specific deployments. Local South African support includes a 3-year standard onsite warranty with Next Business Day response.
