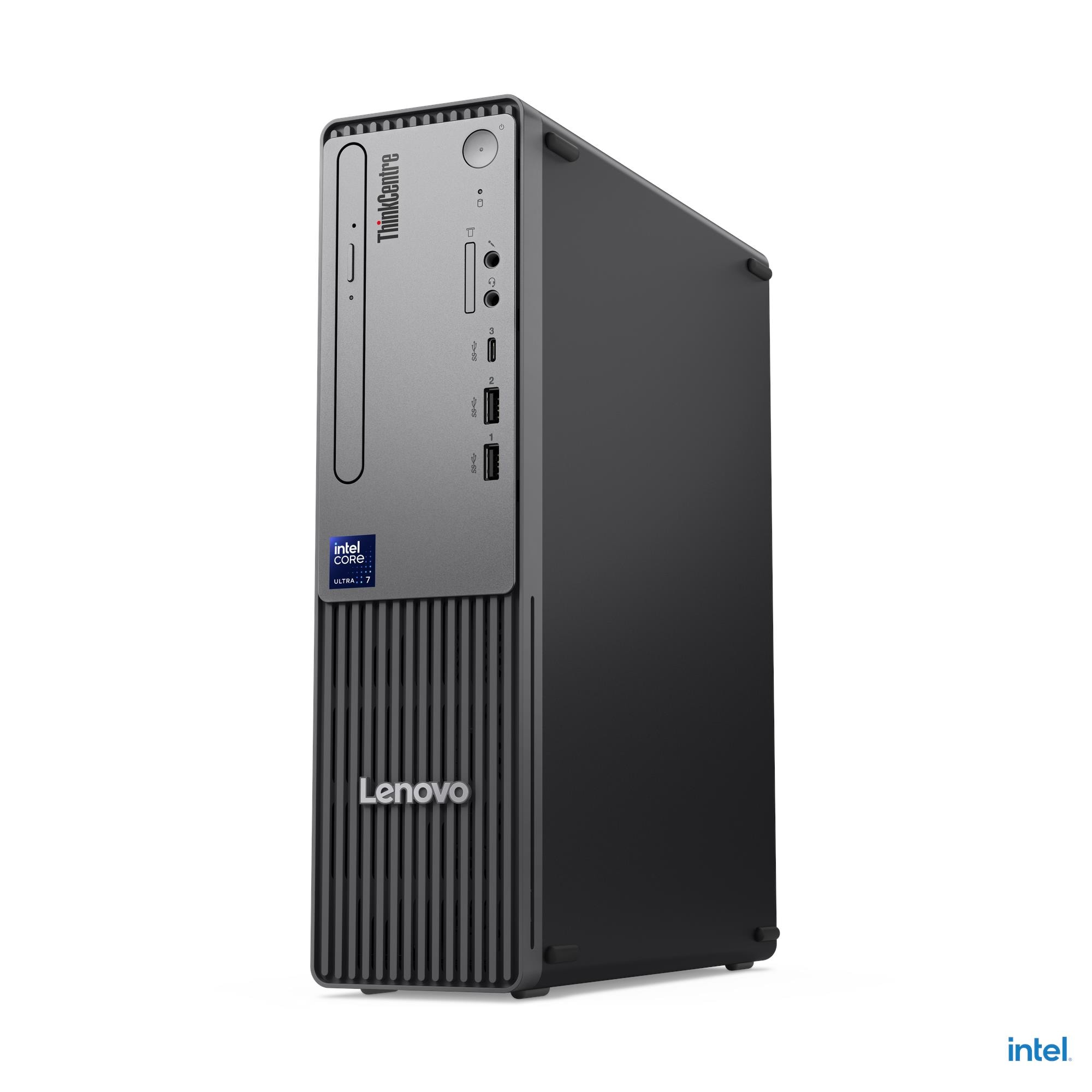

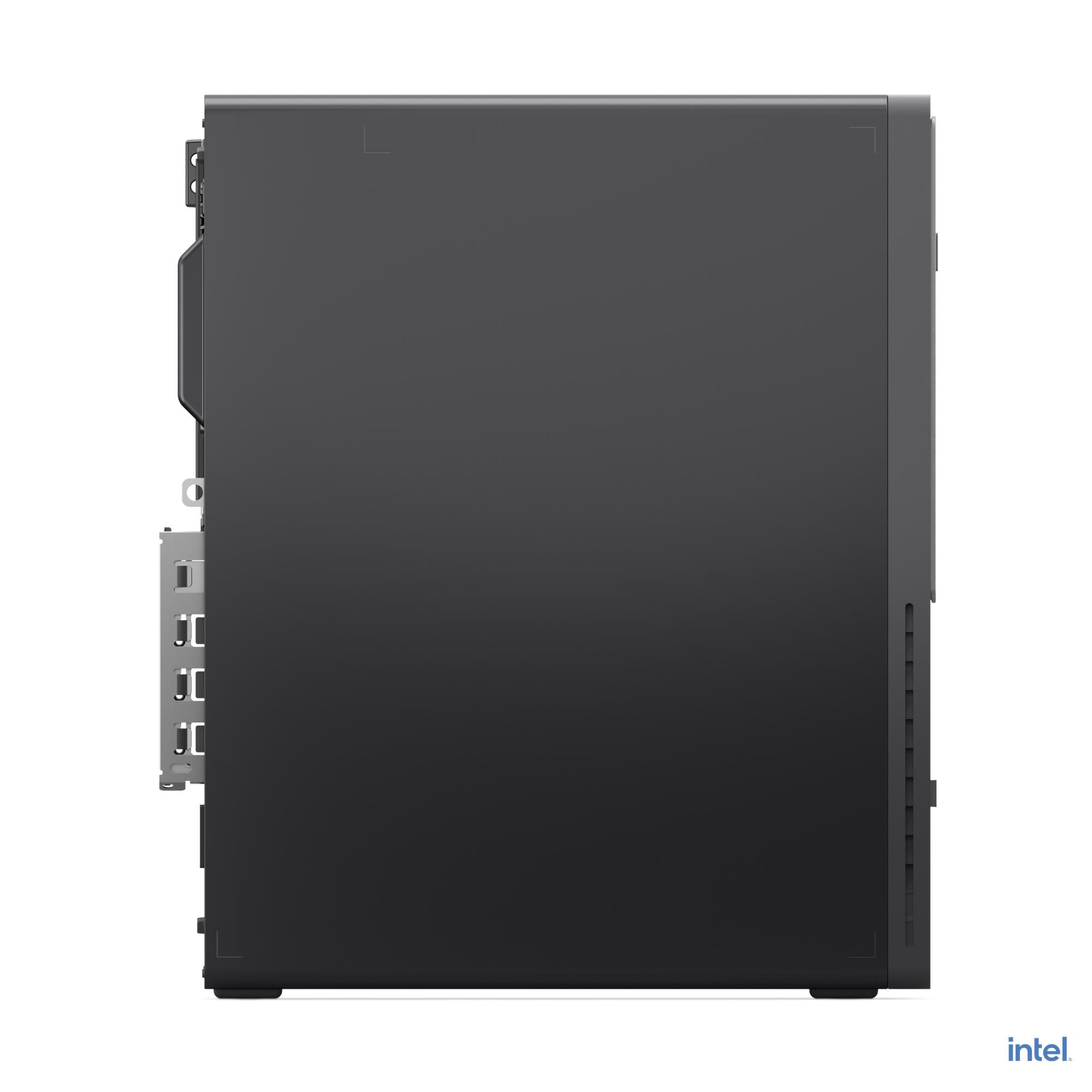

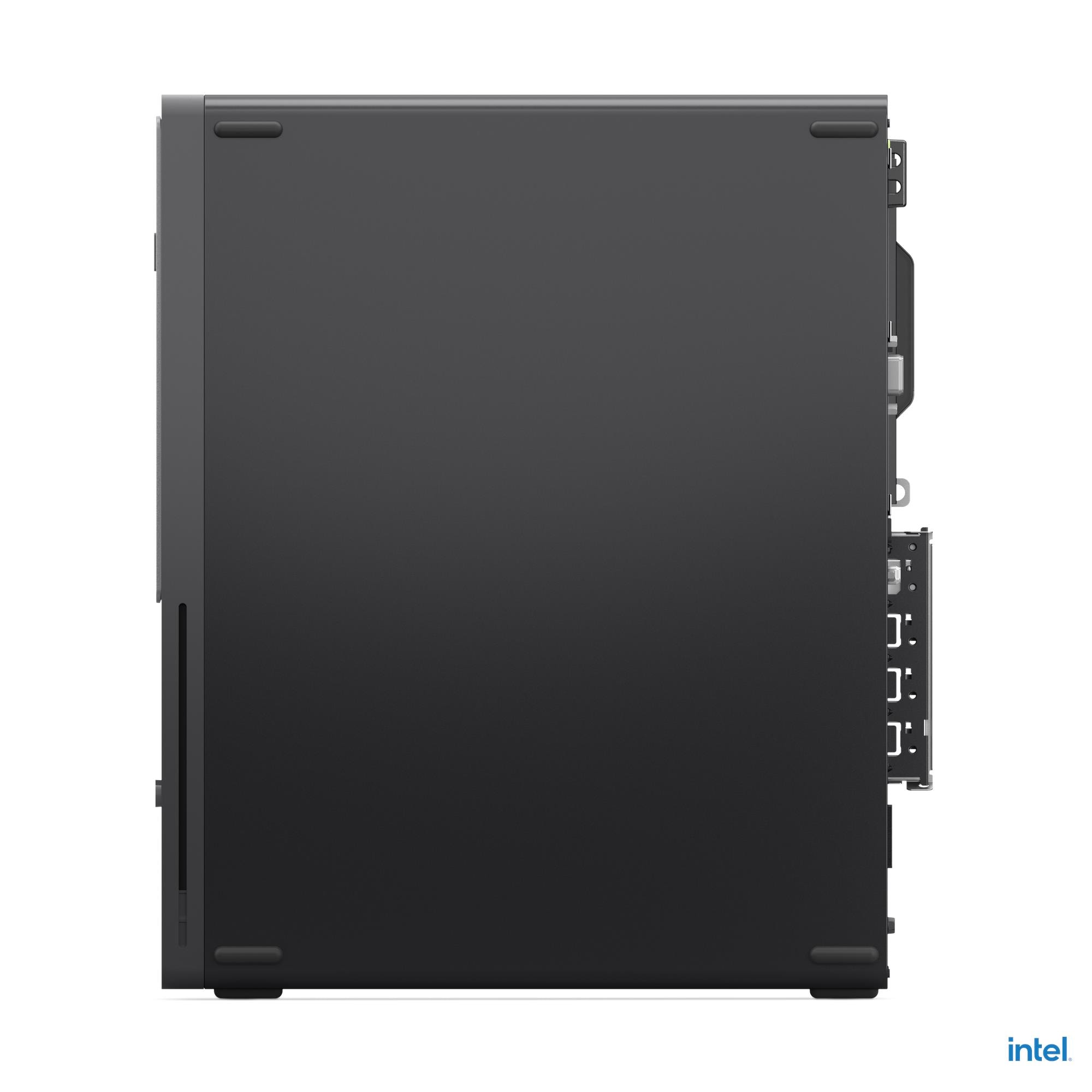

ThinkCentre neo 50s Gen 6. Full manufacturer specification, taken from Lenovo’s own Product Specifications Reference.
Technical Specifications
| Attribute | Specification |
|---|---|
| Processor | Intel Core™ Ultra 5 225, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel® Smart Cache |
| AI PC Category | AI PC |
| Graphics | Integrated Intel® Graphics |
| Chipset | Intel® B860 Chipset |
| Memory | 1x 16GB UDIMM DDR5-5600 |
| Memory Slots | Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® |
| Max Storage Support | Up to three drives, 1x 3.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB each To install a HDD storage, 3.5'' HDD screw and grommet kit is needed. |
| Card Reader | 3-in-1 Card Reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC623-CG codec 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs |
| Speakers | 1Wx1 |
| Power Supply | 200W 90% |
| Keyboard | USB, Calliope, Black, English (EU) |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm Three M.2 slots (one for WLAN, two for SSD) |
| Case Color | Raven Black |
| Stand | None |
| Pen | Pen Not Supported |
| Form Factor | SFF (8.2L) |
| Dimensions (WxDxH) | 92.5 x 291.7 x 339.5 mm (3.6 x 11.5 x 13.4 inches) |
| Weight | Around 4.62 kg (10.19 lbs) |
| WLAN + Bluetooth | Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.3 |
| WWAN | WWAN Not Supported |
| Ethernet | Integrated 100/1000M |
| Front Ports | 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |

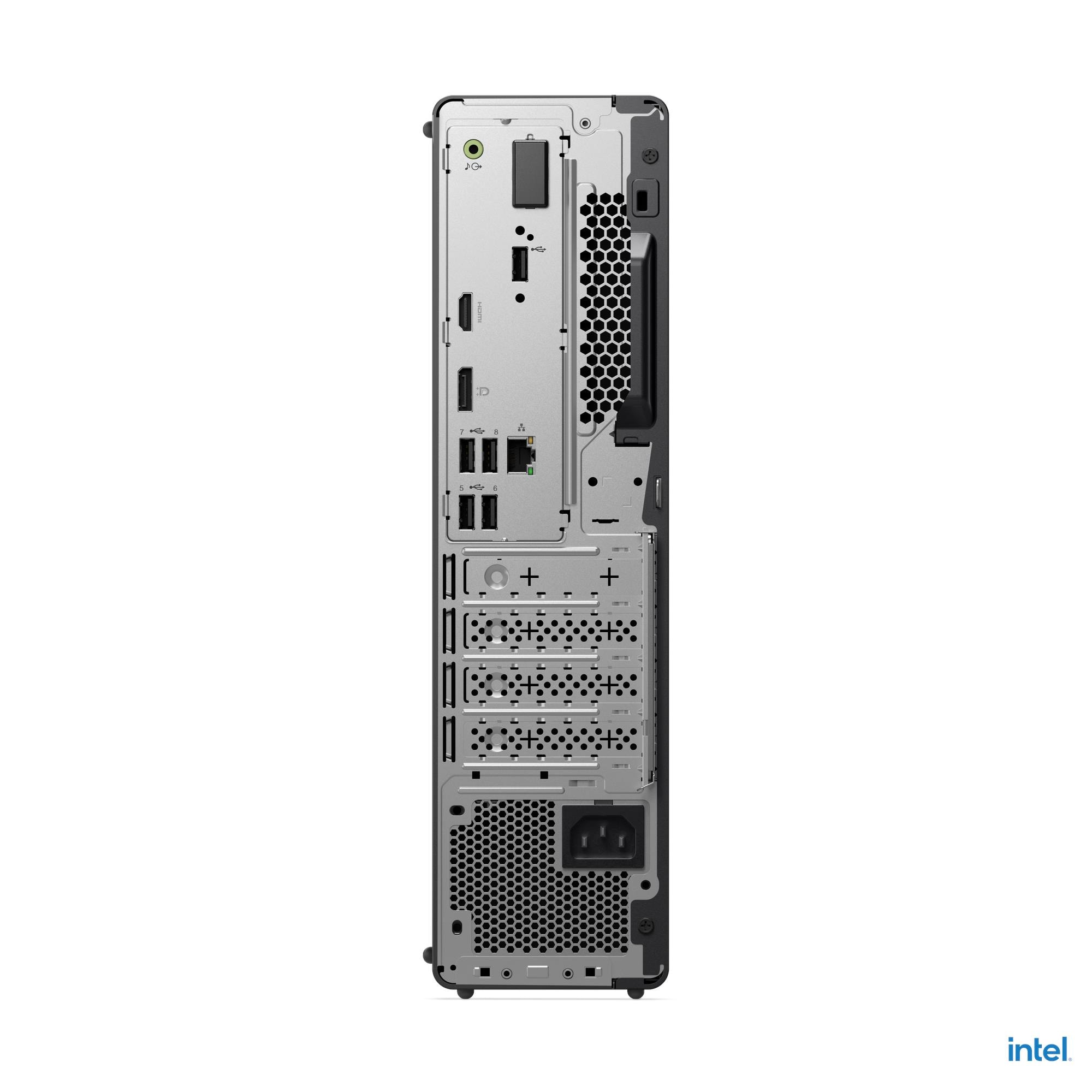

| Rear Ports | 2x USB-A (Hi-Speed USB / USB 2.0) 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On 1x HDMI® 2.1 TMDS 1x DisplayPort™ 1.4 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| Optional Rear Ports (configured) | None |
| Monitor Cable | None |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks | Kensington Security Slot™, 3 x 7 mm Padlock Loop |
| Smart Cable Clip | None |
| Chassis Intrusion Switch | Chassis Intrusion Switch |
| Additional Security | None |
| System Management | Non-vPro® |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Onsite upgrade from 1Y Courier/Carry-in (CPN) |
| Green Certifications | ENERGY STAR® 9.0 RoHS / WEEE / REACH |
| Other Certifications | – |
| Operating System | Windows® 11 Pro, English |
| Bundled Software | None |
| Bundled Accessories | Slim ODD Bracket Kit + 3.5" HDD Screw and Grommet Kit |
