The Intel® Wi-Fi 6E AX210 (Gig+) adapter is designed to support Wi-Fi 6E technology and related Wi-Fi Alliance certification. The product supports dual-stream Wi-Fi in the 2.4GHz, 5GHz and 6GHz bands as well as Bluetooth® 5.3. It also supports Wi-Fi 6 R2 features, including UL MU-MIMO. These new features maximize the benefits of Wi-Fi 6, including Gigabit speed, ultra-low latencies, and enhanced reliability benefits across new radio frequencies exclusive to Wi-Fi 6E devices, and deliver a significant improvement in user experience in dense deployments. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Wi-Fi 6E AX210 module can dramatically improve your connected experience at home, work, or on the go.
Intel® Wi-Fi 6E AX210 module supports legacy Wi-Fi 4, 5, 6, and Wi-Fi 6E and is designed to support Wi-Fi 6 R2 features. By implementing Wi-Fi 6E technology supporting the 6GHz band that includes 1200MHz of new contiguous spectrum (>2x compared to 5GHz) with more Gigabit Wi-Fi options and exclusivity to Wi-Fi 6 products, the Intel® Wi-Fi 6E AX210 module maximises Wi-Fi 6 and Gigabit Wi-Fi benefits, enabling greater network flexibility, faster downloads, sharing, and backups, as well as reduced latency and improved reliability.
When using Wi-Fi 6 technology with 1024QAM and 160MHz channels, the Intel® Wi-Fi 6 AX210 module can deliver nearly 3x higher peak data rates (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments compared to Wi-Fi 5.
FEATURES:
- Greater Network Flexibility
- Faster Speed
- Reduced Latency
- Wi-Fi 6E Tri-Band 2×2 160MHz
- Bluetooth® 5.2
- Microsoft Windows
- Form Factors (M.2 2230 and 1216)
SPECIFICATIONS:
- Connector Interface: M.2: PCIe*, USB
- Wi-Fi Alliance: Wi-Fi CERTIFIED 6 with Wi-Fi 6E, Wi-Fi CERTIFIED a/b/g/n/ac, WMM , WMM -Power Save, WPA3 , PMF , Wi-Fi Direct , Wi-Fi Agile Multiband, Wi-Fi Location R2 HW readiness
- IEEE WLAN Standard: IEEE 802.11-2020 and select amendments (selected feature coverage), IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax; Fine Timing Measurement based on 802.11-2016, 802.11az HW readiness
- Bluetooth®: Bluetooth® 5.2
- Security Methods: WPA3 personal and enterprise including WPA2 transition mode
- Authentication Protocols: 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0-MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
- Encryption: 128-bit AES-CCMP, 256-bit AES-GCMP
- Operating Temperature (Adapter Shield): 0°C to +80°C
- Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
- Operating Systems: Microsoft Windows 11, Microsoft Windows 10, Linux
- Dimensions: M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)], M.2 1216: 12mm x 16mm x 1.7 (+-0.1) mm
- Weight: M.2 2230: 2.83 +/– 0.3 g, M.2 1216: 0.67 +/– 0.1 g
WHAT’S IN THE BOX:

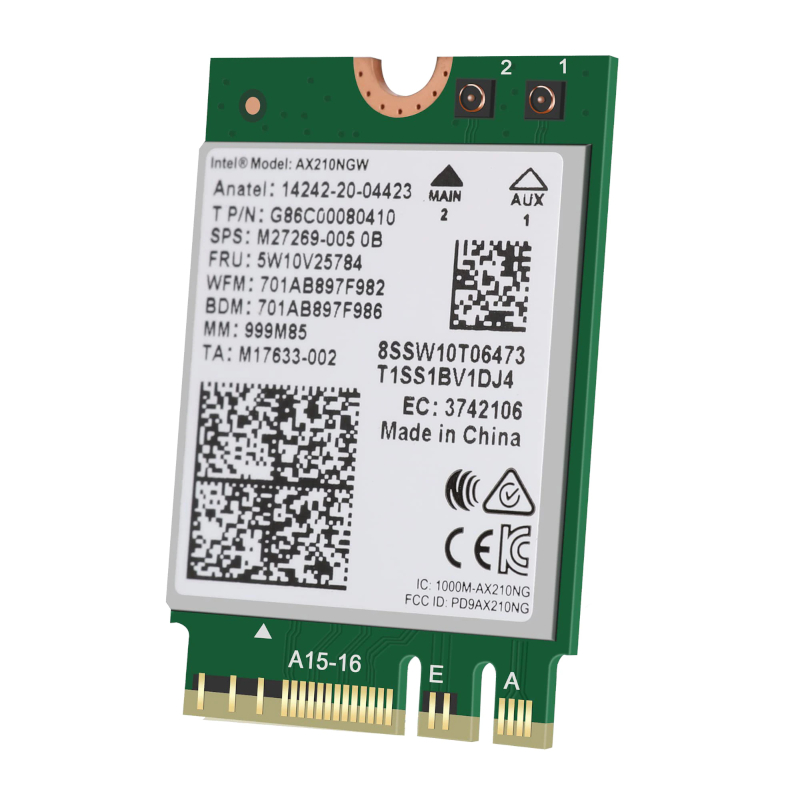

- Intel® Wi-Fi 6E AX210 M.2 WIFI module – Green x1
