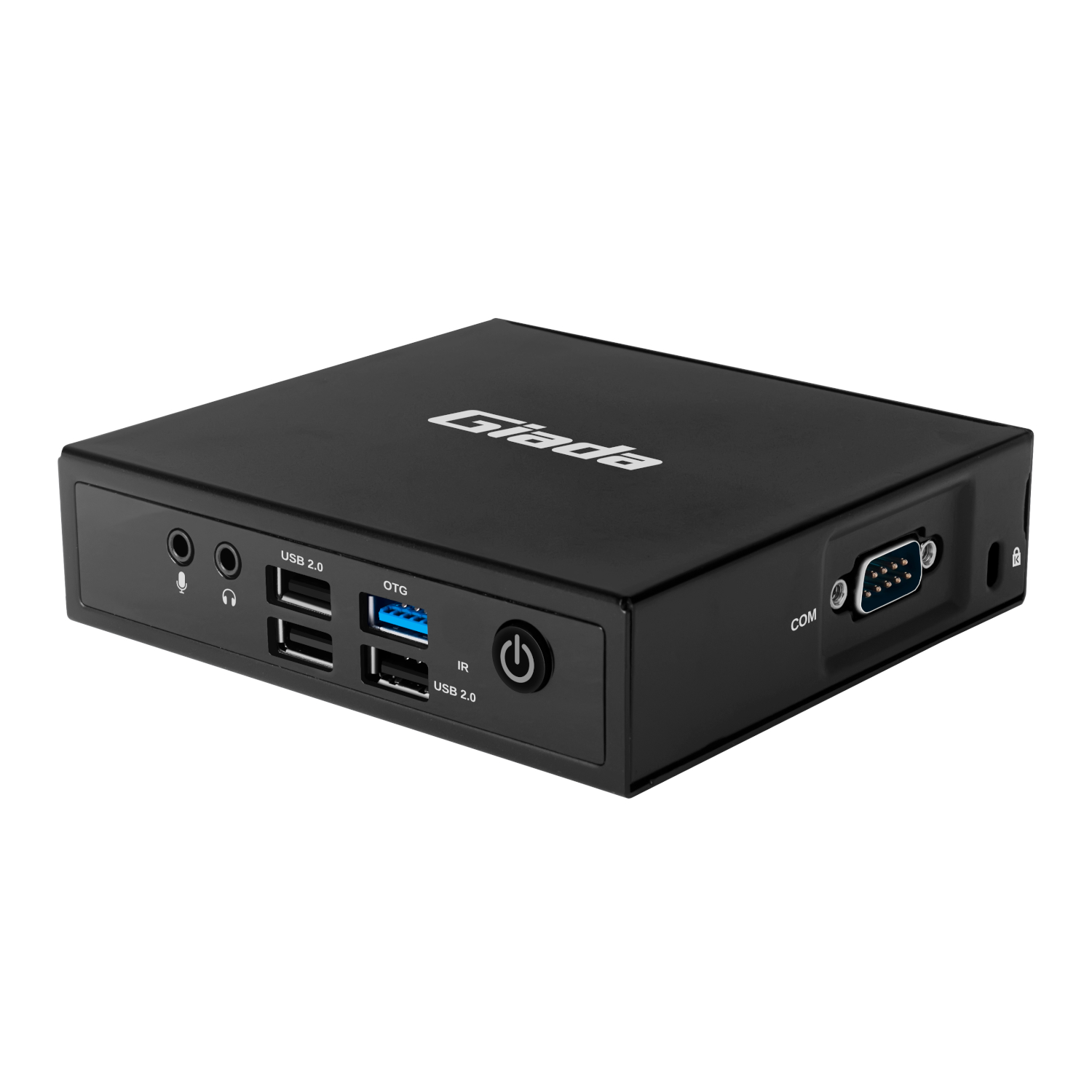

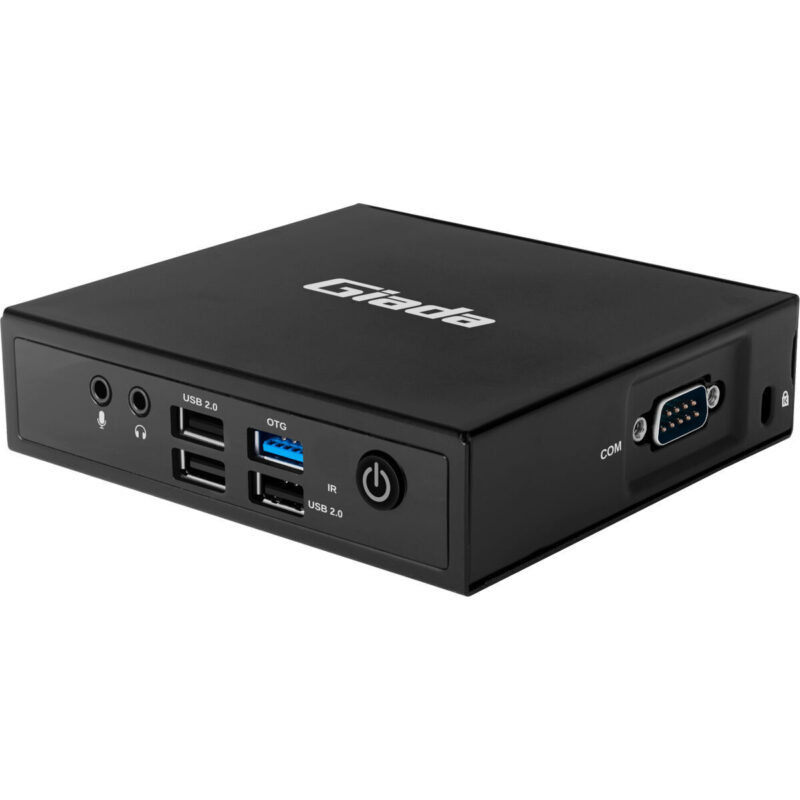

Giada DN83 Rockchip RK3528A LPDDR4 Fanless Arm Player (DN83-R3528A41E5G-GIA)

Experience reliable, cool operation for your digital signage needs with 4K output and onboard Wi-Fi.

Quick Specs

• Reliable processing with a quad-core Rockchip RK3528A CPU.
• Cool, quiet operation thanks to a fanless design.
• Effortless connectivity with onboard Wi-Fi and Ethernet.
• Sharp visuals with support for 4K resolution at 60Hz.
• Compact form factor, ideal for space-constrained installations.

Engineered for steadfast performance in demanding environments

The Giada DN83 fanless mini pc is built for reliability, designed for those who require consistent operation without compromise. Its fanless industrial mini pc architecture ensures silent running and reduces potential points of failure, making it an ideal choice for digital signage, kiosks, or embedded applications where dust and noise are unwelcome. This ARM based media player is not about fleeting trends; it is about enduring performance and a stable platform for your critical tasks. For the South African market that values dependability, the DN83 stands as a testament to robust engineering.

Seamless integration for your operational needs

This ARM based media player is designed to integrate smoothly into your existing infrastructure. The onboard Wi-Fi and Ethernet provide versatile networking options, ensuring your content is always accessible and up-to-date. With ample onboard eMMC storage, and the option for further expansion, you have the capacity to house your essential applications and media. The compact dimensions mean it can be discreetly placed, yet it delivers powerful 4K visuals, transforming any display into a dynamic information or entertainment hub. This fanless mini pc is your gateway to efficient content delivery.

A clear vision for display excellence

Deliver your message with striking clarity. The Giada DN83 supports a maximum resolution of 3840 x 2160 at 60Hz via its HDMI output. This capability ensures that your digital content, from high-definition video to intricate graphics, is presented with vibrant detail and smooth motion. Whether it is for engaging advertising, informative displays, or immersive experiences, this fanless industrial mini pc provides the visual fidelity required to capture attention and convey information effectively.

Built for continuity and control

Understanding the need for uninterrupted operation, the DN83 includes features like Auto Power On, ensuring the system resumes operation after a power loss without manual intervention. The inclusion of a Watchdog Timer, though marked as NA in some configurations, points to an underlying design consideration for system stability. The on-board RTC (Real-Time Clock) allows for independent scheduling, offering granular control over when your system is active. This attention to operational continuity makes this ARM based media player a dependable choice for applications requiring constant uptime.

FEATURES:

• Run your applications smoothly with the efficient quad-core Cortex-A53 processor, perfect for an ARM based media player.
• Experience silent operation and enhanced durability with the fanless design, ideal for a fanless mini pc.
• Stream content and manage updates effortlessly with integrated Wi-Fi and Ethernet.
• Display your content in stunning detail with 4K resolution support at 60Hz, a key feature for any fanless industrial mini pc.
• Benefit from reliable power management with auto power-on functionality.
• Keep your system on schedule with the integrated Real-Time Clock (RTC) for daily or weekly cycles.
• Connect peripherals and audio devices with versatile MIC-IN, AUDIO-OUT, and RS232 ports.

SPECIFICATIONS:

• CPU: Rockchip RK3528A processor
• Processing Units: 4 Cores Cortex-A53
• TDP: 6 W
• System Memory: 2 GB, Onboard LPDDR4/LPDDR4x, 2 Channels
• Storage:
  • 32 GB, Onboard eMMC (Optional: 64 GB)
  • 1 x TF Card Reader
• Watchdog Timer: NA
• Auto Power On: Yes
• RTC: Set up independently every day, a week as a cycle
• Remo on: NA
• Network Controller: 1 x Realtek RTL8211E PHY
• Ethernet Interface: 1 x RJ45
• Wi-Fi/BT: Onboard Wi-Fi/BT module
• Mobile Network:
  • 1 x B-key M.2 (3042) for 3G/4G
  • 1 x SIM Slot
• GPU: Mali-450MP2
• Graphic Engine: OpenGL ES1.1/2.0
• Multi-Media:
  • 4K VP9 decoders
  • 4K 10bits H.265 decoders
  • 1080P VC-1, MPEG-1/2/4, VP8 video decoders
  • Support HDR10 ,HLG HDR

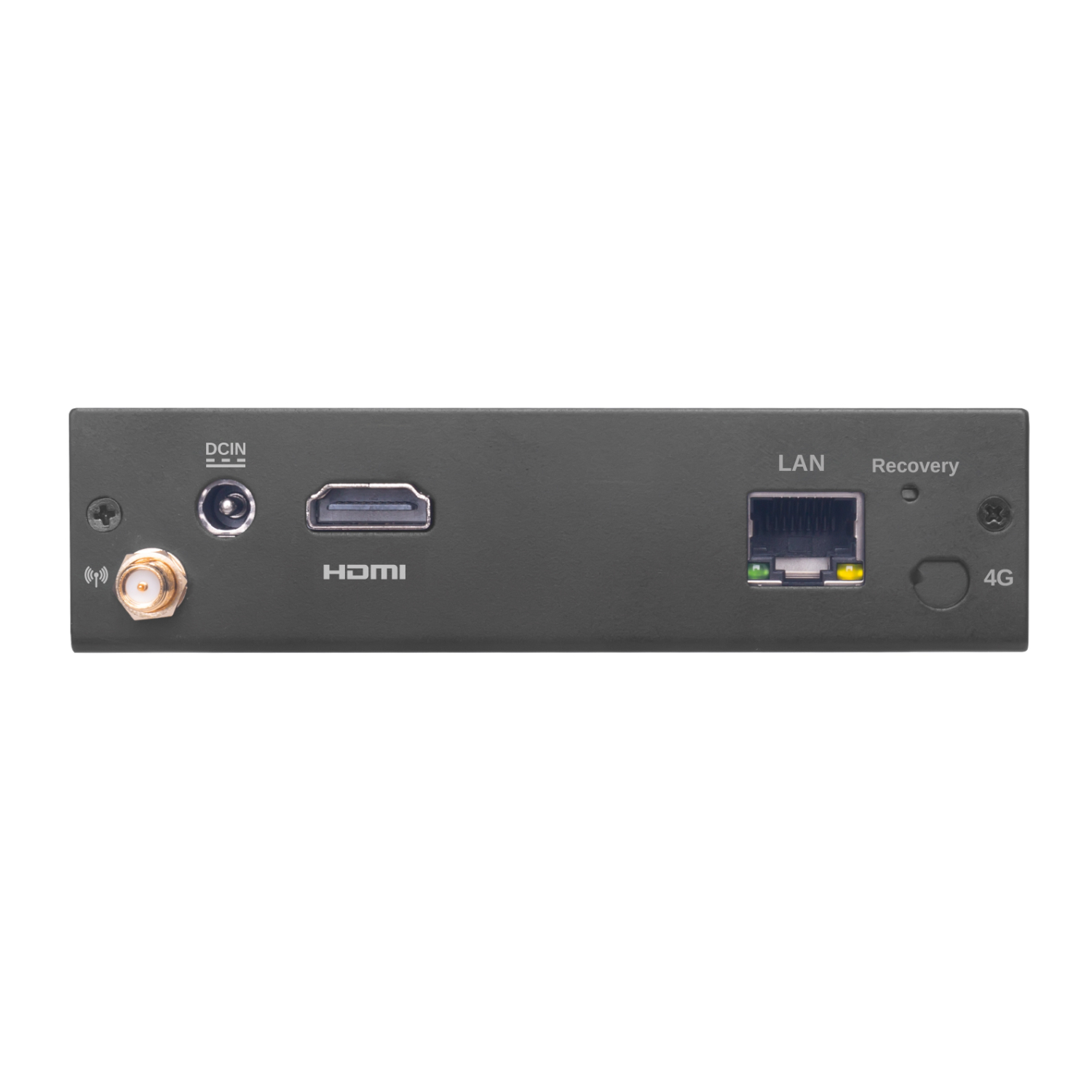

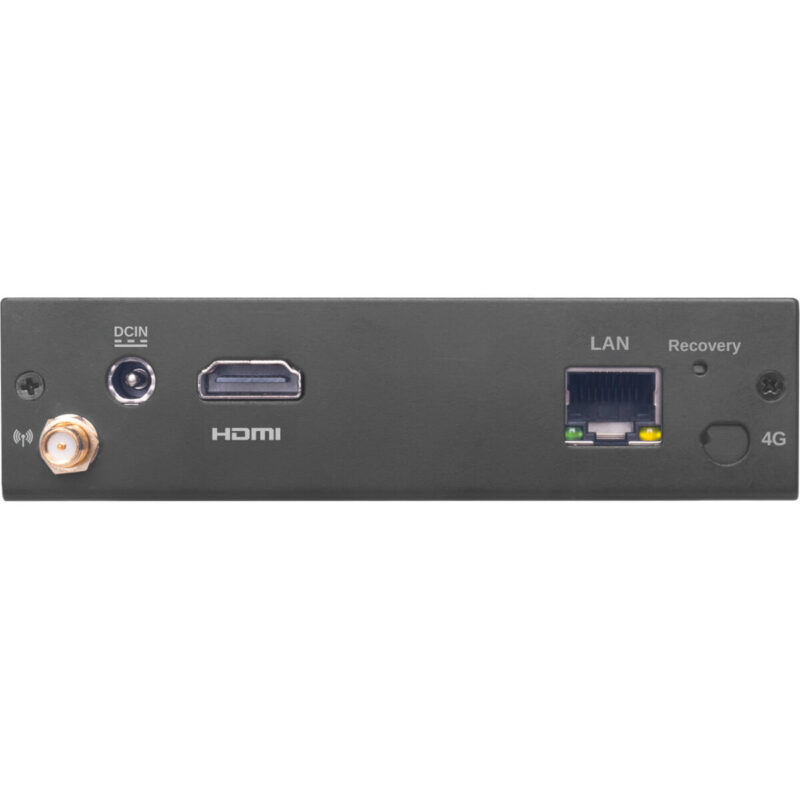

• Display Interface: 1 x HDMI (Max.3840 x 2160 @60 Hz)

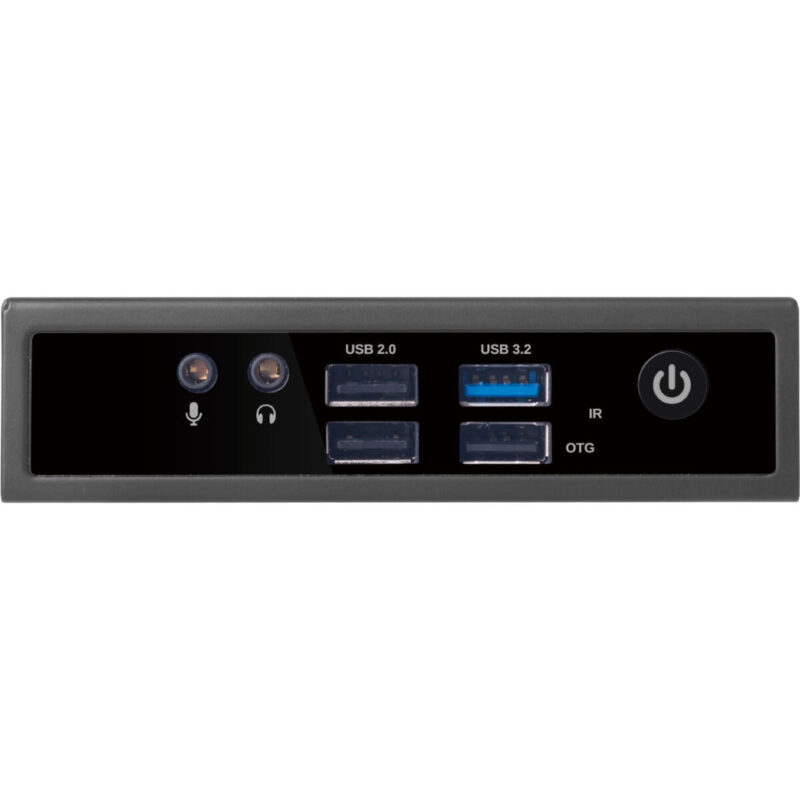

• USB:
  • 1 x USB3.2 Gen1,
  • 1 x USB2.0 OTG, 2 x USB2.0

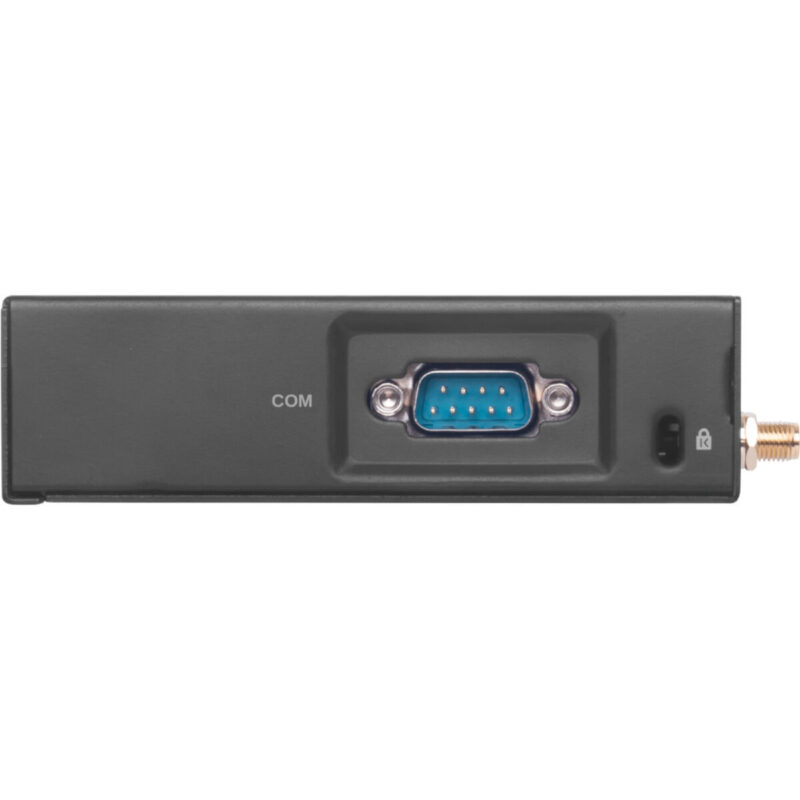

• Serial Port: 1 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x Recovery
• Antenna:
  • 1 x Connector for Wi-Fi/BT
  • 1 x Connector for 3G/4G (Reserved)
• Power Requirement: DC-IN, 12 V/2.08 A
• Construction Metal, Black
• Operating System
• Operating Temperature 0°C ~45°C (32°F~114°F) @0.7m/s Air Flow
• Android 13/Debian 11
• Certifications CE, FCC Class B, UKCA
• Humidity 95% @ 45°C (non-condensing)
• Product Dimensions: 11.6 x 10.6 x 3 cm

WHAT’S IN THE BOX:

• Giada DN83 Rockchip RK3528A LPDDR4 Fanless Arm Player – Black x1
• Wi-Fi Antenna x1
• AC Power Cable x1
• AC Power Adapter x1
