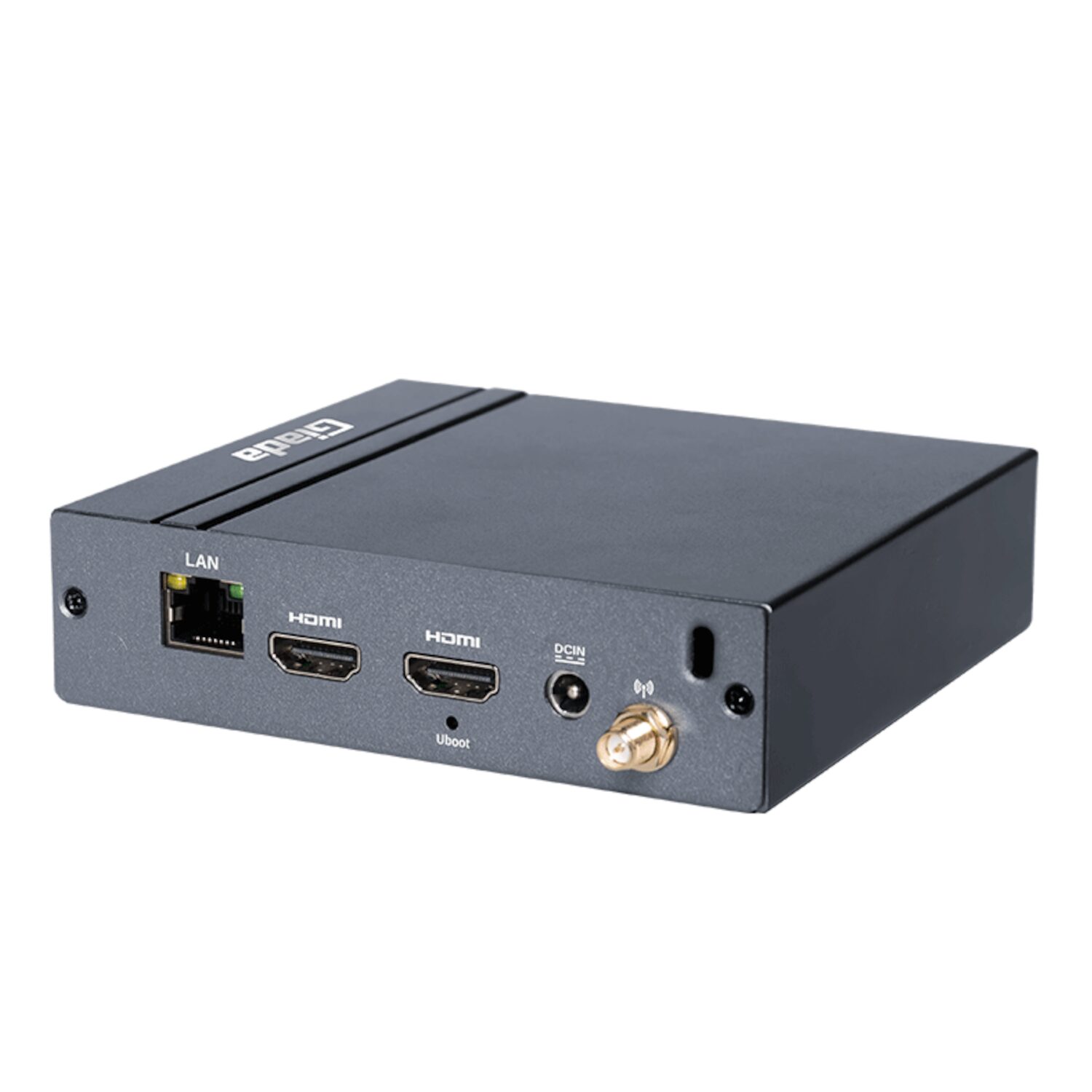

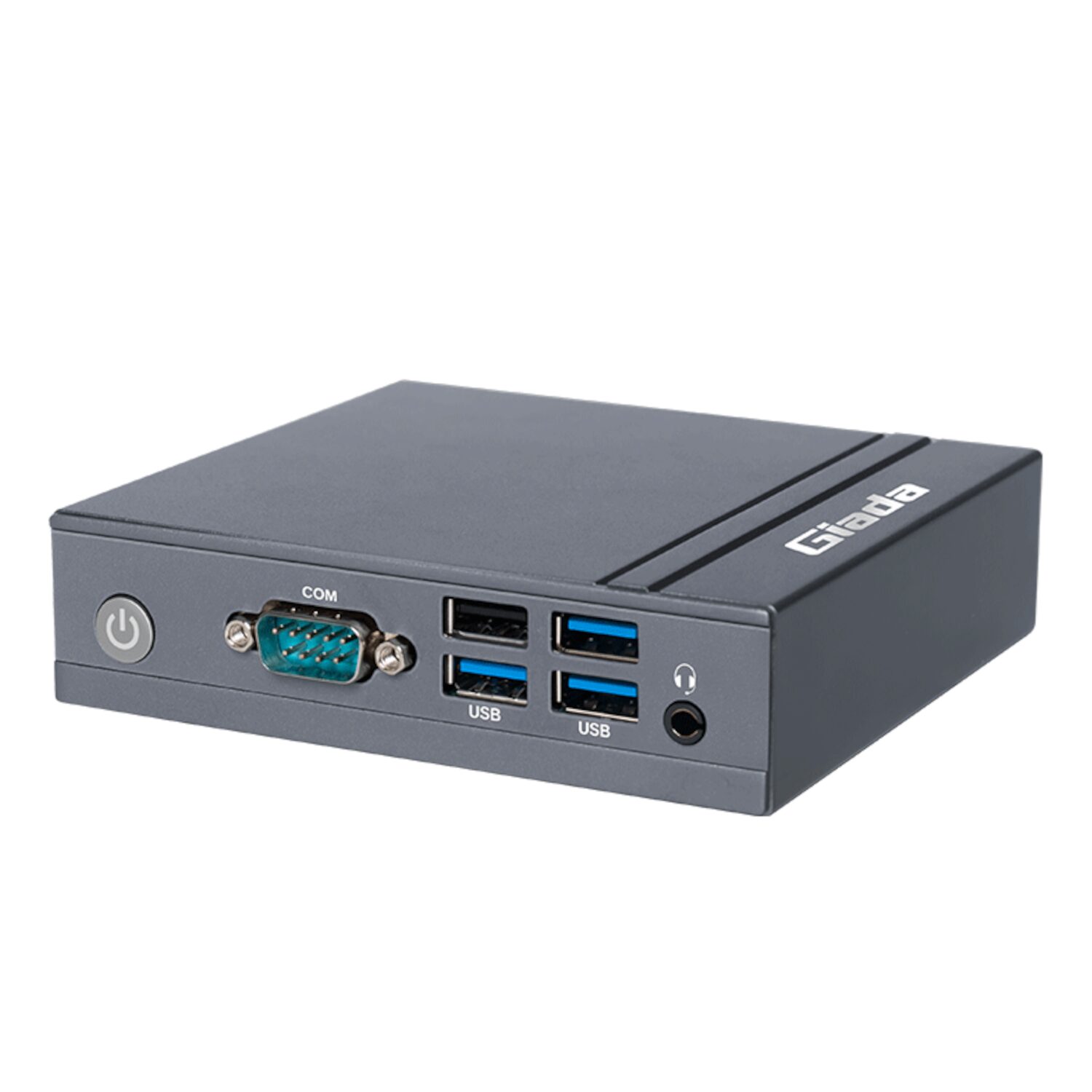

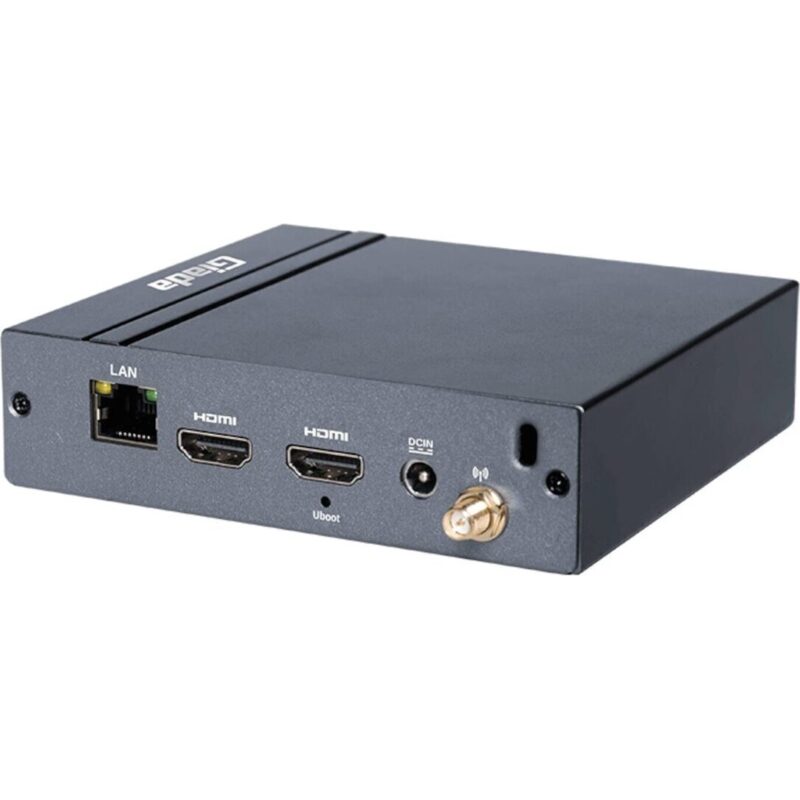

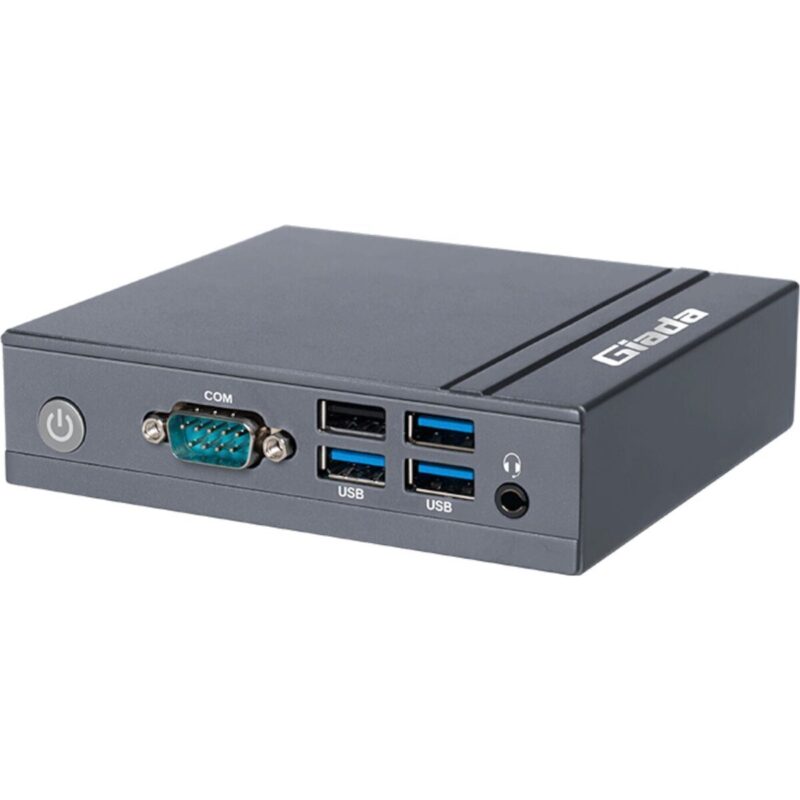

Giada DN24 Raspberry Pi Compact Signage Player – CM4 Lite

R3899,00

Giada DN24 Raspberry Pi Compact Signage Player – CM4 Lite

Available on backorder

Delivery
⏳Sourced to order — price to be confirmedThis item is sourced to order. Place the order now at no charge — our team will confirm the firm price, delivery ETA and availability within 48 hours and send you a secure link to complete payment. You are not charged until you approve the final price.
Add to Cart
Giada DN24 Raspberry Pi Compact Signage Player - CM4 Lite
Giada DN24 Raspberry Pi Compact Signage Player - CM4 Lite
R3899,00

Free local shipping on all orders over R1500

  • Watches and Jewellery have a 7-21 day delivery time. Check with us to make sure if you have a gift deadline.
  • Expedited shipping available for all other items at $45 anywhere in the world, immediate clearance eft only. 4-5 days processing time.
  • International orders shipping calculated pre-checkout, maximum $45.
Guaranteed Safe Checkout
Watches size guide
Men's clothing size guide

1. Measure your chest

With good posture, wrap a measuring tape under your arms around your back and take the measurement at fullest part of your chest. Be sure to keep the measuring tape parallel to the floor.

2. Measure your waist

Our waist can be a difficult area to measure! The natural waistline is halfway between the lowest rib you can feel and the top, outside edge of the hip bone. One trick might help you find this spot are to stand up straight and tilt over. Where your torso creases is where your waistline is.

Chest Waist Length
XS 33-35 28-30 32
S 35-37 30-32 32
M 37-39 31.5-33.5 34
L 40-42 34.5-36.5 34
XL 43-45 37.5-40 36
XXL 46-49 41-44 36

Elevate your digital signage deployments with the Giada DN24 Raspberry Pi, a compact and energy-efficient media player tailored for cost-effective signage solutions. Powered by the Raspberry Pi® CM4 module, this robust device is engineered for seamless 24/7 operation, making it ideal for retail displays, corporate communications, transportation hubs, and educational environments.

The Giada DN24 Raspberry Pi combines an ultra-slim form factor with a silent, fanless design, delivering high performance without compromising reliability. It supports 4K video output via HDMI and can power an additional Full HD display via GPIO DSI, making it a versatile solution for dual-display signage requirements. Integrated with Giada’s patented JAHC technology, it ensures automatic power-on and scheduling, enhancing system stability in unattended environments.

Designed for deployment flexibility, the Giada DN24 Raspberry Pi supports VESA mounting and offers extensive connectivity, including dual USB ports, RJ45 LAN, and expansion options through GPIO, UART, and I2C. Whether used in smart kiosks or menu boards, this unit empowers businesses to deliver engaging content with minimal maintenance.

Built for integration, scalability, and long-term reliability, the Giada DN24 Raspberry Pi is the go-to signage player for solution providers seeking an affordable and high-performing media platform.

FEATURES:

  • Powered by Raspberry Pi CM5

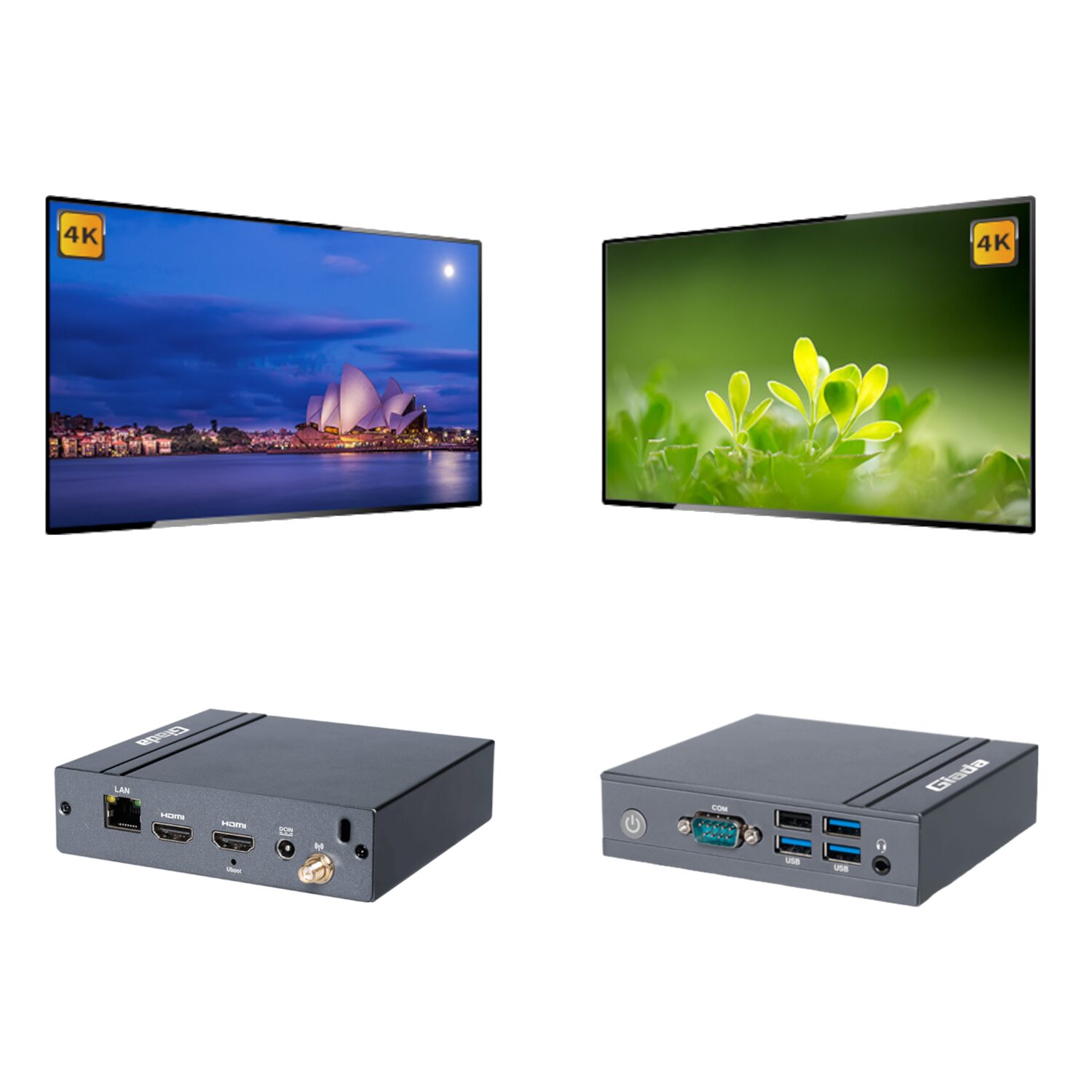

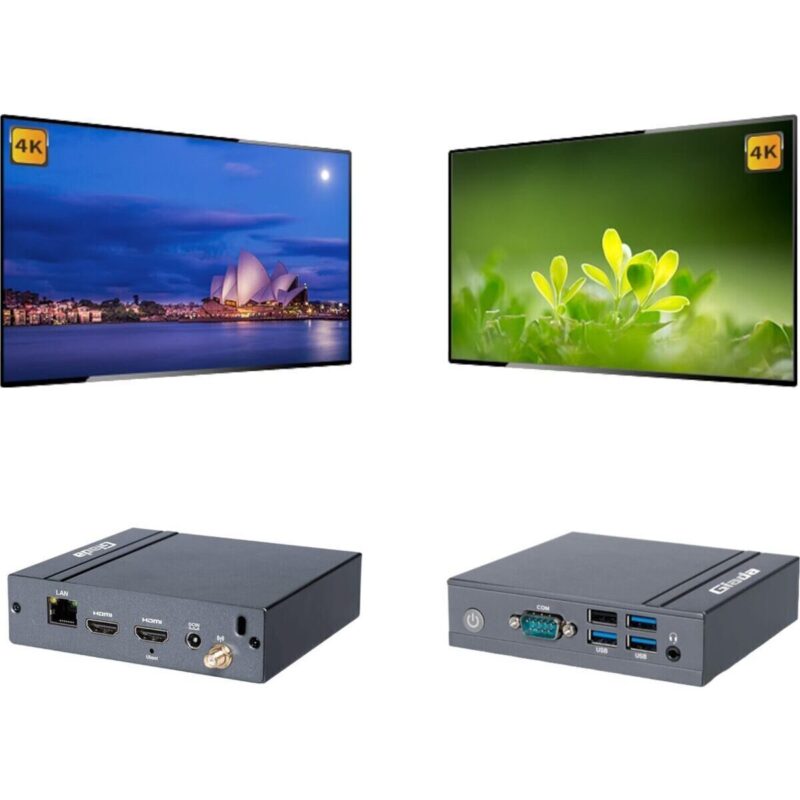

  • Dual-display support outputs @ 4K via HDMI and Full HD via GPIO DSI, ideal for multi-screen digital signage
  • Ultra-compact, slim, fanless design and silent operation for space-constrained and noise-sensitive environments
  • JAHC hardware watchdog ensures automatic power-on, power failure recovery, and scheduled power management
  • Flexible connectivity options include USB 3.2 Gen 1, USB 2.0, HDMI 2.0a, RJ45 LAN, GPIO, UART, and I2C
  • VESA mount supports integration into kiosks, POS systems, and digital signage enclosures
  • Built for 24/7 operation, industrial-grade reliability for continuous use across high-demand environments
  • Energy-efficient, low-power consumption design tailored for scalable, cost-effective deployments

SPECIFICATIONS:

  • Compute Module
  • Compute Module: Raspberry Pi CM4 Lite
  • Frequency: 1.50 GHz
  • Processing units: 4 Cores Cortex-A72
    Memory on Module: 2 GB, Onboard LPDDR4-3200 MHz
  • System
  • Storage: 32 GB, Onboard eMMC (Optional: 64 GB)
  • Watchdog Timer: Yes
  • Auto Power On: Yes
  • RTC: Set up independently every day, a week as a cycle
  • Power Requirement: DC-INN, 12 V/2.08 A
  • Dimensions: 11.6 x 10.6 x 3 cm
  • Construction: Metal
  • Operating System: Raspberry Pi OS
  • Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
  • Humidity: 95% @ 45°C (non-condensing)
  • Certifications: CE, FCC Class B, UKCA
  • Network
  • Network Controller: 1 x Pef7071 PHY
  • Ethernet Interface: 1 x RJ45
  • Wi-Fi/BT: Onboard Wi-Fi/BT module (2.4 GHZ/5 GHz)
  • Mobile Network: NA
  • Display
  • GPU: Video Core VI
  • Graphic Engine: OpenGL ES3.0, Vulkan 1.0
  • Multi-Media:
    • 4K60 H.265 video decoders
    • 1080p60 H. 264 decoders
    • 1080p30 H.264 video encoders
  • Display Interface: 2 x HDMI2.0 (Max. 3840 x 2160 @60 Hz)
  • I/O interface
  • USB:
    • 3 x USB3.2 Gen
    • 1 x USB2.0
  • Serial Port: 1 x RS232
  • Audio: 1 x 2-IN-1 headset (MIC-IN & AUDIO-OUT)
  • Button:
    • 1 x Power on
    • 1 x U-Boot
  • Antenna:
    • 1 x Connector for Wi-FI/BT
    • 1 x Reserved

WHAT’S IN THE BOX:

  • Giada DN24 Raspberry Pi Compact Signage Player – CM4 Lite

Additional information

Weight ,938 kg
Dimensions 24 × 19 × 7 cm
SKU: DN24-CM4 Category: Brand:
