Flagship Multi-Sensor Aerial Intelligence

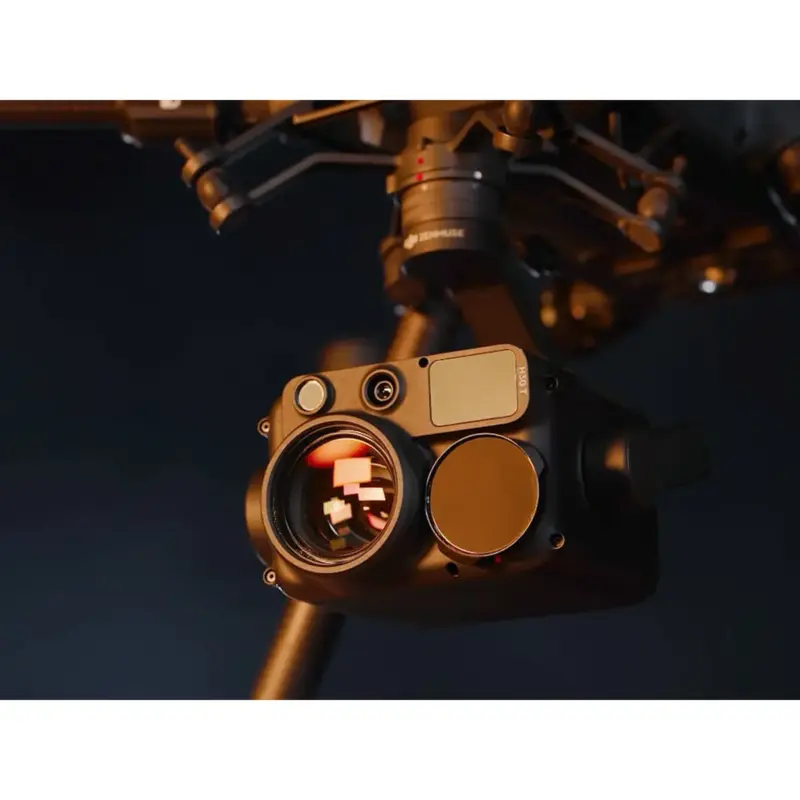

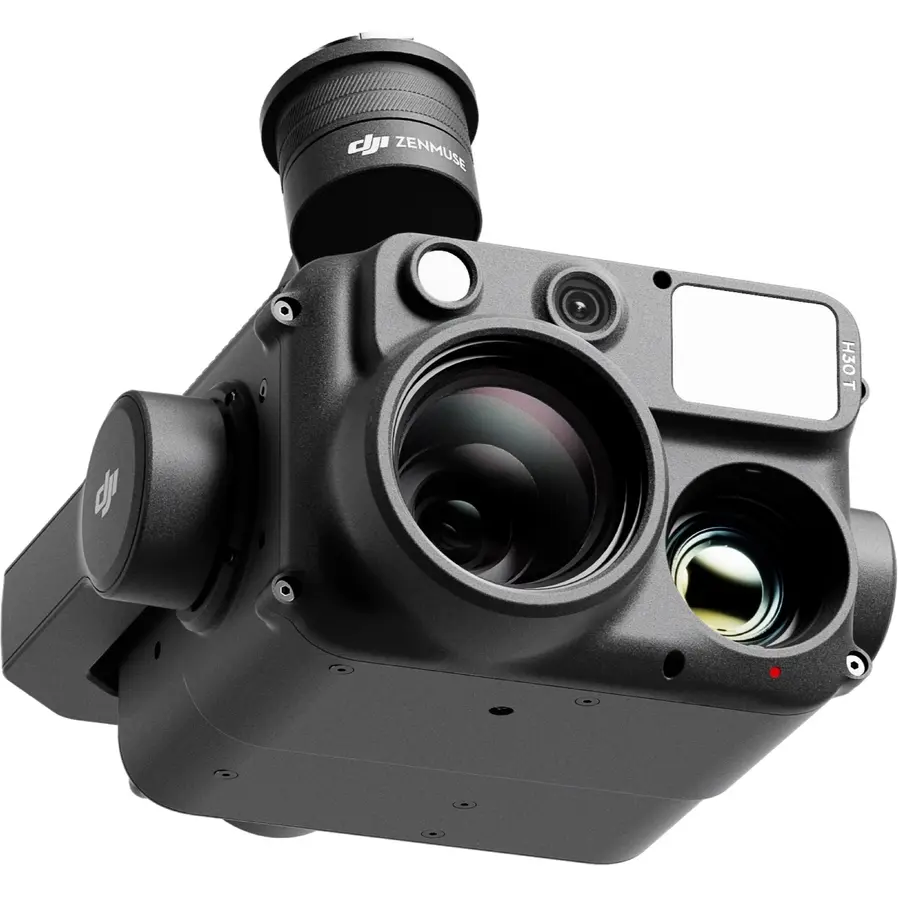

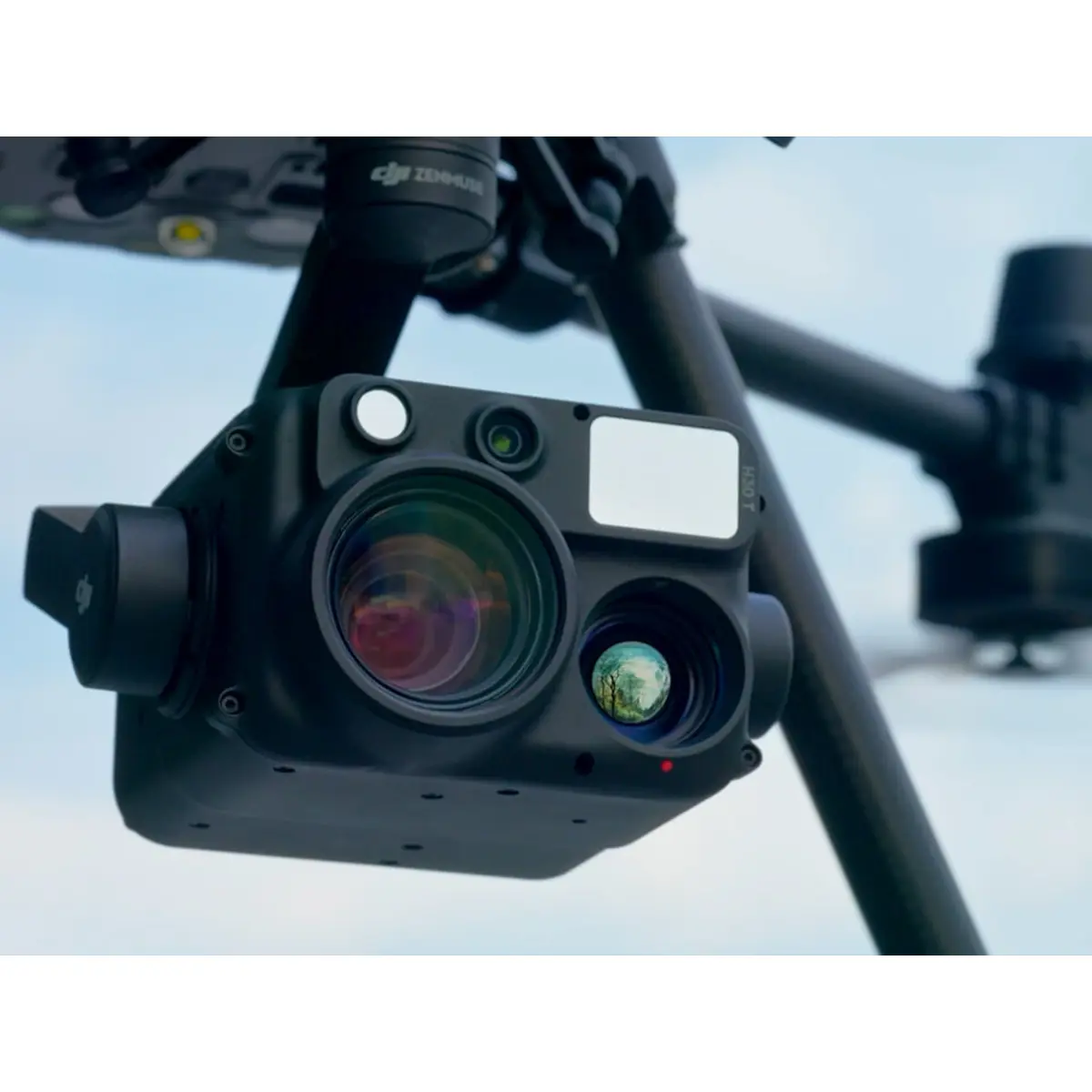

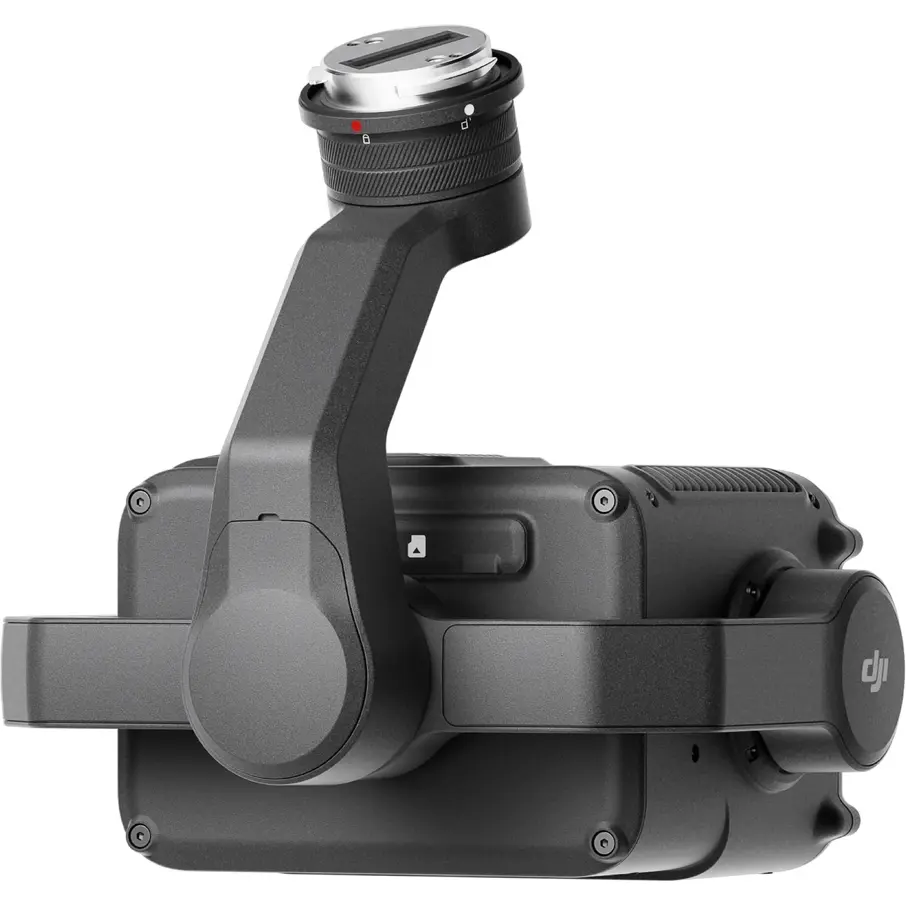

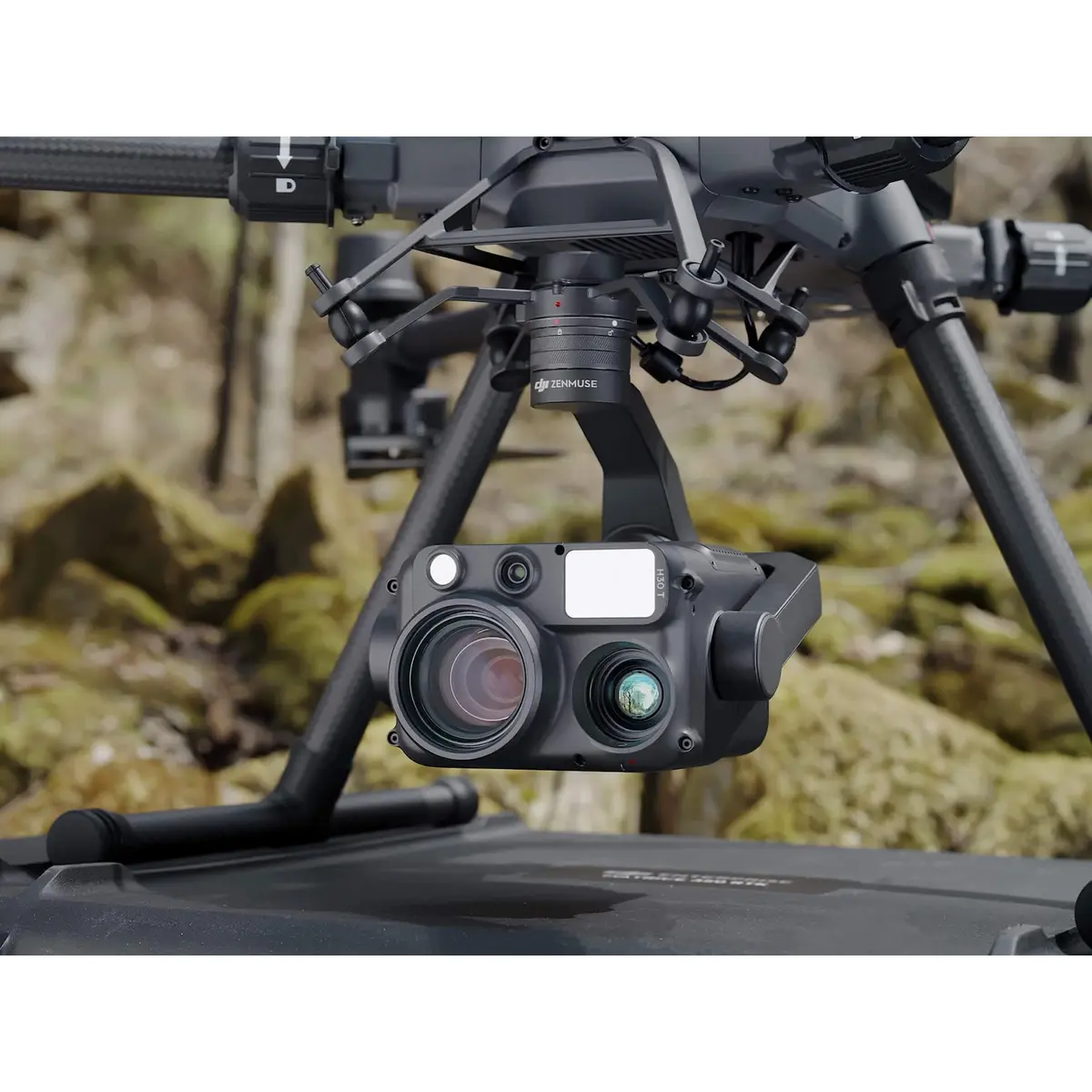

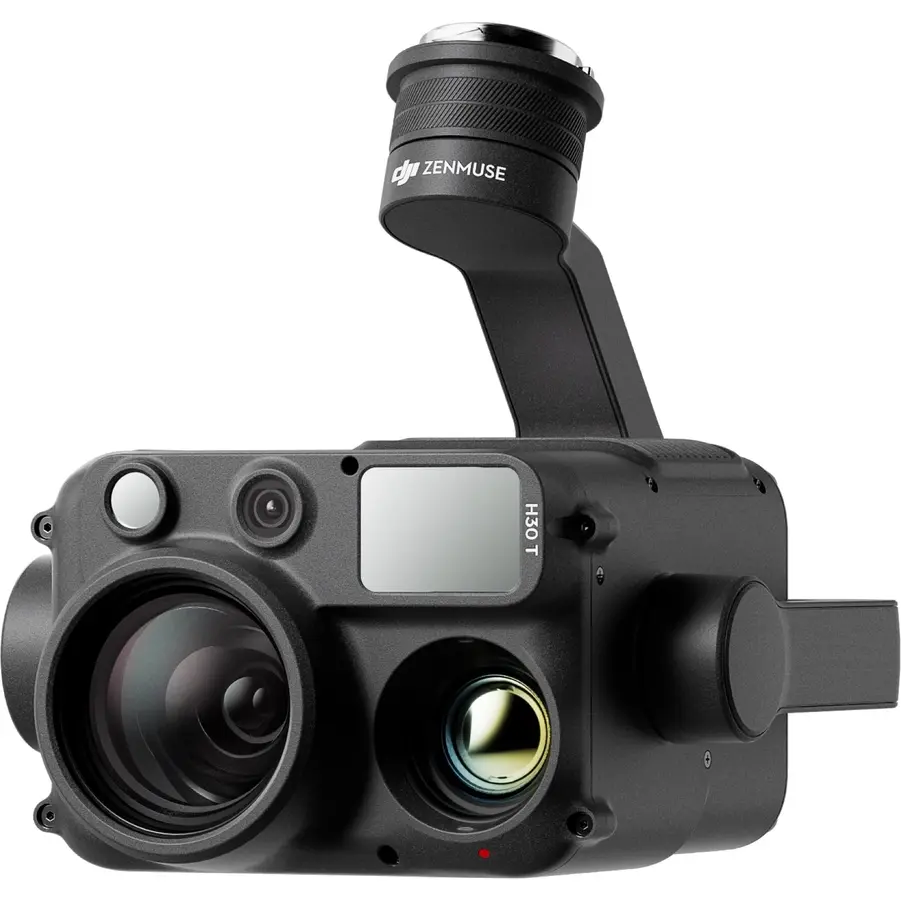

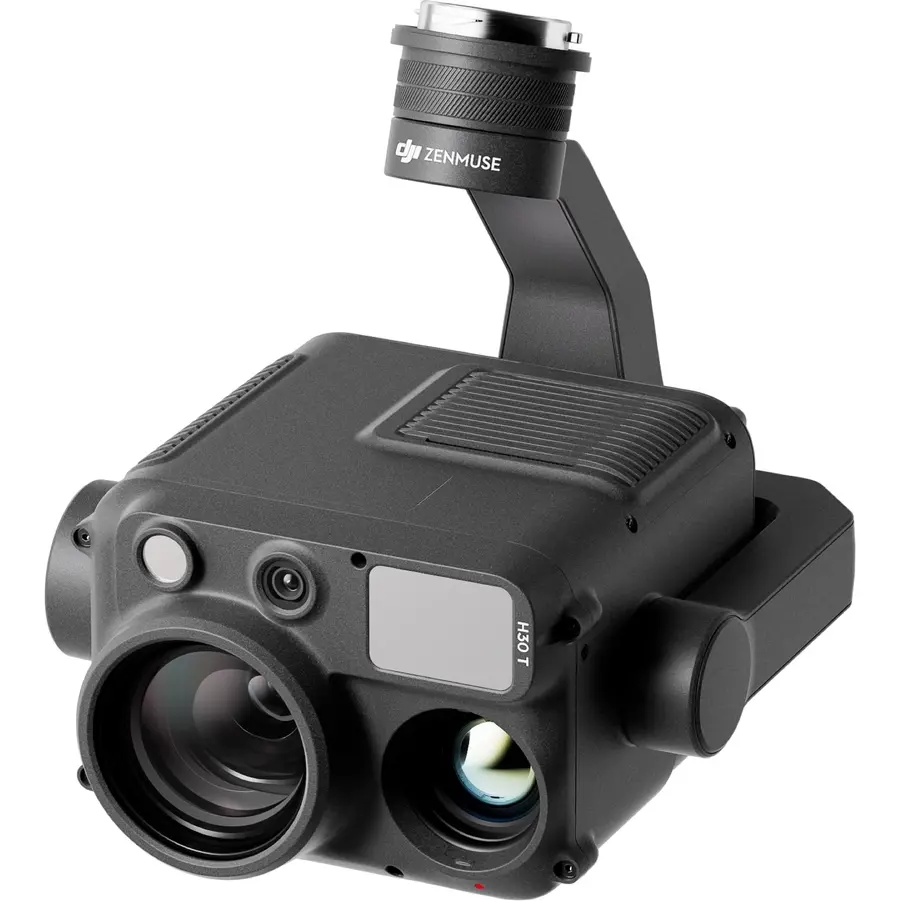

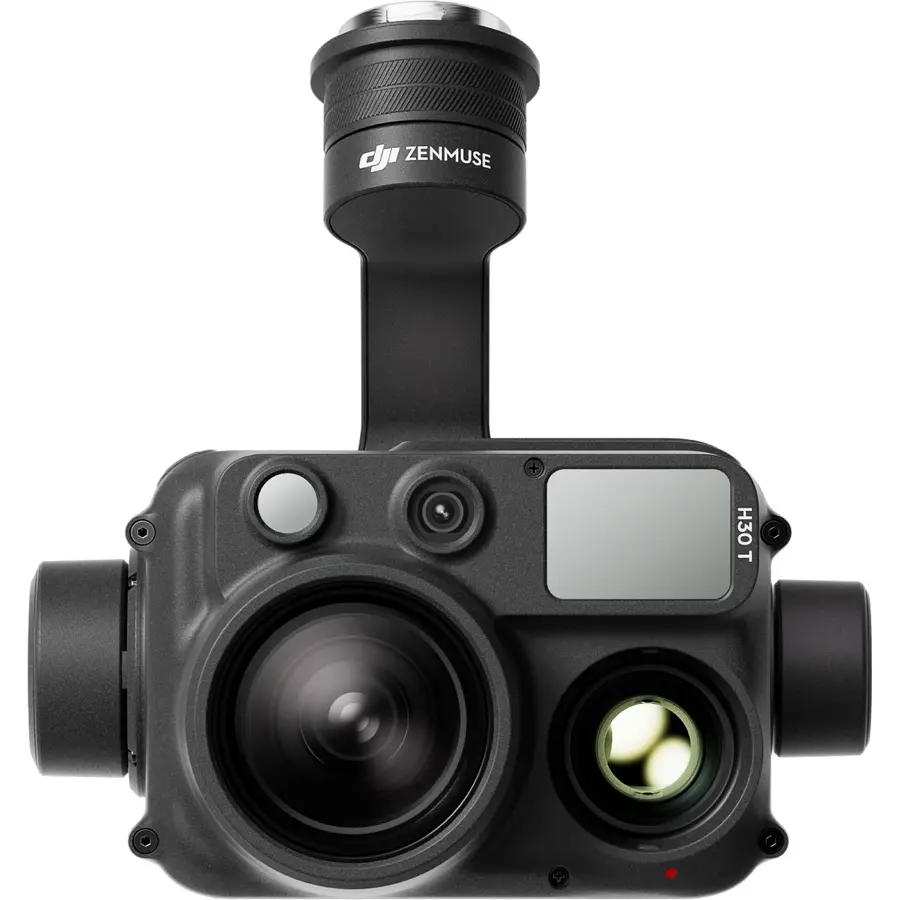

The DJI Zenmuse H30T (SKU: DJI-ZENMUSE H30T) is a technological powerhouse designed for the most demanding enterprise missions. Integrating five cutting-edge modules—zoom, wide, thermal, laser rangefinder, and NIR light—it sets a new global standard for perception. Built for the Matrice 350 RTK and M300 RTK platforms, the H30T is an industrial-grade tool that overcomes the challenges of visibility, distance, and environmental extremes.
Key Features & Professional Benefits

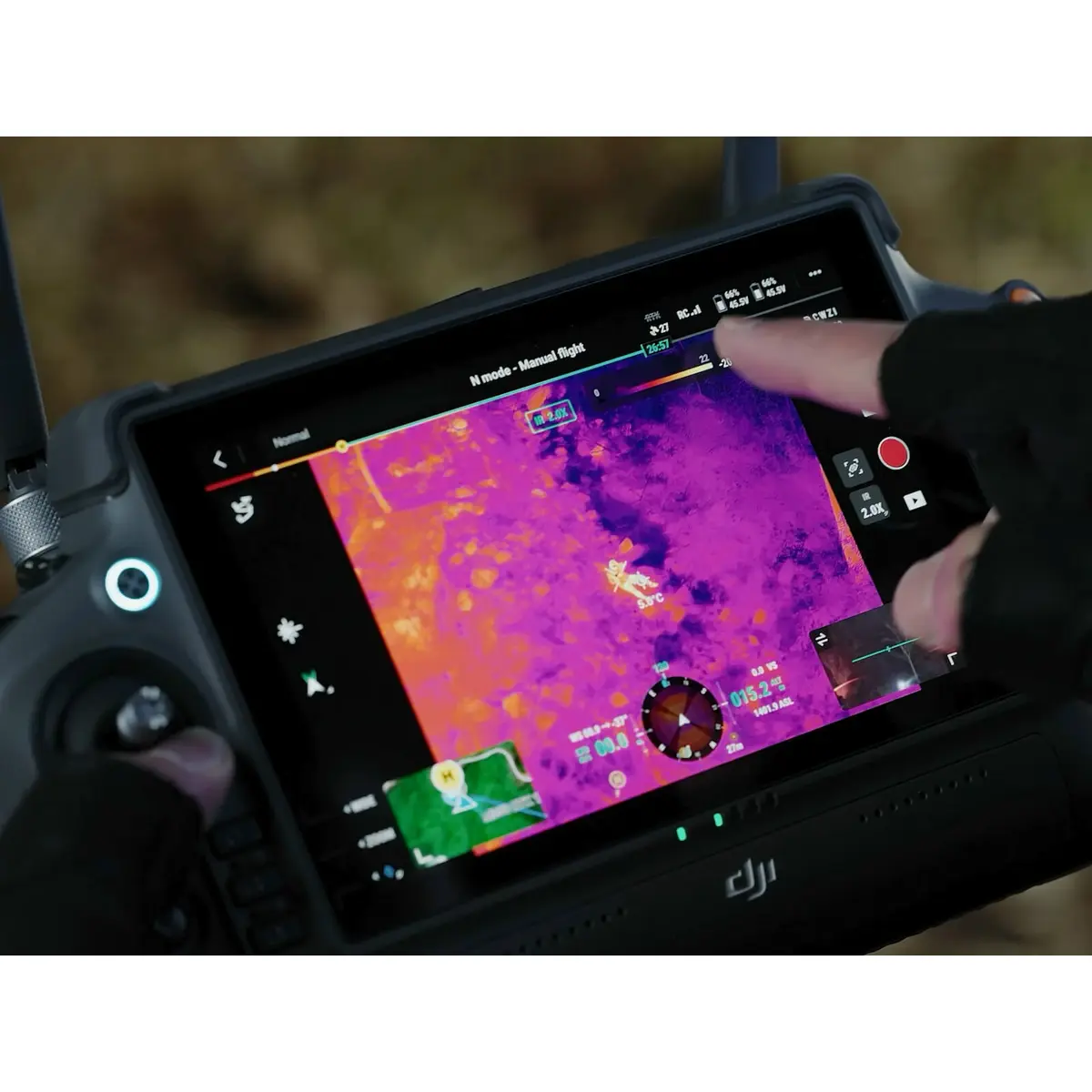

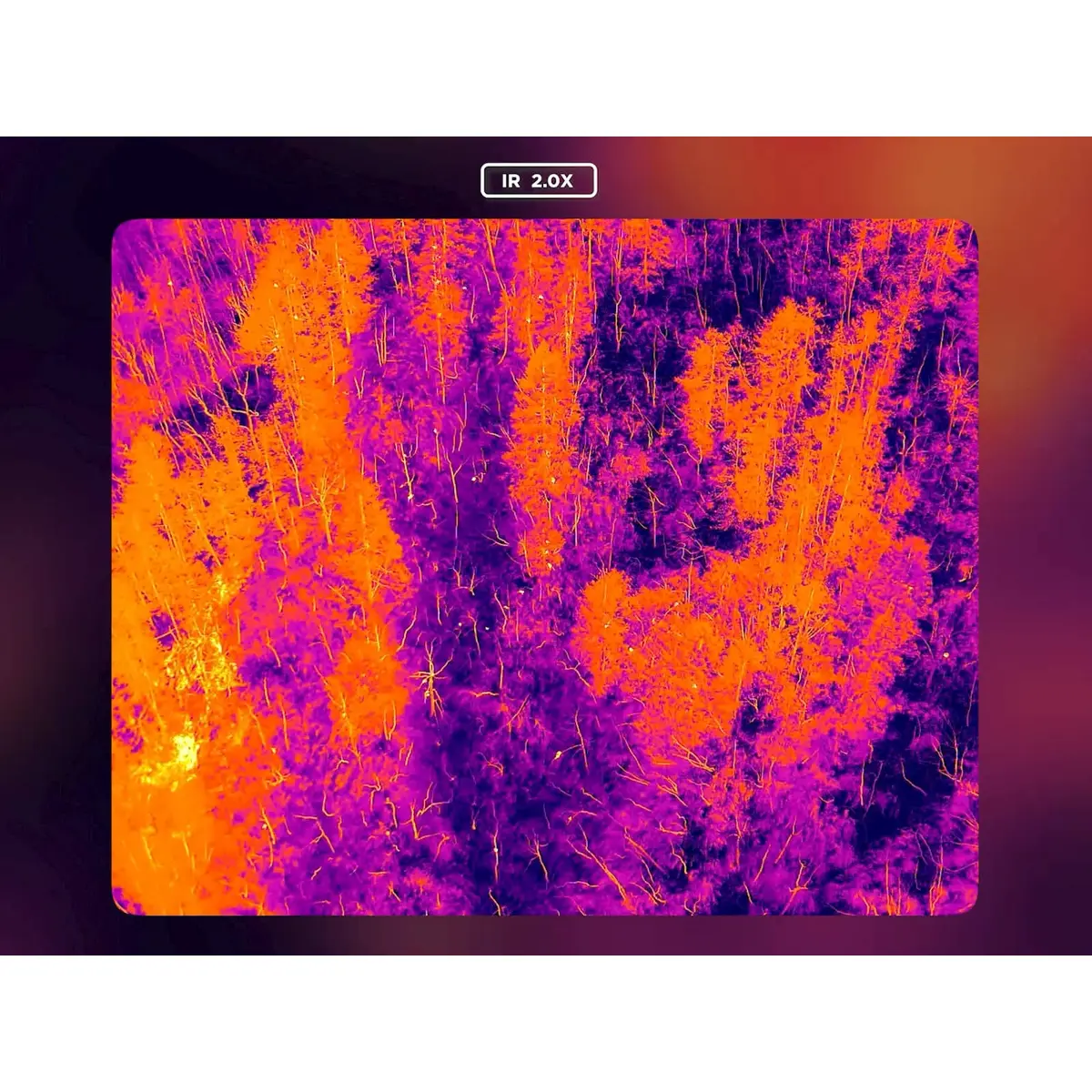

- Ultra-High Thermal Resolution: 1280×1024 radiometric sensor provides 4x the detail of previous models for precise thermographic analysis.
- Exceptional Zoom Capability: 40MP zoom camera with 34x optical and 400x digital zoom for safe, long-distance observation.
- Full-Colour Night Vision: Enhanced low-light sensors and AI algorithms deliver clear, coloured imagery in near-total darkness.
- 3000m Laser Rangefinder: Accurately capture subject GPS coordinates, altitude, and distance from up to 3km away.
- NIR Auxiliary Light: Provides covert infrared illumination for enhanced contrast in nighttime search and rescue operations.
- IP54 Weather Protection: Dust and water-resistant chassis operational from -20°C to 50°C.
Technical Specifications
| Feature | Specification |
|---|---|
| Thermal Sensor | Uncooled VOx Microbolometer (1280×1024 @ 30fps) |
| Zoom Camera | 1/1.8-inch CMOS, 40MP, 400x Max Zoom |
| Wide Camera | 1/1.3-inch CMOS, 48MP, 24mm Equivalent |
| Laser Rangefinder | Range: 3m to 3000m | Accuracy: ±(0.2m + dist × 0.15%) |
| Thermal Range | -20°C to 1600°C (with IR Density Filter) |
| Weight | 920g ± 5g |
| Security | AES-256 Encryption & Security Code Protection |
Intelligent Mission Management

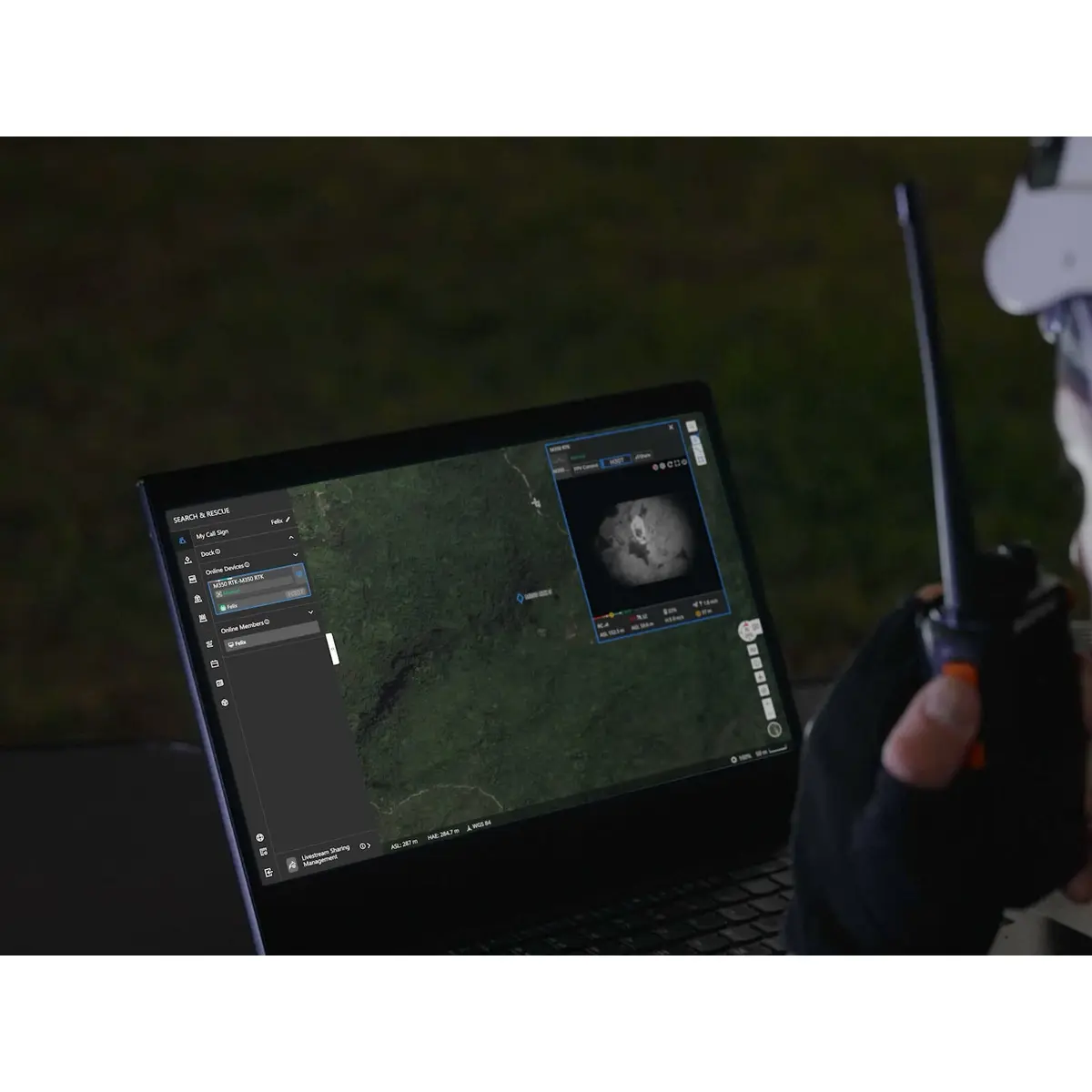

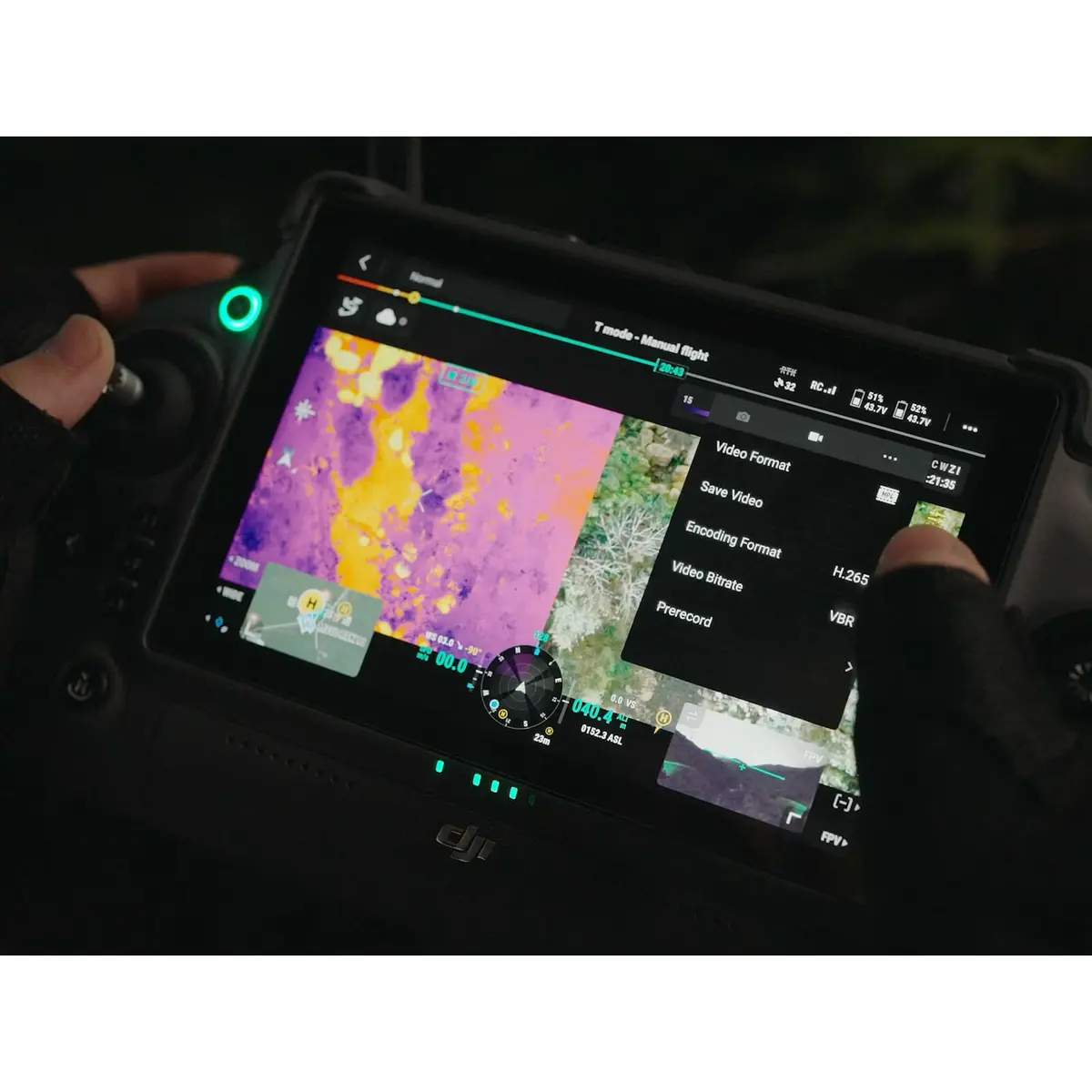

The H30T is fully integrated with DJI FlightHub 2, allowing for seamless air-to-ground collaboration. It supports Pre-Recording (up to 30 seconds), ensuring critical moments are captured before the record button is even pressed. With features like Electronic Dehazing and Smart Capture, the payload automatically adjusts for fog, smog, or high-dynamic-range lighting conditions, ensuring every frame is actionable intelligence.
Note: The Zenmuse H30T is a precision industrial instrument. Use with the Matrice 300 RTK requires the DJI RC Plus remote controller and the latest firmware updates. Local South African enterprise support and DJI Care packages are available separately.
