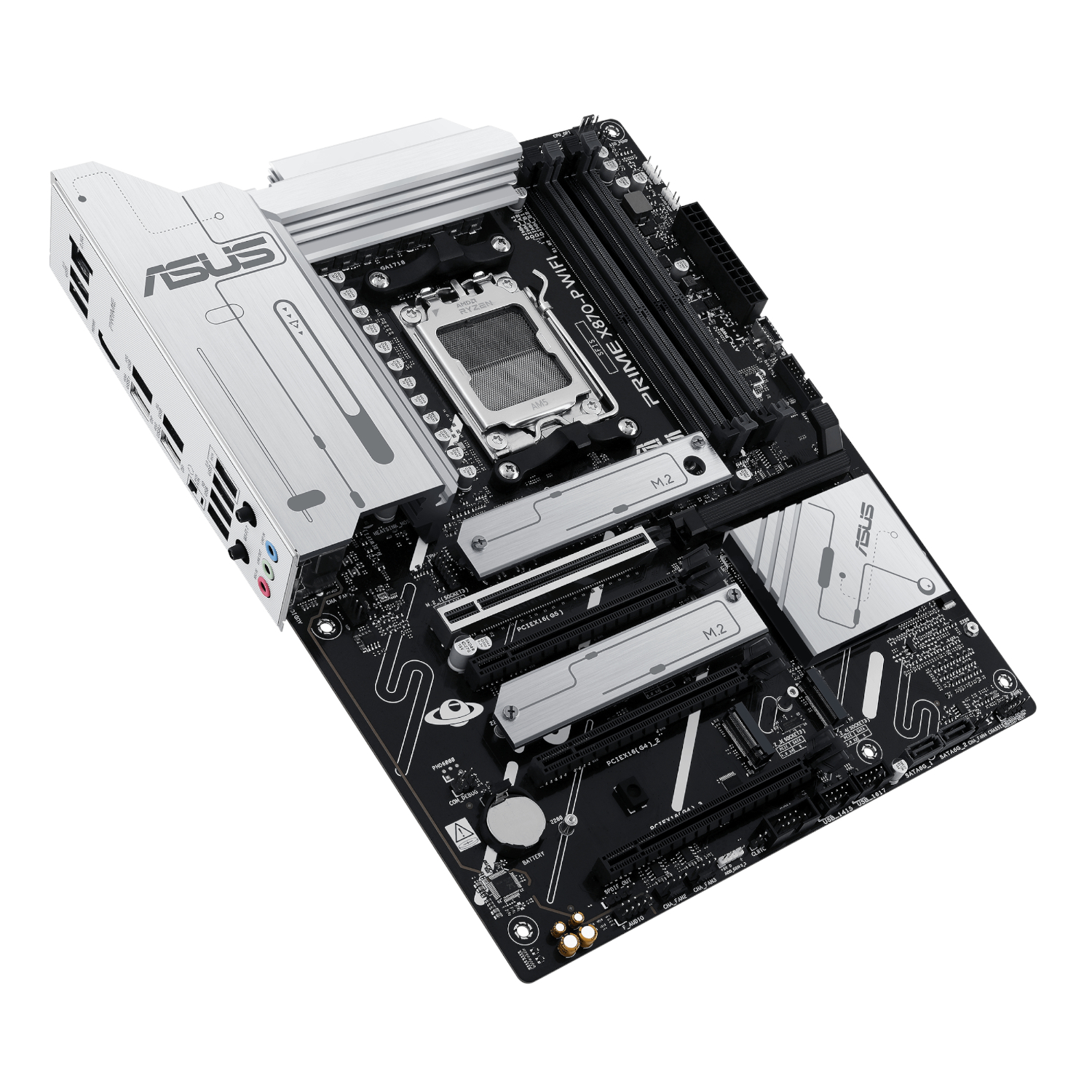

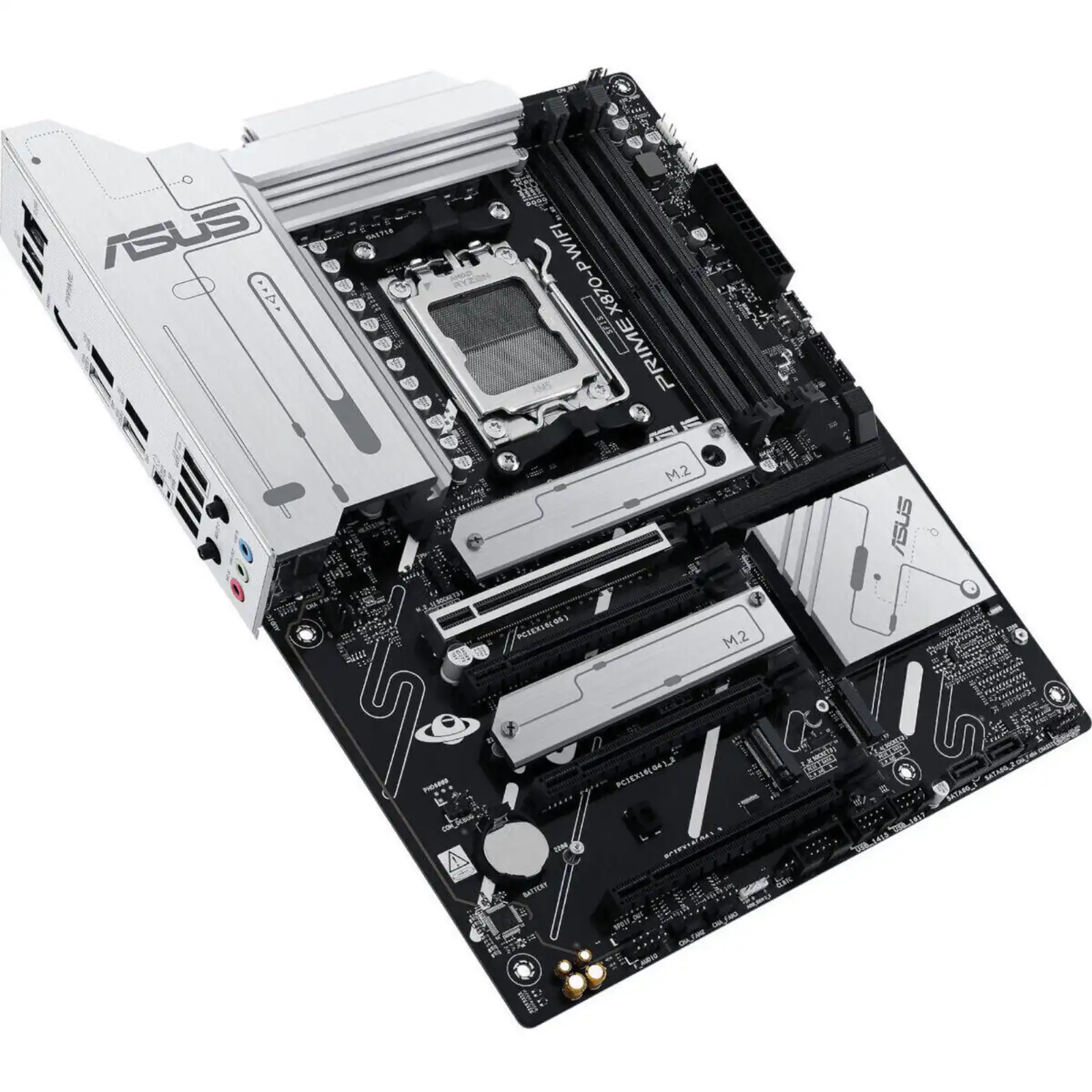

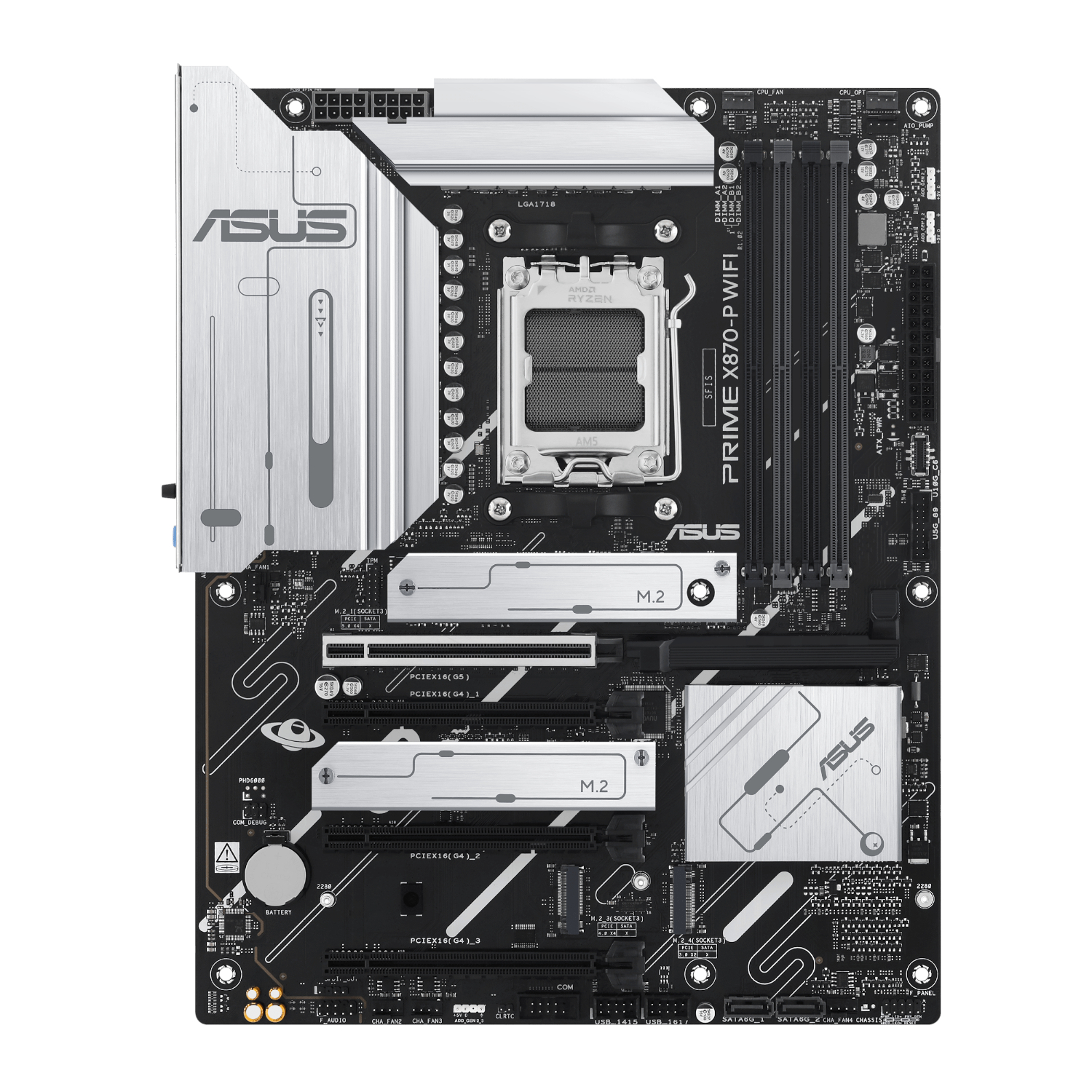

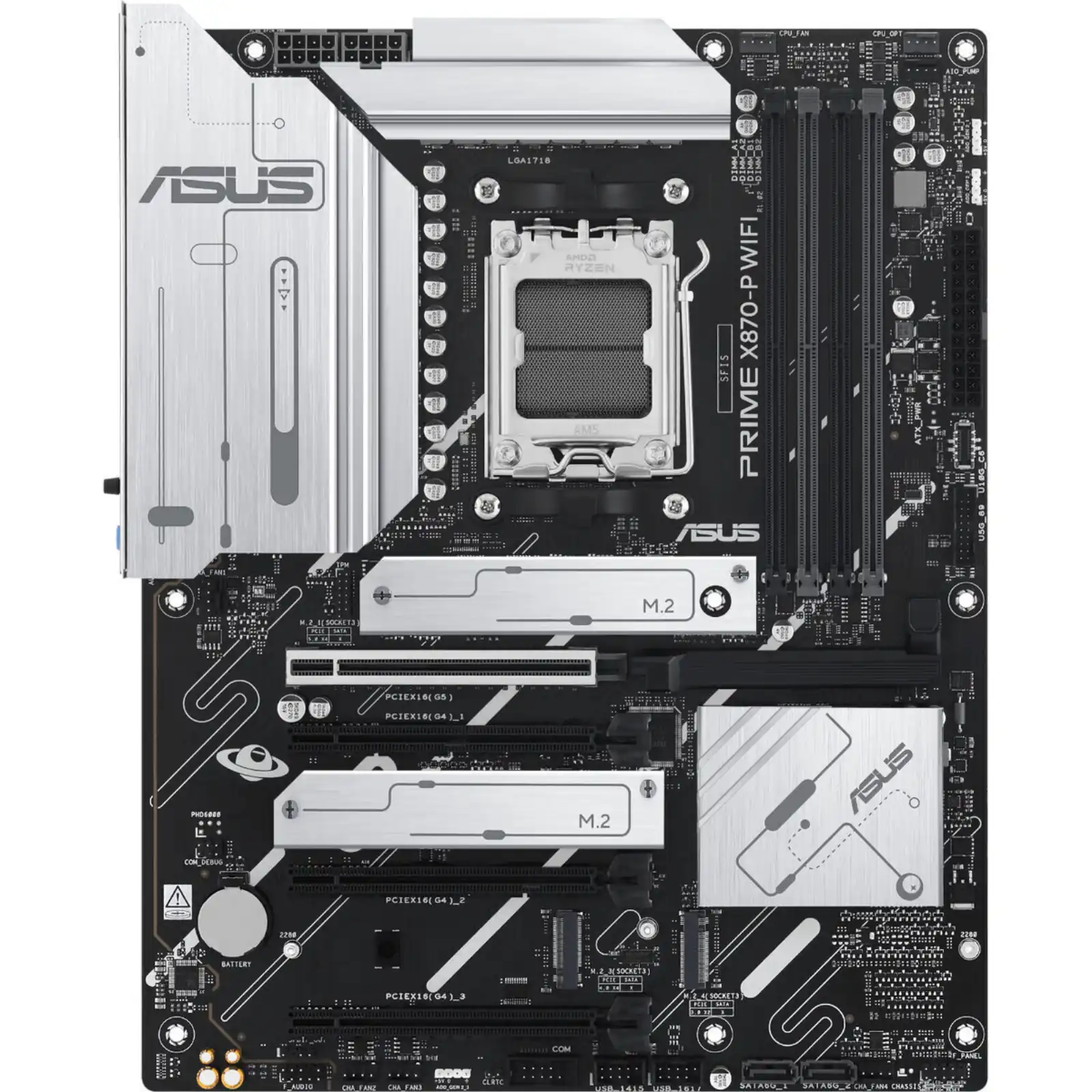

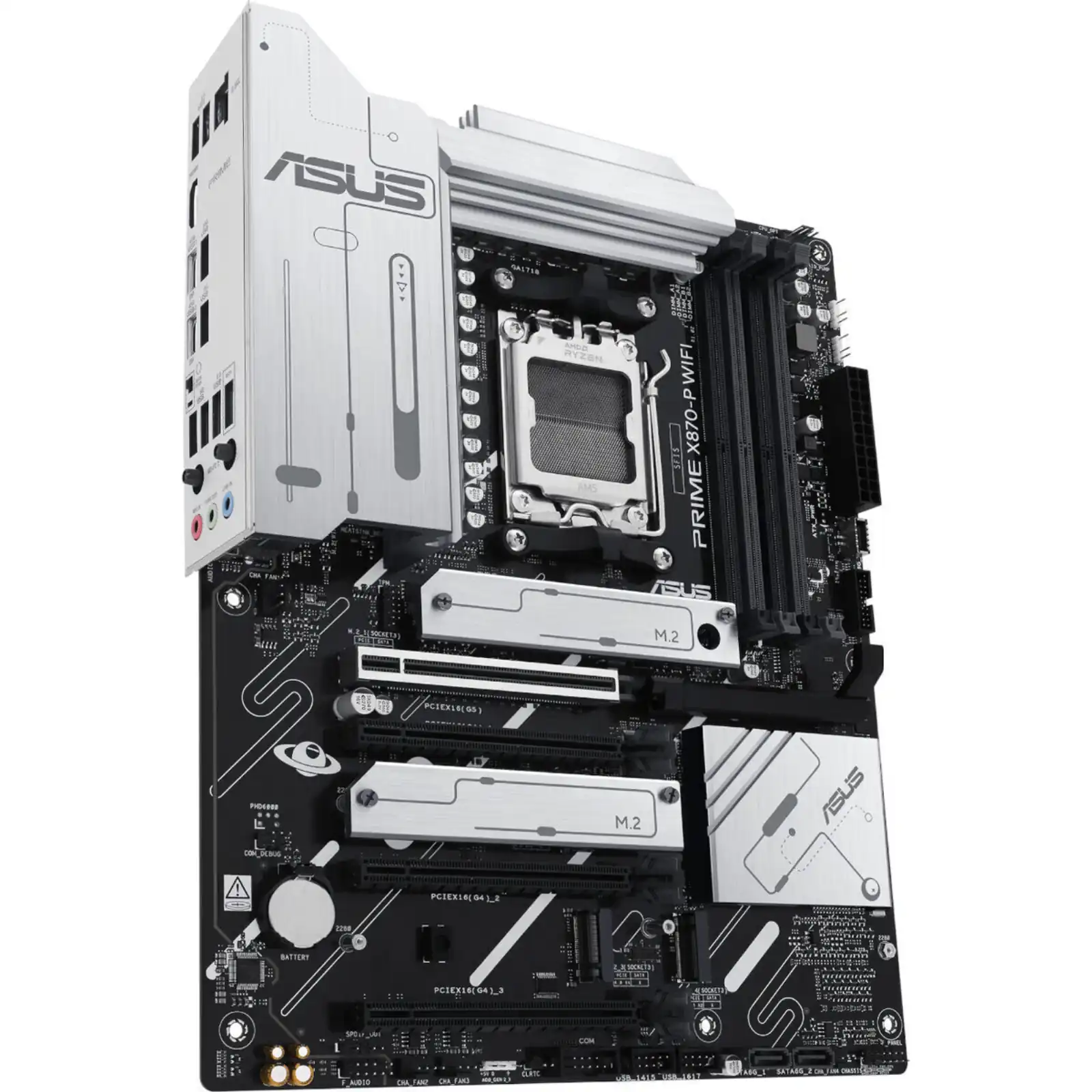

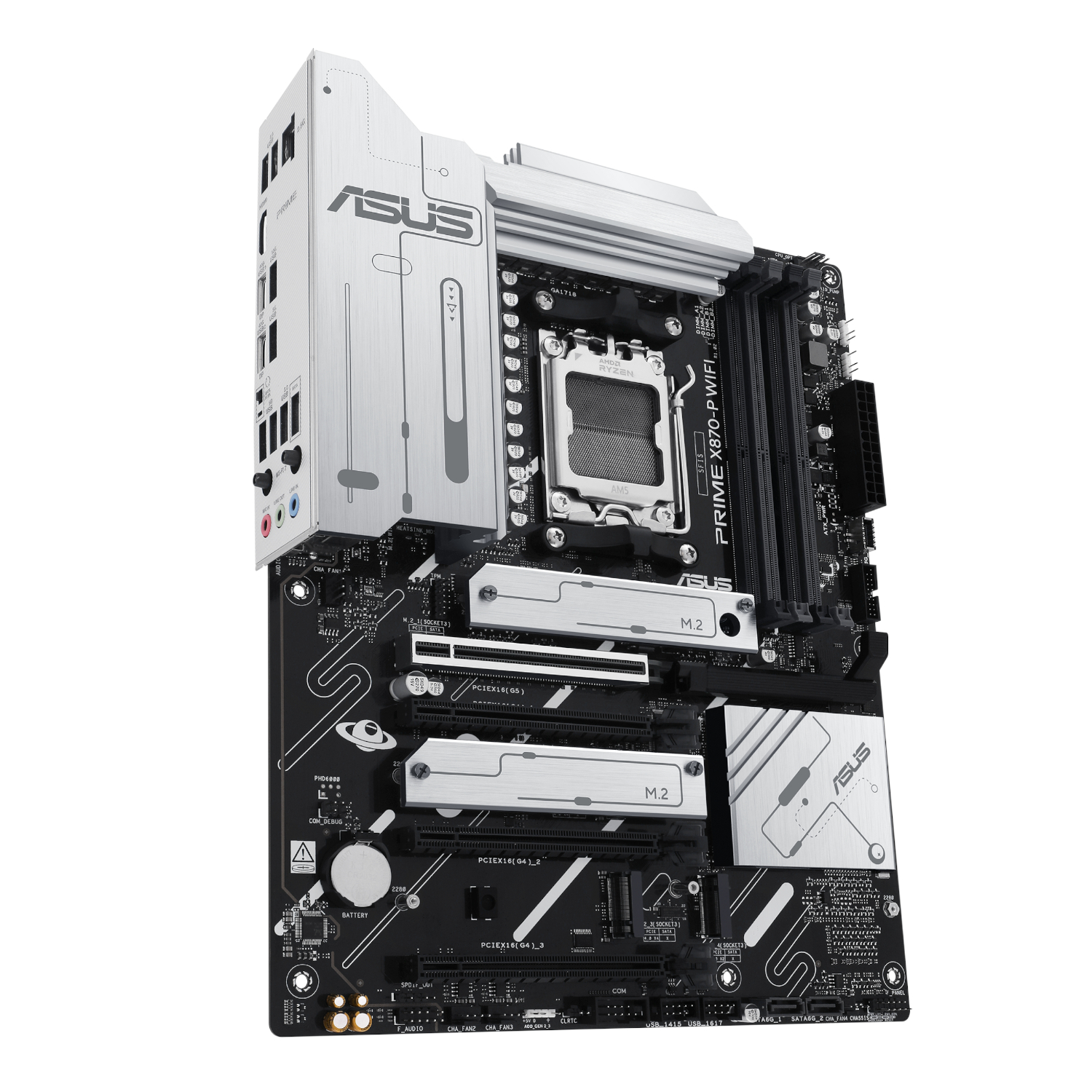

Asus PRIME X870-P WIFI ATX Gaming Motherboard

The ASUS PRIME X870-P WIFI is expertly crafted to tap into the full potential of AMD’s next-generation Ryzen™ 9000, 8000, and 7000 Series processors. Built with stability, precision, and power efficiency in mind, this ATX motherboard features a robust 14+2+1 power stage design with 80A-rated MOSFETs, backed by an intelligent Digi+ VRM and advanced AI PC-ready architecture. ASUS AI Solutions—like AI Advisor, AI Cooling II, and AI Networking II—empower users to optimize system performance and cooling dynamically, all through intuitive software tailored for gamers and productivity users alike.

Designed with DDR5 performance in focus, the PRIME X870-P WIFI supports memory speeds up to 8000+ MT/s (OC) with AMD EXPO™ and ASUS Enhanced Memory Profile (AEMP) compatibility. Whether you’re running high-end gaming rigs or productivity-focused workstations, memory tuning is effortless thanks to a wide array of UEFI BIOS tools. Four onboard M.2 slots futureproof your storage setup—one PCIe 5.0 slot offering speeds up to 128Gbps, two PCIe 4.0 slots up to 64Gbps, and one PCIe 3.0 slot for additional expansion flexibility—ensuring fast system boot times and snappy application performance.

Stay thermally efficient even under heavy workloads, thanks to premium VRM heatsinks, passive chipset cooling, hybrid fan headers, and an AiO pump header—giving your system the airflow it needs to stay cool and stable. The multi-layer PCB layout and 8+8-pin solid-core CPU power connectors enhance durability and power efficiency, enabling higher overclocking headroom. ASUS’ integrated power-saving suite lets users fine-tune energy usage, dim RGB lighting, and optimize fan curves with a single click, reducing thermal footprint while maximizing long-term performance gains.

Equipped with Wi-Fi 7, Realtek 2.5Gb Ethernet, and dual USB4® ports, the PRIME X870-P WIFI redefines future-forward connectivity. Experience low-latency networking with Multi-Link Operation (MLO) across the 2.4, 5, and 6GHz bands, plus enjoy high-speed data transfers at up to 40Gbps—perfect for external storage or dual 4K display output. DIY assembly is simplified with ASUS Q-Design innovations like Q-LED Core for troubleshooting and streamlined cable installation. From customizable Aura Sync RGB headers to a durable ATX form factor, this board is built to deliver power, personalization, and peak performance for Windows® 11 systems.

FEATURES:

• AMD AM5 Socket: Ready for AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
• Ultrafast Connectivity: Wi-Fi 7, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB4®, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
• ASUS Enhanced Memory Profile (AEMP) for enhanced DDR5 performance
• ASUS Q-Design and EZ PC DIY for easily connecting and customizing your hardware
• Comprehensive Cooling: VRM heatsink, Passive chipset heatsink, hybrid fan headers and AiO pump header
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers, easily synced with Aura Sync-capable hardware

SPECIFICATIONS:

• Socket: AM5
• CPU: Supports AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset: AMD X870 Chipset
• DDR5 Memory: Support DDR5 up to 8000+MT/s (OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory, supports AMD Extended Profiles for Overclocking (EXPO^™), supports ASUS Enhanced Memory Profile (AEMP)
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 256
• PCI-E 5.0 x16: 1
• PCI-E 4.0 x16: 3
• SATA 6G: 2
• M.2 Slot: 4
• LAN: Realtek 2.5Gb Ethernet, ASUS LANGuard
• Wireless and Bluetooth: Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Bluetooth v5.4

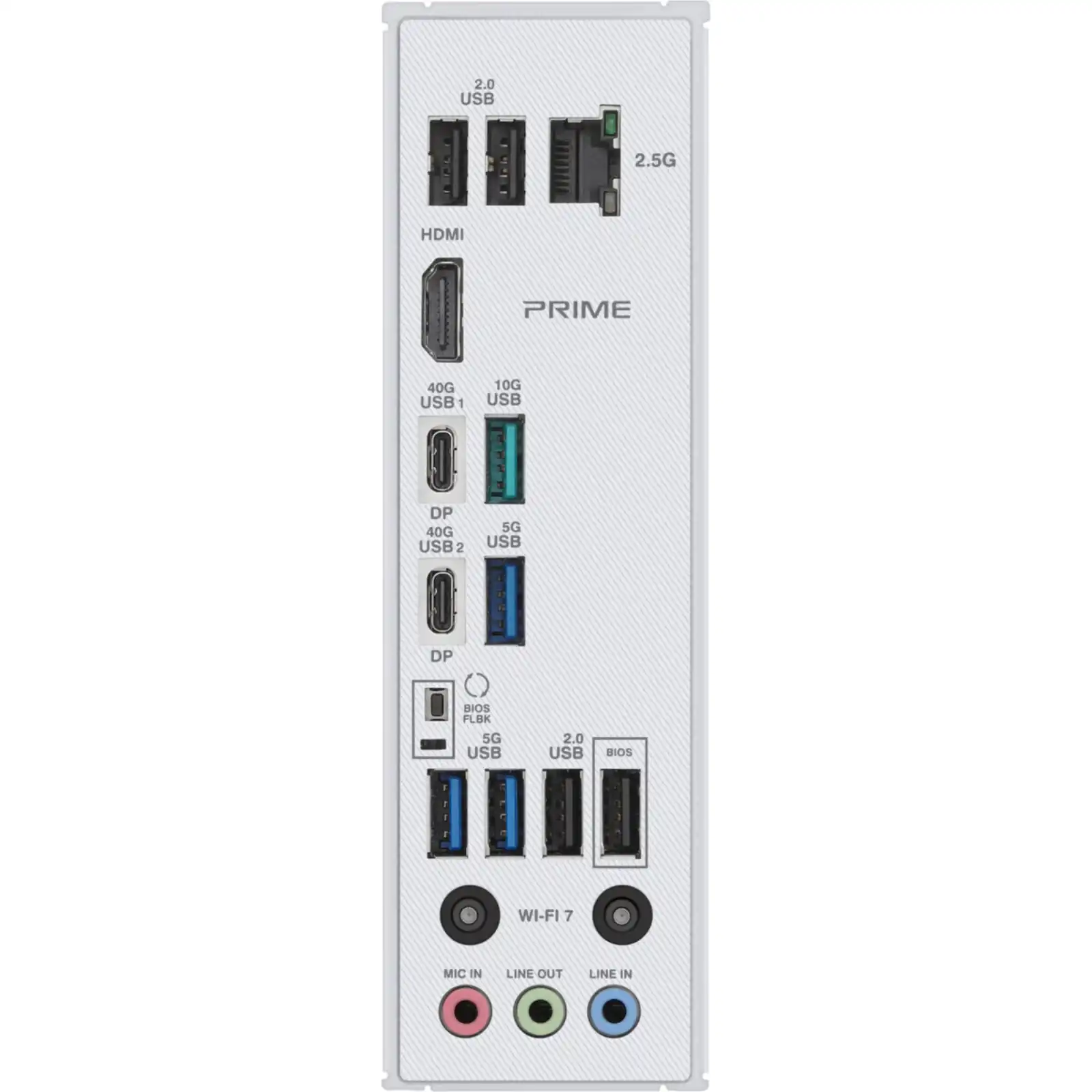

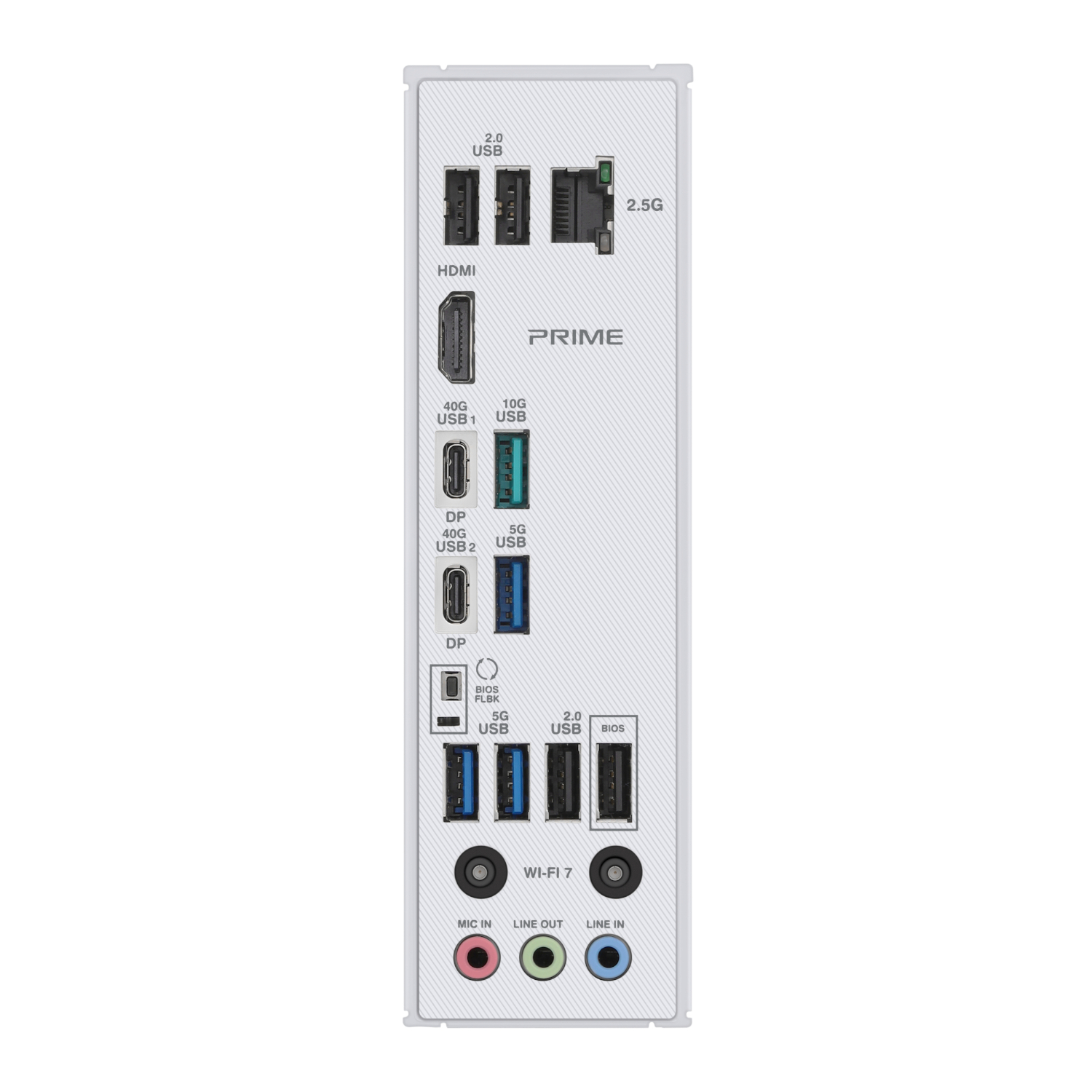

• USB Ports Rear:
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 3 x USB 5Gbps ports (3 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• USB Ports Front:
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 11

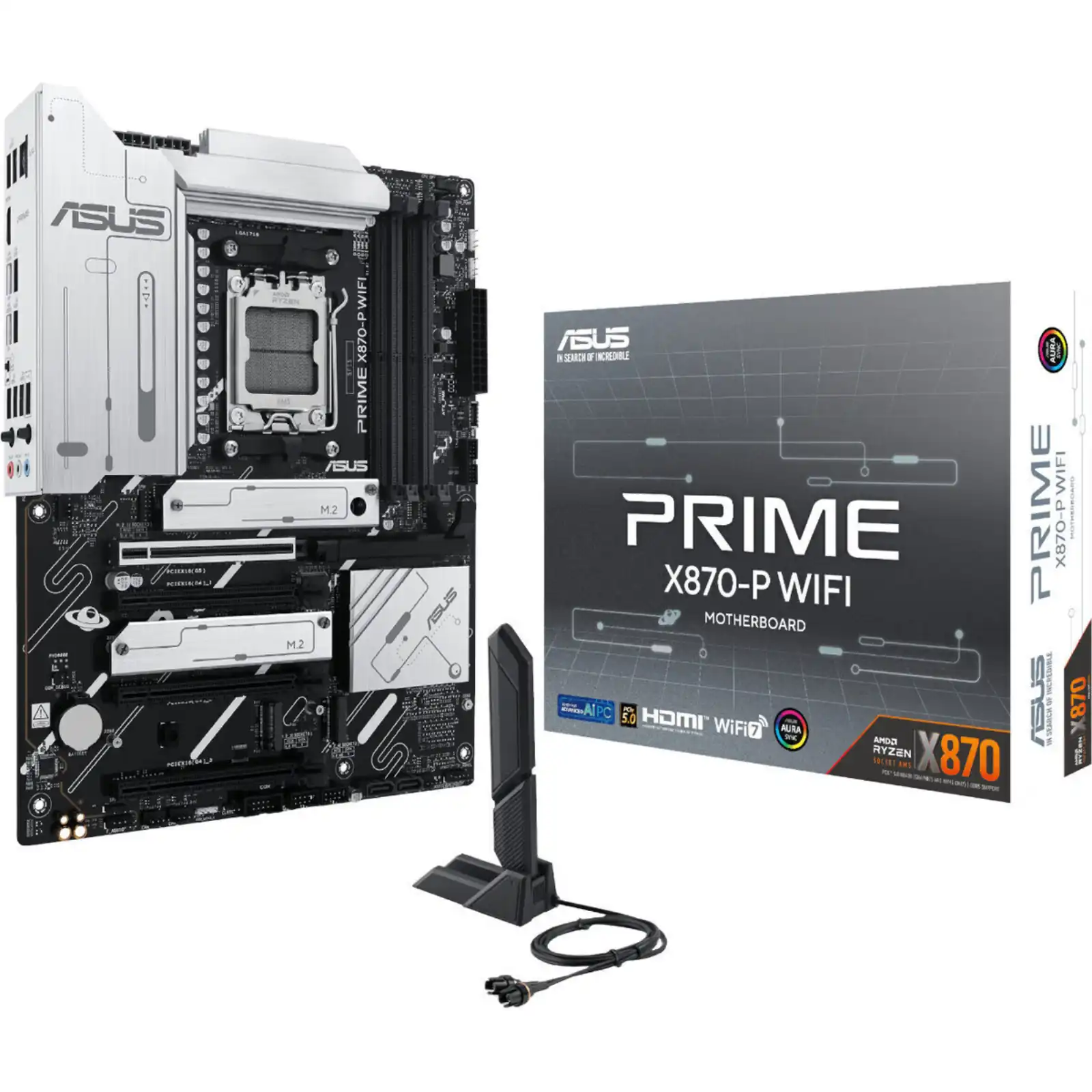

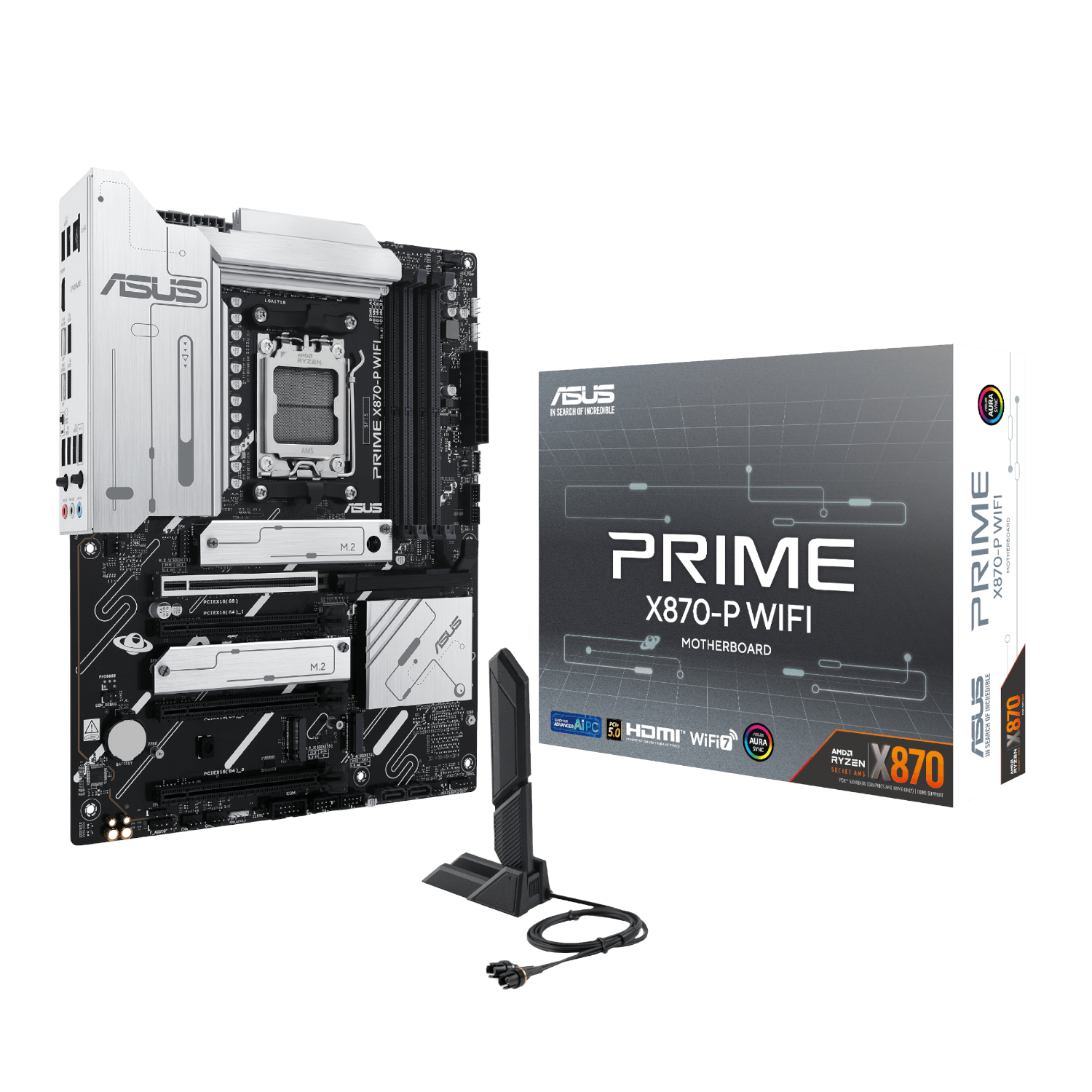

WHAT’S IN THE BOX:

• Asus PRIME X870-P WIFI ATX Gaming Motherboard – Black x1
• SATA 6Gb/s Cables x2
• Asus Wi-Fi Q-Antenna x1
• M.2 Rubber Package x1
• Screw Packaging for M.2 SSD x2
• Quick Start Guide x1
