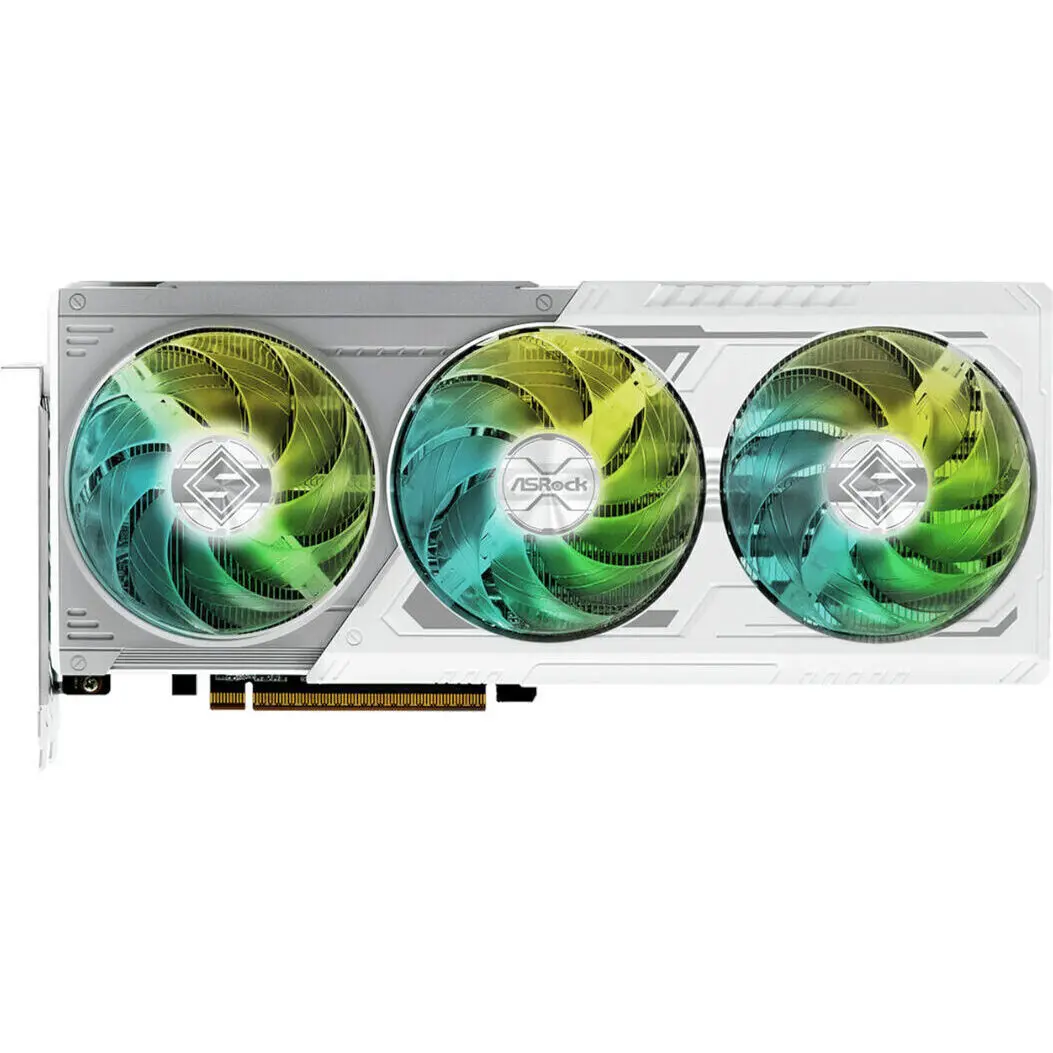

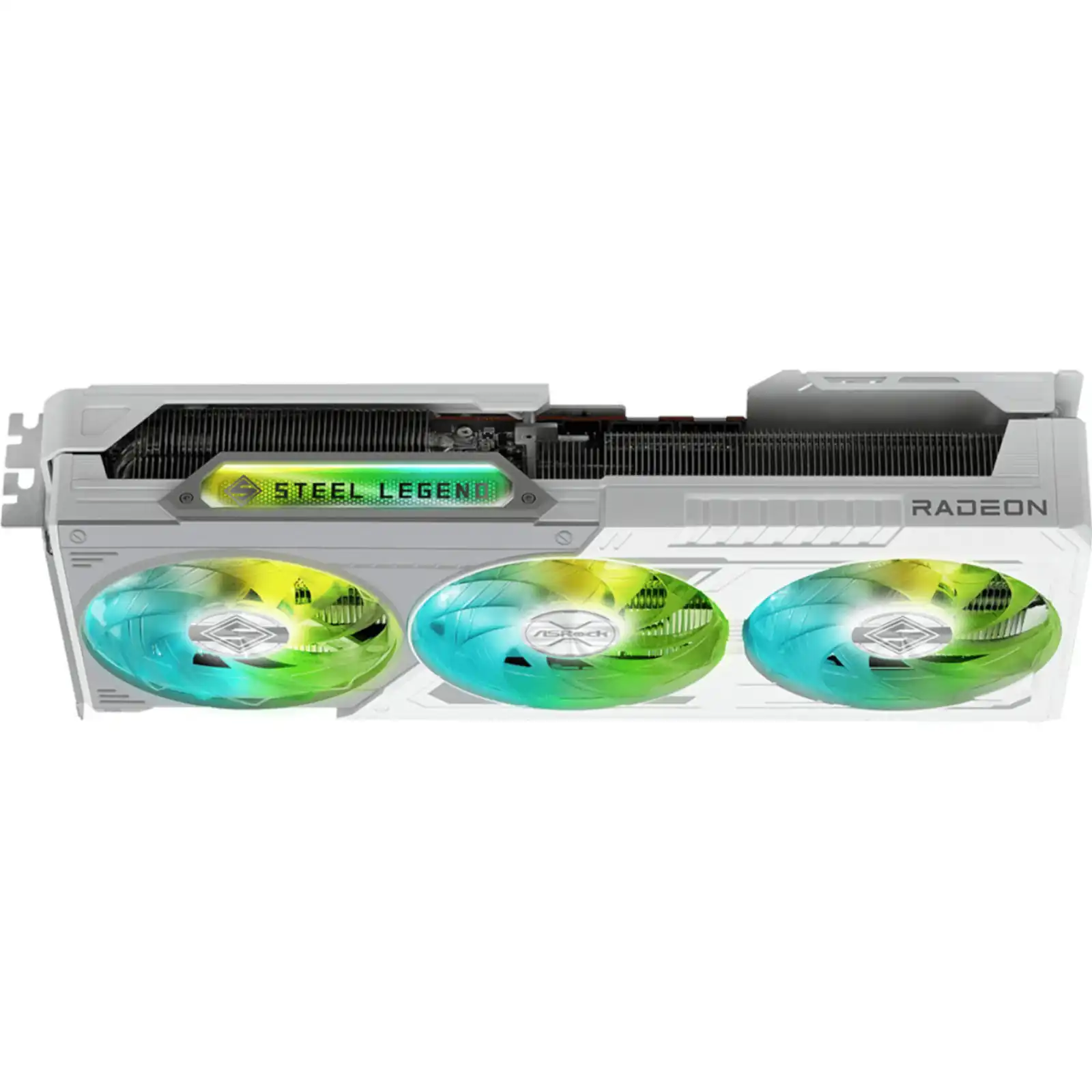

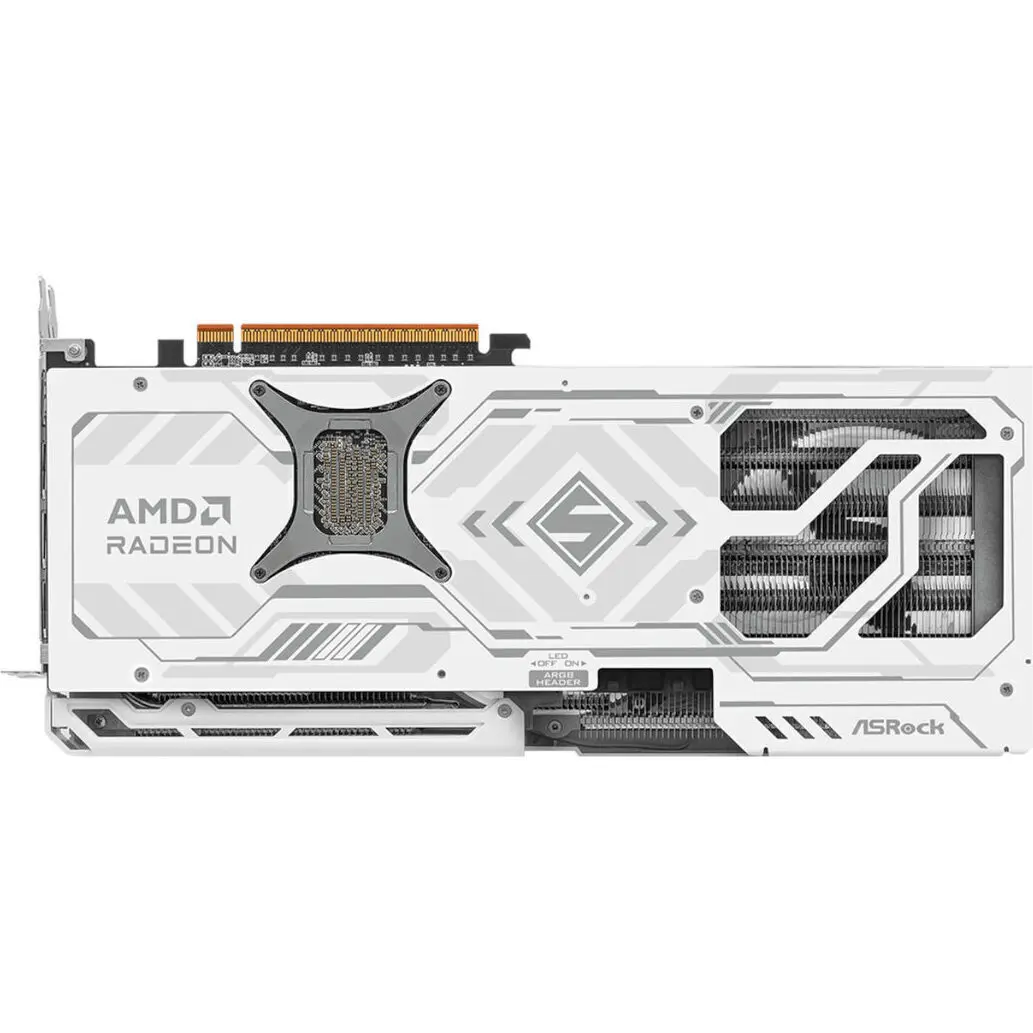

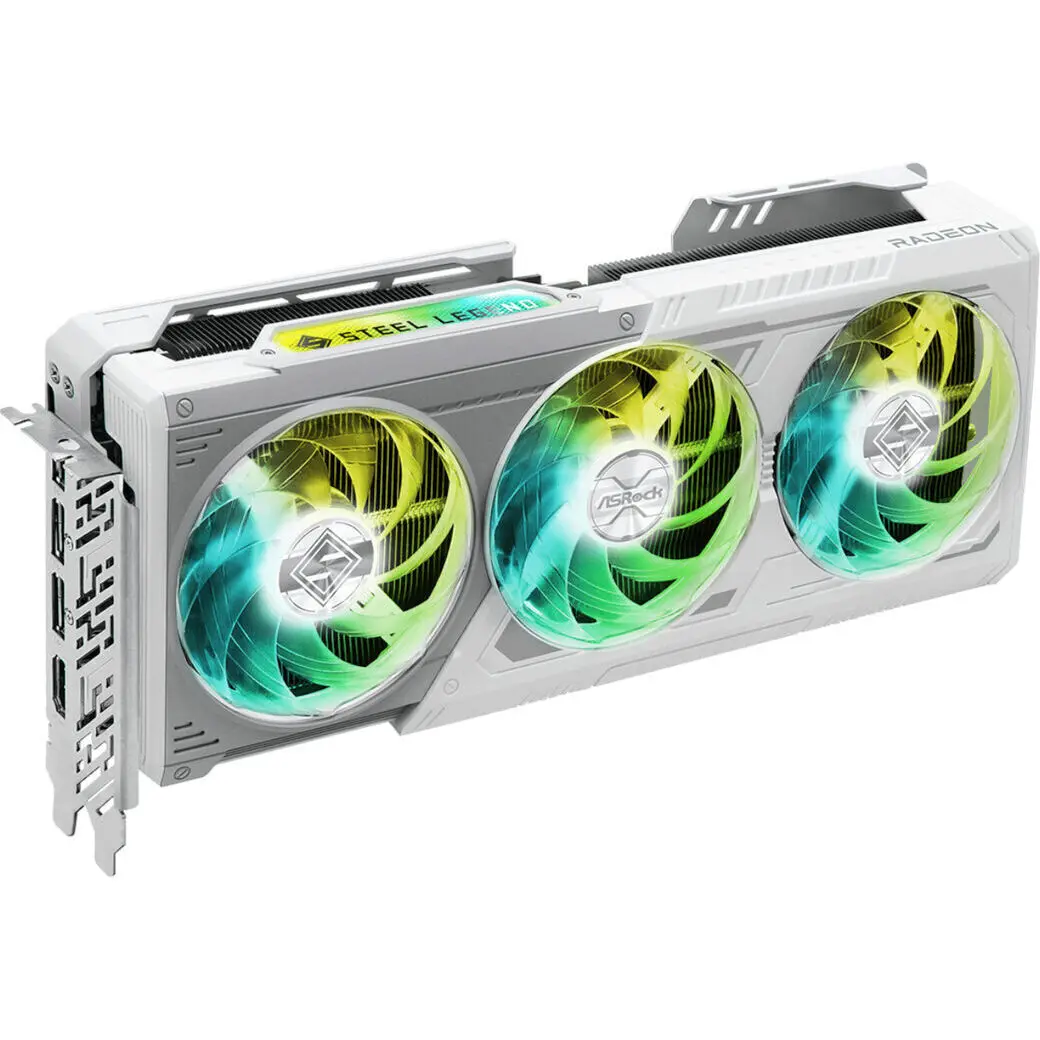

The ASRock AMD Radeon RX 9070 XT Steel Legend 16GB is a powerful and visually striking graphics card designed for gamers and creators who demand top-tier performance and aesthetics. Built on the AMD RDNA™ 4 architecture, this GPU delivers exceptional frame rates at 4K and beyond, thanks to its 64 compute units, third-gen ray tracing, and AI acceleration technologies. Equipped with 16GB of GDDR6 memory on a 256-bit bus, it ensures high-speed data processing for smooth, immersive gaming experiences.
A defining feature of the Steel Legend is its customizable ARGB lighting, which allows users to create stunning, synchronised light effects through ASRock’s Polychrome SYNC. The ARGB header expands customization further, enabling the connection of additional ARGB devices for a rich and vivid lighting setup. For those who prefer a stealthier look, the lighting can be switched off with ease, providing flexibility to match any setup.
Cooling is optimized with a triple-fan design, ensuring efficient heat dissipation for sustained peak performance. ASRock’s Striped Ring Fans increase lateral intake and improve airflow, while V-shaped cutting fins and air vents guide air through the reinforced metal frame and stylish backplate, further enhancing cooling efficiency. Additionally, the premium thermal pads, precision-mounted heatsink, and consolidated heat pipes ensure optimal contact and heat transfer, keeping the GPU cool even under intense gaming loads.
Built with durability in mind, the reinforced metal frame prevents PCB bending, maintaining the structural integrity of the graphics card over time. The dual 8-pin power connectors and PCIe 5.0 support ensure high-speed data transmission and reliable power delivery. With DisplayPort 2.1a and HDMI 2.1b outputs, the RX 9070 XT Steel Legend is ready for multi-display setups and next-gen high-resolution gaming. Combining raw power, stunning aesthetics, and premium cooling, this GPU is a legendary choice for any high-performance rig.
FEATURES:
- Boost Clock: Up to 2970MHz / 20Gbps
- Game Clock: 2400MHz / 20Gbps
- 16GB GDDR6 on 256-bit Memory Bus
- AMD RDNA™ 4 Architecture
- 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- PCI® Express 5.0 Support
- 2x 8-pin Power Connectors
- 3x DisplayPort™ 2.1a, 1x HDMI™ 2.1b
- Polychrome SYNC
- Triple Fan Design
- Stylish Metal Backplate
- Striped Ring Fan
- Reinforced Metal Frame
SPECIFICATIONS:
- Graphics Engine: AMD Radeon™ RX 9070 XT
- Bus Standard: PCI® Express 5.0 x16
- DirectX: 12 Ultimate
- OpenGL: 4.6
- Memory: 16GB GDDR6
- Engine Clock:
- Boost Clock: Up to 2970 MHz
- Game Clock: 2400 MHz
- Stream Processors: 4096
- Memory Clock: 20Gbps
- Memory Interface: 256-bit
- Resolution: Digital Max Resolution: 7680 x 4320
- Interface:
- 3x DisplayPort 2.1a
- 1x HDMI 2.1b
- HDCP: Yes
- Multi-view: 4
- Recommended PSU: 800W
- Power Connector: 2x 8-pin
- Colour: Silver
- Product Dimensions: 29.8 x 13.1 x 5.8 cm
- Product Weight: 1155g
WHAT’S IN THE BOX:

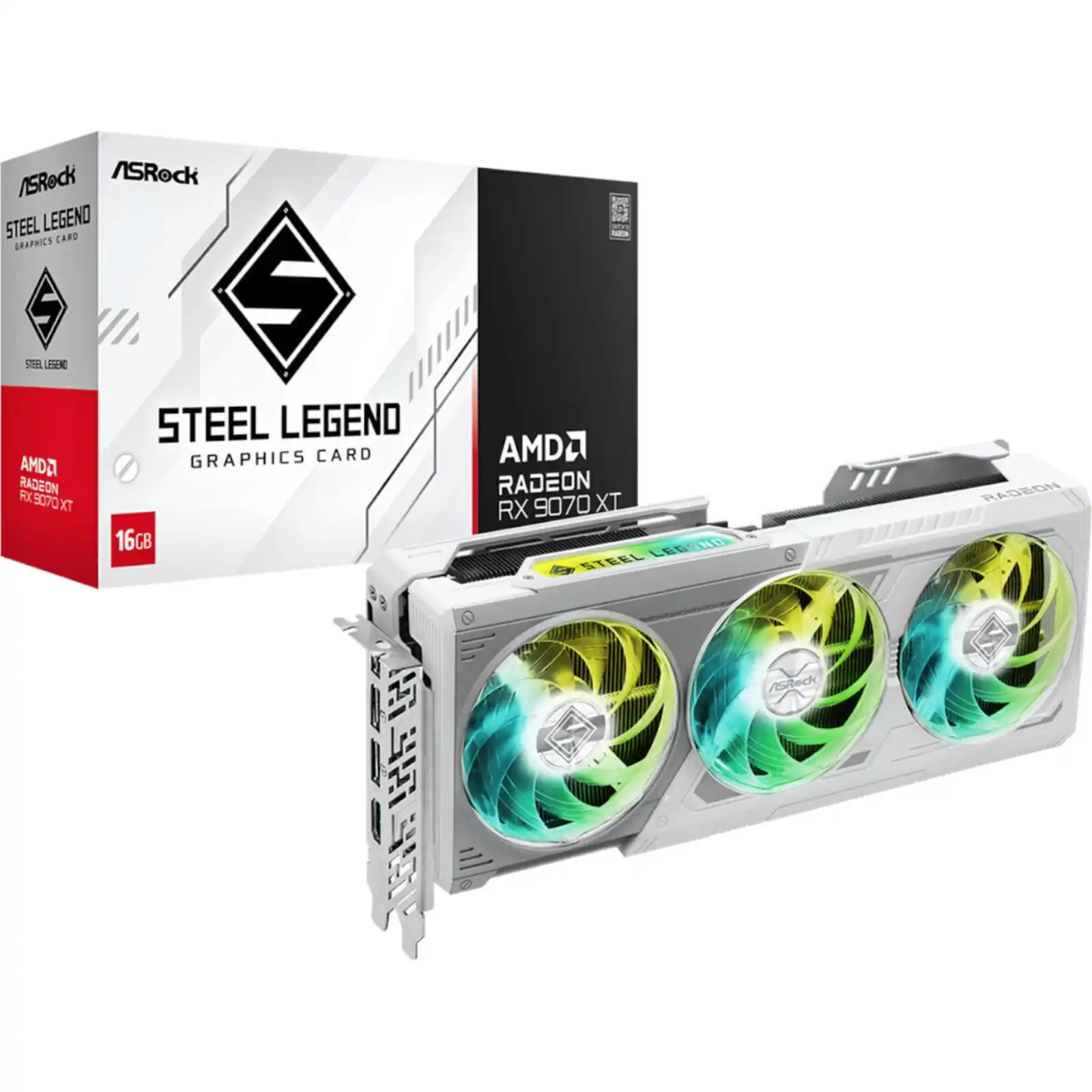

- ASRock AMD Radeon RX 9070 XT Steel Legend 16GB Graphics Card x1
