General Specifications
Name

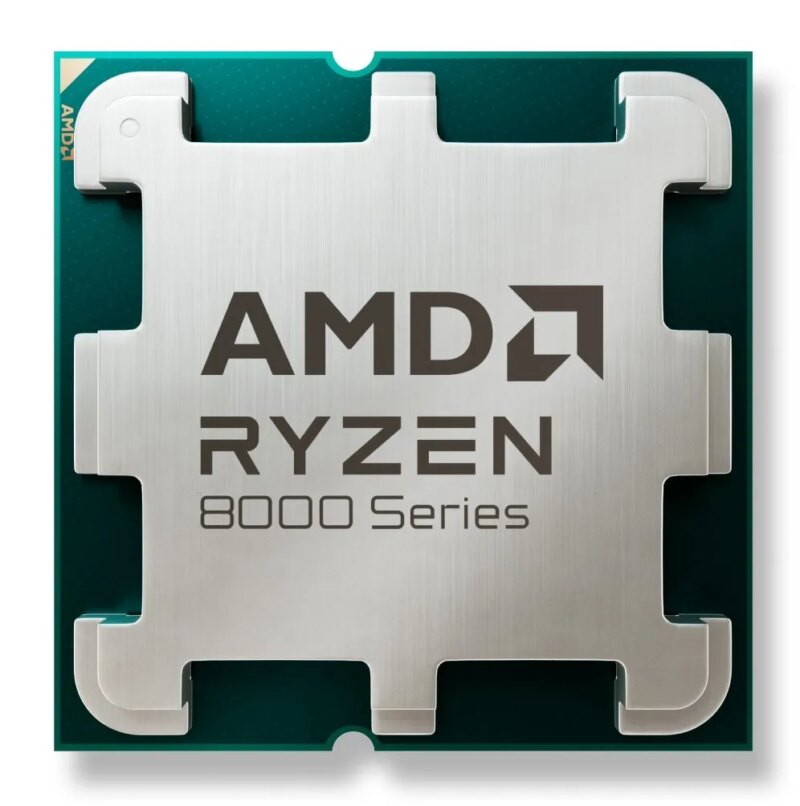

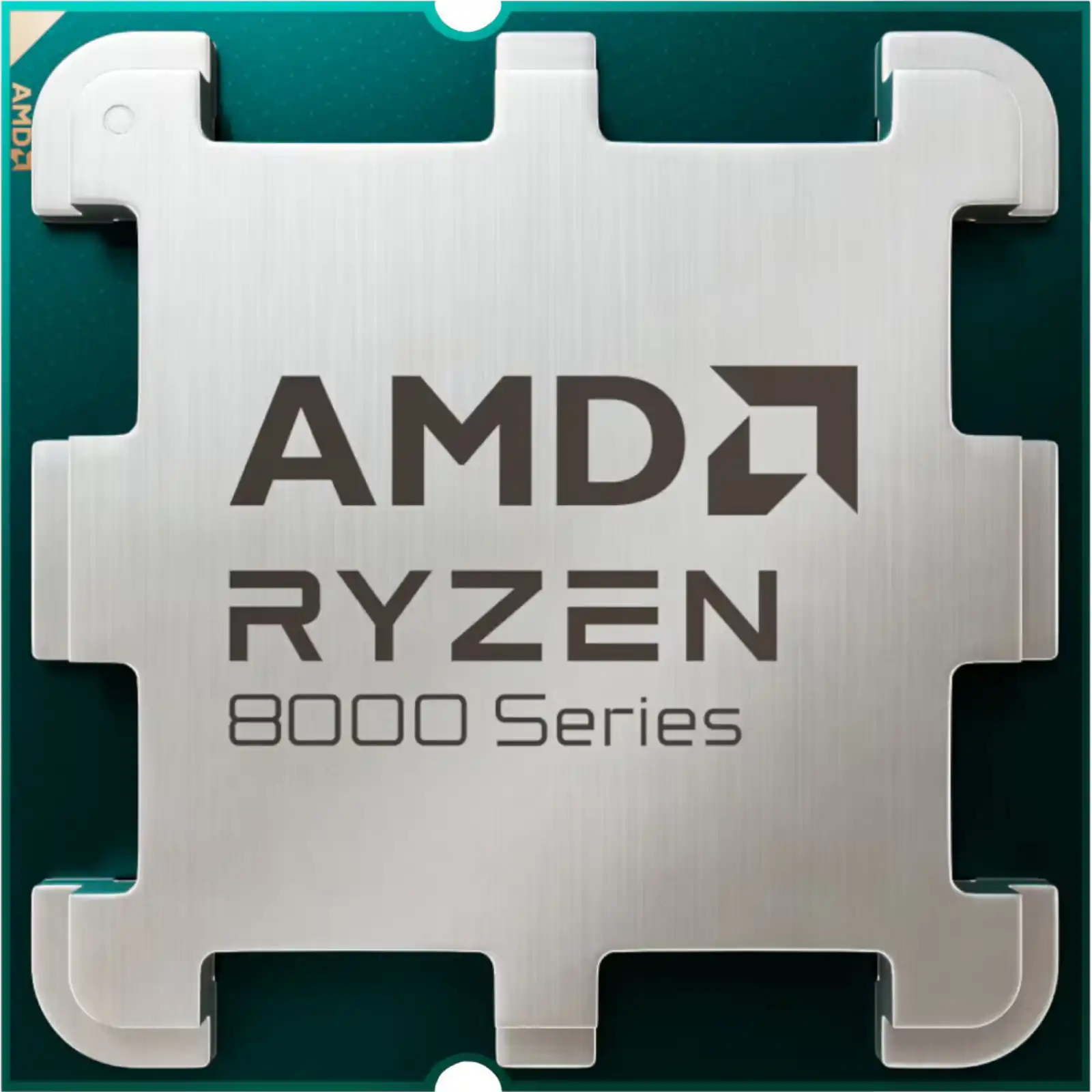

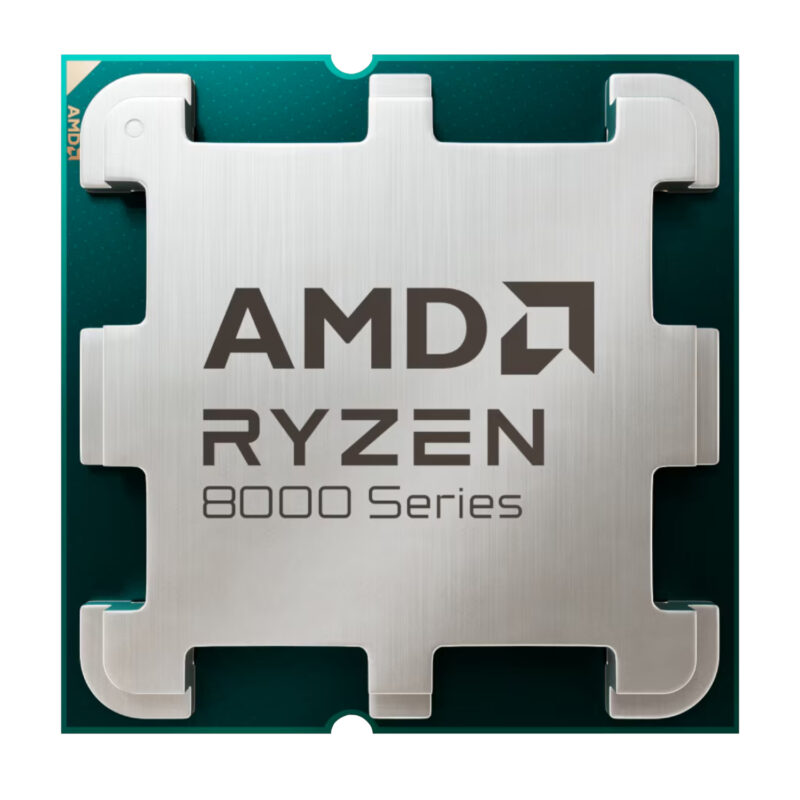

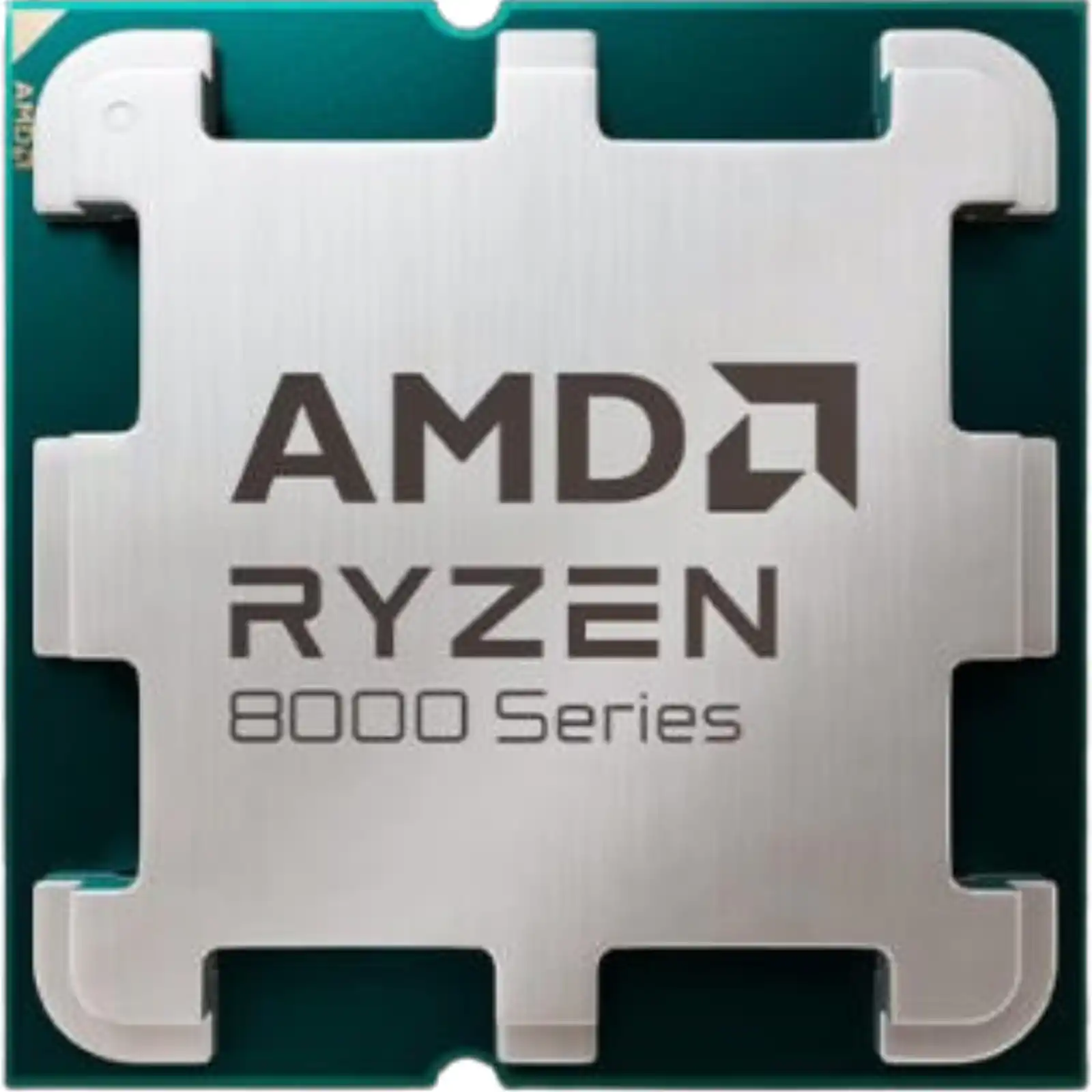

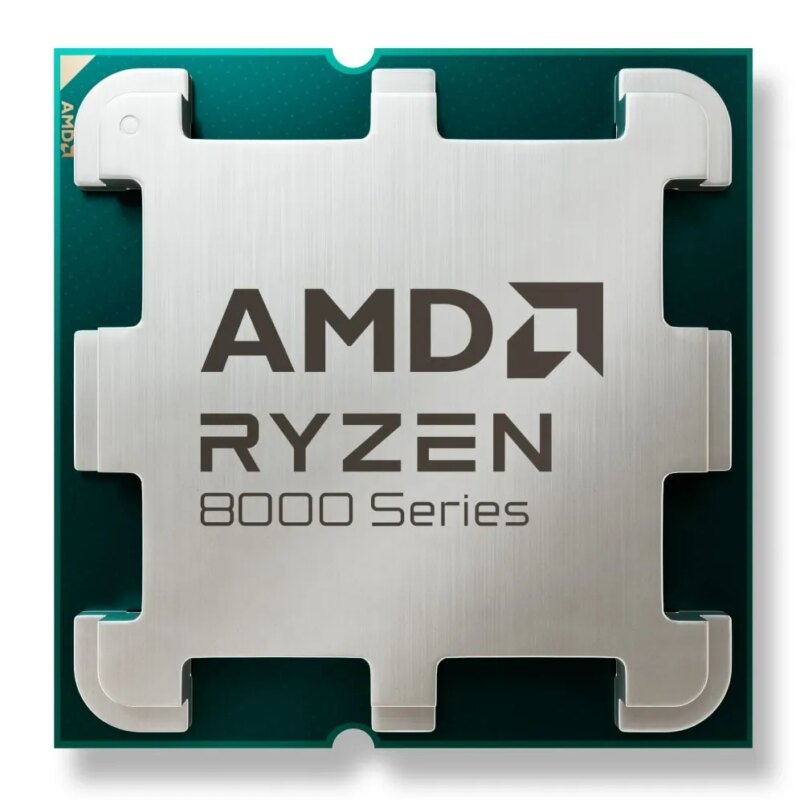

AMD Ryzen™ 7 8700F
Family
Ryzen
Series
Ryzen 8000 Series
Form Factor
Desktops
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
Phoenix
Architecture
Zen 4
# of CPU Cores
8
Multithreading (SMT)
Yes
# of Threads
16
Max. Boost Clock
Up to 5 GHz
Base Clock
4.1 GHz
L2 Cache
8 MB
L3 Cache
16 MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 4nm FinFET
CPU Compute Die (CCD) Size
178mm²
Package Die Count
1
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4A, x86-64
Max. Operating Temperature (Tjmax)
95°C
Launch Date
04/01/2024
*OS Support
Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
Native USB 4 (40Gbps) Ports
2
Native USB 3.2 Gen 2 (10Gbps) Ports
2
Native USB 2.0 (480Mbps) Ports
1
PCI Express® Version
PCIe® 4.0
Native PCIe® Lanes (Total/Usable)
20, 16
NVMe Support
Boot, RAID0, RAID1
System Memory Type
DDR5
Memory Channels
2
Max. Memory
256 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
Graphics Capabilities
Graphics Model
Discrete Graphics Card Required
AMD SmartAccess Memory
Available
AI Engine Capabilities
Brand Name
AMD Ryzen™ AI
AMD Ryzen™ AI
Available
Performance
Up to 16 TOPS
Product IDs
Product ID Boxed
100-100001590BOX, 100-100001590CBX
Product ID Tray
100-000001590 (AM5)
Product ID MPK
100-100001590MPK, 100-100001590CPK
Security, Virtualization, and Manageability
AMD Enhanced Virus Protection (NX bit)
Yes
