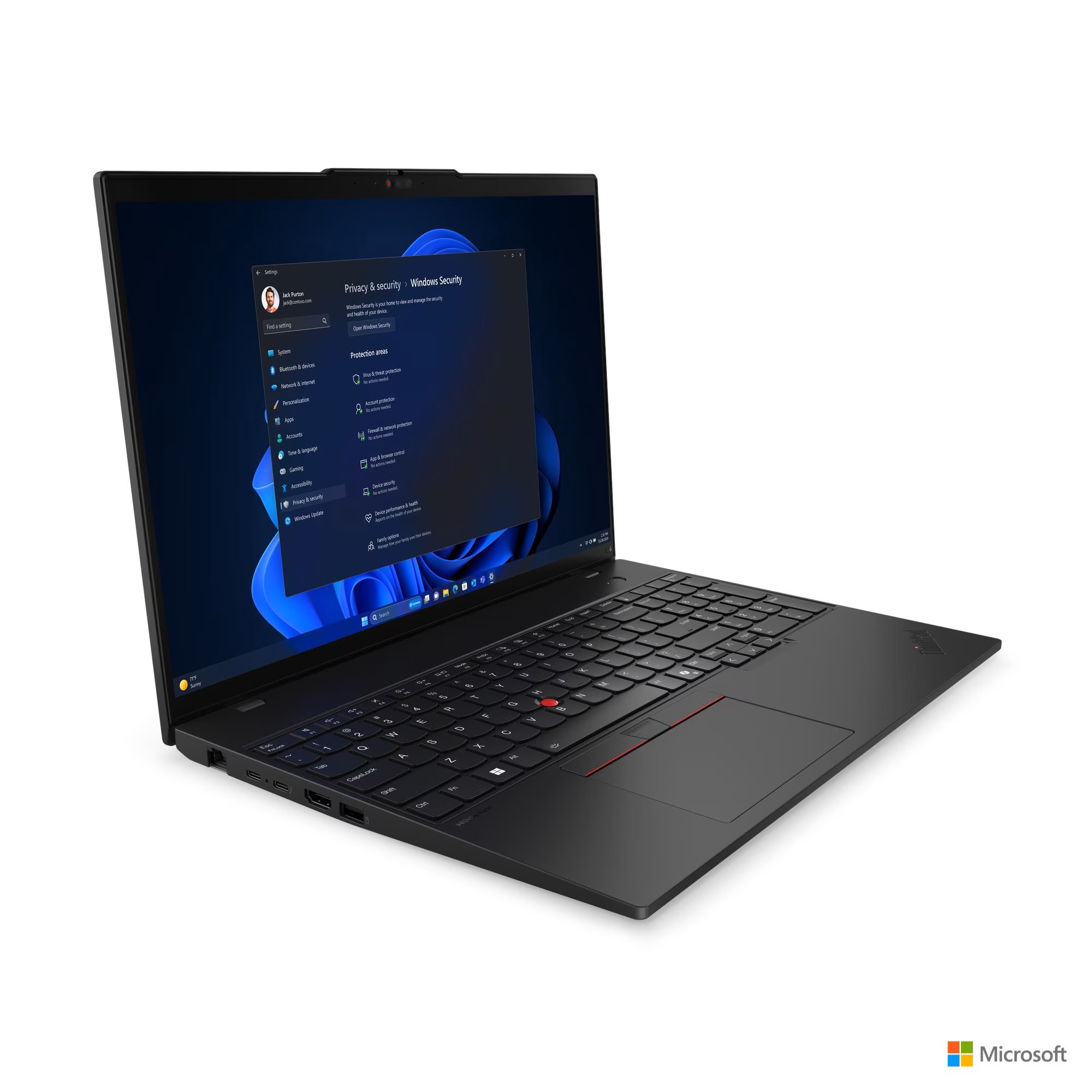

ThinkPad L16 Gen 1 (Intel). Full manufacturer specification, taken from Lenovo’s own Product Specifications Reference.
Technical Specifications
| Attribute | Specification |
|---|---|
| Processor | Intel Core™ Ultra 7 155U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB Intel® Smart Cache |
| AI PC Category | AI PC |
| NPU | Integrated Intel® AI Boost, up to 11 TOPS |
| Graphics | Integrated Intel® Graphics |
| Chipset | Intel® SoC Platform |
| Memory | 1x 8GB SODIMM DDR5-5600 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-5600 |
| Storage | 1TB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0 |
| Storage Slot | One M.2 2280 PCIe® 4.0 x4 slot |
| Max Storage Support | One drive, up to 2TB M.2 2280 SSD |
| Optical | None |
| Card Reader | No Card Reader |
| Audio Chip | High Definition (HD) Audio, Senary SN6147 codec |
| Speakers | Stereo speakers, 2W x2, Dolby Audio™ |
| Microphone | 2x, Array |
| Camera | 5.0MP + IR Discrete with Privacy Shutter |
| Battery | 46.5Wh |
| Power Adapter | 65W USB-C® (3-pin) |
| Display | 16" WUXGA (1920×1200) IPS 300nits Anti-glare, 45% NTSC |
| Touchscreen | None |
| Screen-to-Body Ratio | 87% |
| Pen | Pen Not Supported |
| Keyboard | Backlit, English (EU) |
| Dimensions (WxDxH) | 357.2 x 253.4 x 20.78 mm (14.06 x 9.98 x 0.82 inches) |
| Weight | Starting at 1.77 kg (3.90 lbs) |
| Case Color | Black |
| Case Material | PC-ABS (Top), PC-ABS (Bottom) |
| Operating System | Windows® 11 Pro, English |
| Bundled Software | None |
| WLAN + Bluetooth | Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.3, vPro® |
| WWAN | Quectel EM061K-GL, 4G LTE CAT6, with Embedded eSIM |
| SIM Card | No physical SIM card inbox |
| Ethernet | 100/1000M (RJ-45) |
| NFC | No NFC |
| Standard Ports | 1x USB-A (Hi-Speed USB / USB 2.0) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2), with USB PD 3.0 and DisplayPort™ 1.4 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1 1x HDMI® 2.1, up to 4K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) |
| Optional Ports (configured) | 1x Nano-SIM Card Slot |
| Docking | Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® L16 Gen 1 (Intel®) |
| ThinkShield | ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit here |
| Security Chip | Discrete TPM 2.0 Enabled |
| Physical Locks | Kensington Nano Security Slot™, 2.5 x 6 mm |
| Smart Card Reader | No Smart Card Reader |
| Fingerprint Reader | Touch Style, Match-on-Chip, Integrated in Power Button |
| Other Security | Camera privacy shutter IR camera for Windows® Hello (facial recognition) |
| System Management | Non-vPro® |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Onsite upgrade from 1Y Courier/Carry-in ESS (CPN) |
| Bundled Accessories | None |
| Green Certifications | ENERGY STAR® 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10 |
| Mil-Spec Test | MIL-STD-810H military test passed |
| Other Certifications | – |
